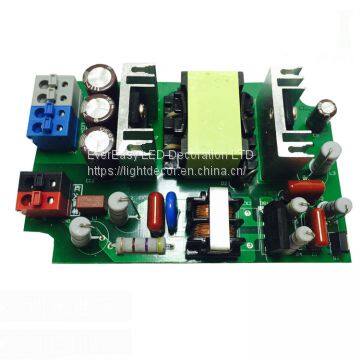

250mA-600mA DALI PUSH Dimmable LED Driver 30W Over Temperature Protection LED dimmer
Description:
Built-in DALI interface.
Support Push dimming function.
Multi output current 250mA to 700mA selectable via DIP switch.
Memory function: Lights returns to previous dimming level when switch off and on again, even at mainsrestores.
No need additional synchrony wire, up to 15pcs drivers should be controlled by one dimmer.
Maximum length of the cable, from push button to last driver is 20m
Press-in terminals in primary and secondary side, easy assembly
Protection: Short circuit / Over voltage / Over temperature
5 years guaranty
Specifications
|
INPUT |
Input voltage |
220-240Vac |
Input frequency |
50-60Hz |
|
Input current |
0.16A max |
|
Power factor |
≥0.90 |
|
Efficiency(Note1) |
≥85% |
|
Leakage current |
＜0.5mA/240Vac |
|
|
OUTPUT |
Output current and load |
250mA 16-60Vdc 15W max, 350mA 16-60Vdc 21W max 400mA 16-60Vdc 24W max, 450mA 16-60Vdc 27W max 500mA 16-58Vdc 29W max, 550mA 16-55Vdc 30W max 600mA 16-50Vdc 30W max, 700mA 16-43Vdc 30W max |
Output load range |
1x30W max |
|
Current accuracy |
±5% |
|
Dimming mode |
DALI, PUSH |
|
|
ENVIRONMENT |
Working temp.(Ta) |
-20~50℃ |
Surface temp.(Tc) |
85℃max |
|
Working humidity |
20~90%RH non-condensing |
|
Storage temp. |
-40~80℃ |
|
Life time |
≥50000hours |
|
|
PROTECTION |
Isolation class |
Class II, SELV |
Protection class |
IP20 |
|
Short circuit |
Protection type; auto rest |
|
Over voltage |
Protection type; auto rest |
|
Over temperature |
Protection type; auto rest |
|
|
SAFETY&EMC |
Safety |
EN61347-1 EN61347-2-13 |
EMC |
EN55015, EN61000-3-2ClassC |
|
EN61000-3-3, EN61547 | ||
DALI interface |
IEC62386-101, IEC62386-102, IEC62386-207 |
|
Approvals |
CE |
|
Withstand voltage |
IN-OUT:3.75KVAC/5mA/1min |
|
|
NOTE |
1, Efficiency is measured at 550mA/55Vdc output set by DIP switch 2, All parameters not specially mentioned are measured at 230Vac input, rated load and 25℃of ambient temp. |
|
Mechanical Specification:
Dimming Operation:
PUSH Dim
Short push (
Short push (0.1~1sec): Switch on or off.
Long push (>1sec): Dimming up or down, dimming automatically stops at minimum or maximum value.
