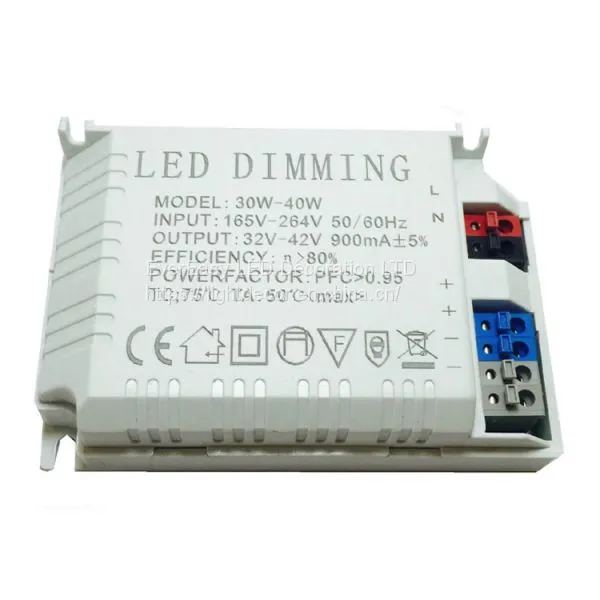

LED Strip dimmer 30W PWM Dimmable LED Driver Constant Current With SELV
Description:
1, Compact design 103x67x22mm,easy to be installed into metal box
2, Quick wire by press-in type input and output terminals, convenient for assemble.
4, Support load as low as 3Vdc, wide range output can dim 1pcs LED.
5, Different luminaries can be applied with this model due to its multi-output current design from 250mA to 750mA.
6, Jumper design for switching different dimming modes, it is very convenient to select suitable dimming function as you required.
7, Three types of dimming mode, PUSH in primary, PUSH dimming in secondary and 1-10V dimming. You can select dimming modes per jumper
8, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.
9, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.
10, Maximum length of the cable, from switch to last driver is 20m.
11, Factory setting: 100% dimming level and 250mA output.
12, Reset the LED diver easily by a jumper.
13, Semko certified,esp. for Scandinavian market..
14, 50,000 hours life time
Applications:
For led panel light, led highbay, led strip etc.
Synchronization:
For the resynchronization to work correctly when more than one driver is connected to the same
push button, follow steps of below after the drivers are connected:
A) Press push button for more than one second, followed by a short push (<1s), now, led light
switches off.
B) Do a long push, the system will be resynchronized.
Dimming Operation:
A) 1-10V Dim
Using the push dimming will make 1-10V dimming inactivated. The driver has to be reset to active the 1-10V dimming function again.
B) PUSH Dim
Short push (<0.1sec): Ignore, to avoid reaction on AC spike.
Short push (0.1~1sec): Switch on or switch off.
Long push (>1sec): Dimming up or down, dimming level automatically stops at minimum or maximum value.
