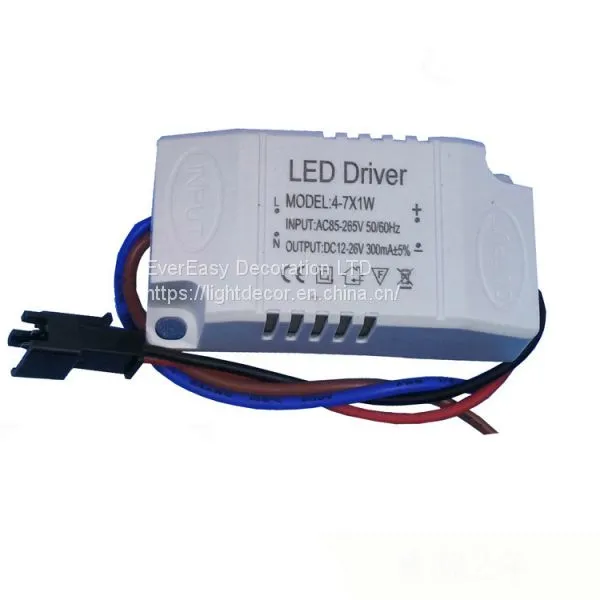

Wide voltage LED power supply LED light power 4W5W6W7W LED blub driver
Custom label and Custom specifcation supported!
Product Features:
1. Isolation, high efficiency, high stability.
2. Open circuit protection, short circuit protection, overload protection, overheat protection
3. be careful of insulation if you put it in metal shell
Technical Parameters:
Input voltage: 85-265V Grid frequency: 50 / 60Hz
Inrush current: 2A (500nS)
Power Factor:> 0.93 Power Efficiency:> 75%
Output voltage: 12-23V Output current: 280-300mA
High temperature protection:
High temperature protection: When the internal temperature is too high, the power supply will cut off the output and return to normal after cooling down.
Application environment
Ambient temperature: -20 ℃ ~ +65 ℃ Humidity: 20 ~ 50 RH
Mechanical parameters
Dimensions: 30.5 * 17 * 14MM
Input wiring: brown L blue N
Output wiring: red + black -
For custom brand and custom packaging,min order 2000pcs.
1 Support both small run and large promotional orders.
2 Work with various shipping methods to meet up your request,ecnomic,fast
