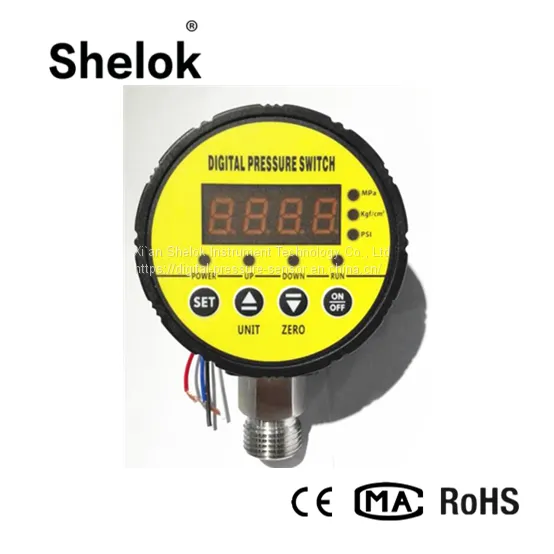

New Design Digital Low Cost Gas Pressure Gauge With Good Quality

Xi`an Shelok Instrument Technology Co., Ltd
New Design Digital Low Cost Gas Pressure Gauge With Good Quality thumbnail-1
New Design Digital Low Cost Gas Pressure Gauge With Good Quality thumbnail-2
New Design Digital Low Cost Gas Pressure Gauge With Good Quality thumbnail-3
New Design Digital Low Cost Gas Pressure Gauge With Good Quality thumbnail-4
New Design Digital Low Cost Gas Pressure Gauge With Good Quality photo-1
New Design Digital Low Cost Gas Pressure Gauge With Good Quality photo-2
New Design Digital Low Cost Gas Pressure Gauge With Good Quality photo-3
New Design Digital Low Cost Gas Pressure Gauge With Good Quality photo-4
US$ 60 - 180 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
SLK-SP-102C
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
All port
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shelok
Place of Origin China
Model Number SLK-SP-102C
Product Application of New design digital low gas pressure gauge with good quality

SP-102C has two group independent relay outputs. Each output has a normally open and normally closed signal, and the hysteresis can be set independently. With built-in high-precision pressure legend, some models can do 4 ~ 20mA / rs485 output.


Application of New design digital low gas pressure gauge with good quality:
·Equipment automation
·Engineering machinery
·Medical equipment
·Pumps and compressors
·Energy and heat supply
·Pressure laboratory
·Hydraulic and pneumatic systems
·Instead of mechanical pressure switch
·Instrumentation matching machinery and electronics industry

Feathers of New design digital low gas pressure gauge with good quality :
1)100mm, 80mm, 60mm dial diameter
2)4~20mA or RS485 optional
3)LCD, LED, digital display
4)Import pressure measurement components, stable and reliable
5)Axial / radial installation of two ways to facilitate the installation site
6)two group switch signal output, each group normally open normally closed, and independent hysteresis

Specification of pressure transmitter
Range
Gage pressure:
0~1KPa, 100Kpa, 1MPa...100MPa
Output signal
Analog: 4~20mA, 0~10V, 0~5V, 1~5V
Negative pressure:
0~-1KPa...-100KPa;
Absolute pressure: 0~50KPa,100KPa,1MPa...3.5MPa;
Digital: RS485, Hart
Compound pressure:
-1KPa~1KPa, -100KPa~20MPa;
Reliability
≤±0.2%FS per year
Accuracy
≤±0.25%FS, ≤±0.5%FS
Over -load pressure
≤10MPa: 200% of FS;
 >10MPa: 150% of FS
Ambient temp.
-40~+85°C
Medium temp.
-40~+85°C
Compensation temp.
-10~+60°C
Medium
Gas or water compatible with 316SS
Power supply
9~24VDC, 220VAC, 380VAC
Alarm set
FS; Double group relay signal
(open and close)
Sampling rate
5 times/sec.
Insulation resistance
100MΩ, 500VDC
Load capacity
220VAC 5A 380VAC 3A 24VDC 5A
Electrical protection
Reverse polarity protection and anti - electromagnetic interference
Response time
≤2ms
Process connection
M20*1.5 male thread, G1/2 male thread, Others
Electrical connection
Fixed 8-core cable direct outlet with 30m standard length
Weight
0.8KG
Housing material
304 SS
Contact material
316L SS


Product Tags: gas pressure gauge , low cost gas pressure gauge , digital low cost gas pressure gauge
