Description of spiral tube 40mm oil back connection pressure gauge mpa kg and psi
YTFN stainless steel pressure gaugemanufactured by Xian Shelok Instrument Technology Co.,Ltd.It consists of a pressure guiding system (including joints, spring tubes, current limiting screws, etc.), a gear transmission structure, a display device (pointer and dial), and an outer casing (including a case, a cover, a window, etc.). The outer casing is airtight and can effectively protect the internal parts from the environment and dirt.
Specification of spiral tube 40mm oil back connection pressure gauge mpa kg and psi
Accuracy | 2.5, 1.6, 1.0 (other can be customized) | Measurement range | -0.1-0-100Mpa(other can be customized) |
Ingress protection | IP65(higher grade can be customized) | Pressure unit | MPa,KPa,bar,mmHG,inHg, Kg/cm²,mmH2O,mmHg |
Model | SLK-YTFN | Dial diameter | 60,100,150mm(other can be customized) |
Element material | SUS316, SUS316L, 1Crl8Ni9Ti(other can be customized) | Case Material | Stainless Steel SUS 304(other can be customized) |
Thread | M20 * 1.5,G3 / 8",G1/2(other can be customized) | Ambient temperature | - 40 ~ 70° C,0-600 ° C |
Type | Dry,liquid filled | Mount | lower,back |
Movement | 304SS,copper alloy | Thread material | 304SS,316L |
Pressure static load | used to measure the upper limit of 3 / 4 alternating load,used to the upper limit of measurement 2/3 the scale value | ||

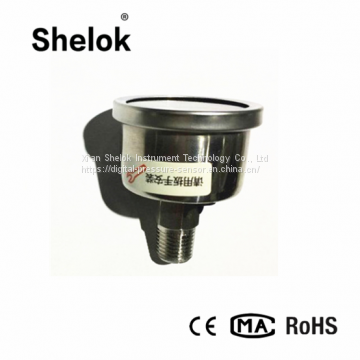

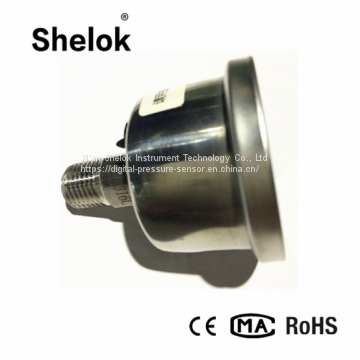

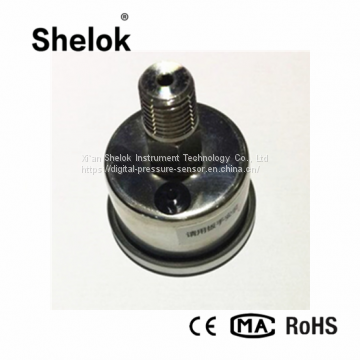

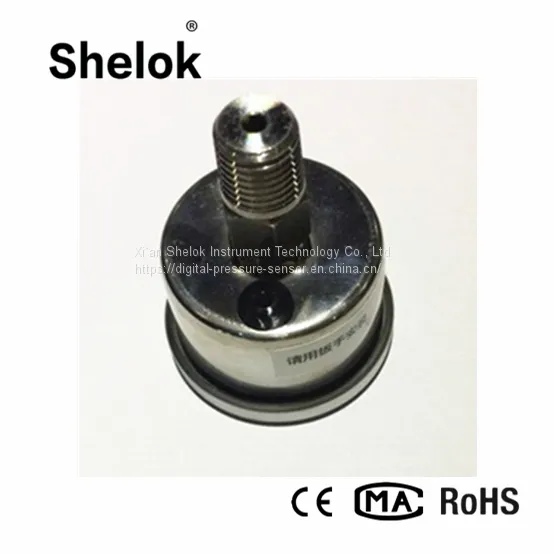

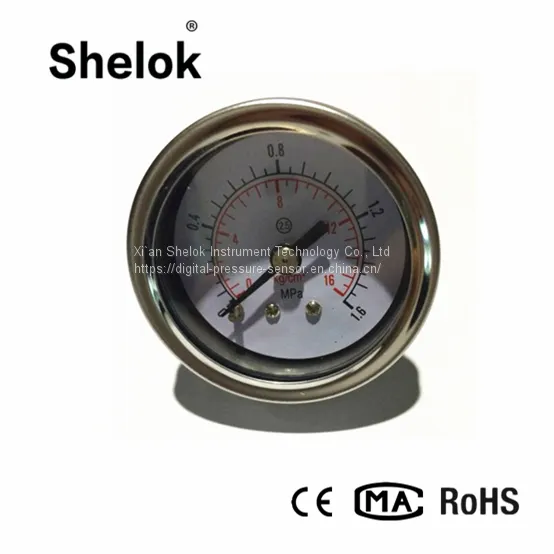

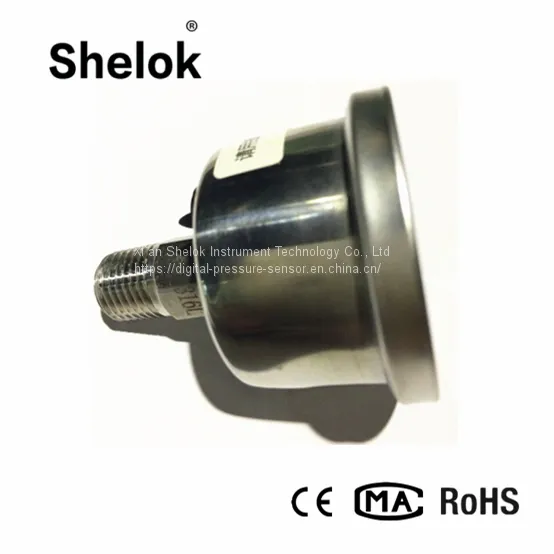

Detailed Images of spiral tube 40mm oil back connection pressure gauge mpa kg and psi
Applications of spiral tube 40mm oil back connection pressure gauge mpa kg and psi
Industrial, petroleum, chemical, heating systems, piping, instrumentation, pneumatic line and auxiliary equipment.
Selection Guide of spiral tube 40mm oil back connection pressure gauge mpa kg and psi
Y 1 2 - 3 4 / 5 / 6 / 7 / 8 / 9
Y - Pressure measuring instrument
1 - Element type:
T - bourdon tube
2 - Function:
Z - Resistance
F - Antisepsis
FN - Antisepsis Heat shock
XC - Magnetic snap action electric contact
SZ - Three pointer
3 - Dial diameter:
40 - 40mm
60 - 60mm
100 - 100mm
150 - 150mm
4 - Case material:
H - All stainless steel
S - all plastic
B - explosive-proof
5 - Mounting
Z - Axial(Back)
J - Radial(Bottom)
ZT - Axial(Back connection with edge)
JT - Radial(Bottom connection with edge)
6 - Temperature
S - Standard(-40~70℃)
H - High temperature( 0~200℃)
7 - Wetted part material:
316L - Stainless steel
M - Monel metal
HC - Hastelloy(H276C)
Ta - Tantalum
FP - F4 Plated
FL - F4 Lining
8 - Measuring range:
-0.1~0,0.06,0.15,0.3MPa
-0.1~0.5,0.9,1.5,2.4MPa
0~0.1,0.16,0.25,0.4,0.6MPa
0~1,1.6,2.5,4,6MPa
0~10,16,25,40,60,100MPa
9 - Connection:
Thread
Flange(Standard,type,material)
10 - Movemetnt:
C - Coopper alloy
S - Stainless steel
