Description of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge
Capsule Pressure Gauges use diaphragm as a sensitive element to measure micro pressure. Measurement corrode copper alloy, non-explosive gas micro-pressure and negative pressure .Widely used in ventilatio boilers, other similar devices on gas piping, combustion devices.
Capsule Pressure Gauges measuring range -80 ~ 60000Pa, but need to use different ranges of diaphragm pressure gauge.Depending on the pressure, the pressure in -1600Pa ~ 60000Pa suggested the use of disc diaphragm pressure gauge, if the pressure in -80Pa ~ 1000Pa suggested the use of the middle of the rectangular diaphragm pressure gauge, if the pressure in -80Pa ~ 1000Pa suggested the use of the middle of the rectangular diaphragm
pressure gauge.
Structure priciple
Capsule Pressure Gauges consist of the measuring system (including joint, bellows, etc.), transmission (including pull-bar mechanism, gear transmission mechanism),indicating parts (including pointer and dial) and housing (including Case, bushing and tables glass) .Instrument working principle is based on a bellows under pressure measured medium, its free end produce the corresponding elastic deformation and then the transmission gear transmission mechanism and to enlarge the pointer fixed on the gear shaft will be measured by value indicated on the dial.There are zero means you can easily adjust the zero position.
Specification of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge
Accuracy |
2.5, 1.6, 1.0 (other can be customized) |
Measurement range |
-0.1-0-100Mpa(other can be customized) |
Ingress protection |
IP65(higher grade can be customized) |
Pressure unit |
MPa,KPa,bar,mmHG,inHg, Kg/cm²,mmH2O,mmHg |
Model |
SLK-YE |
Dial diameter |
60,100,150mm(other can be customized) |
|
Element material |
316,316L, copper, 1Crl8Ni9Ti(other can be customized) |
Case Material |
Stainless Steel SUS 304,copper(other can be customized) |
Thread |
M20 * 1.5,G3 / 8",G1/2(other can be customized) |
Ambient temperature |
- 25 ~ 55° C |
Type |
Dry,liquid filled |
Mount |
lower,back |
Movement |
304SS,copper alloy |
Thread material |
304SS,316L,copper |
Pressure static load |
used to measure the upper limit of 3 / 4 alternating load,used to the upper limit of measurement 2/3 the scale value |
||

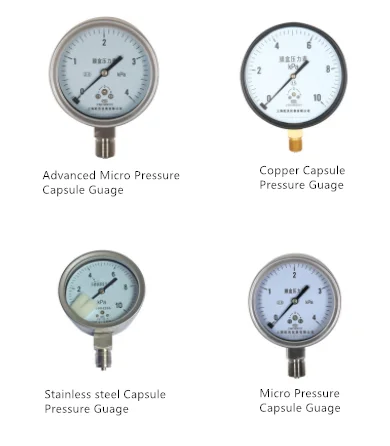

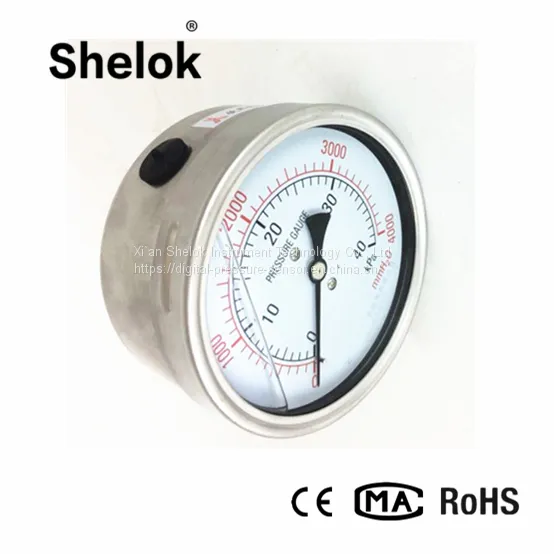

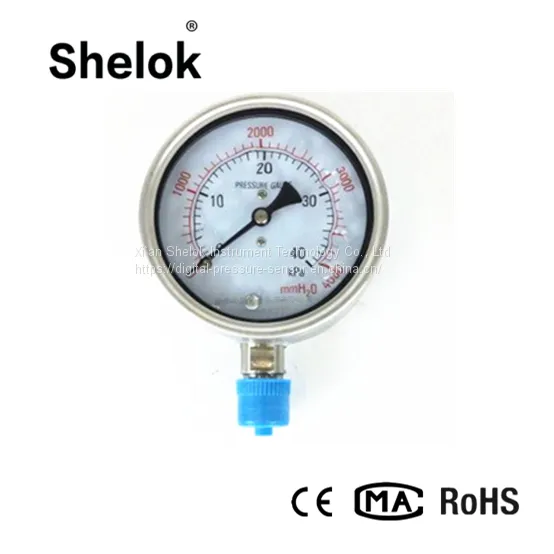

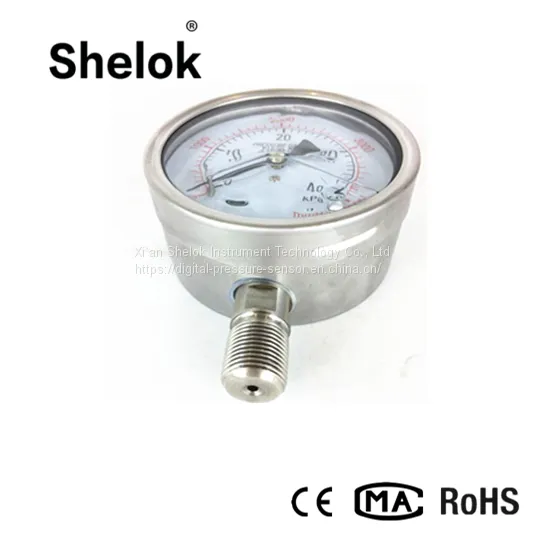

Detailed Images of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge
Applications of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge
Ordinary capsule pressure gauge is suitable for the measurement of copper alloy has no corrosion, no explosion risk of micro pressure and negative pressure;Stainless steel capsule pressure gauge for boiler ventilation and gas medium micro pressure and negative pressure.
Selection Guide of stainless steel kpa mmH2O dual micro vacuum capsule pressure gauge
Y 1 2 - 3 4 / 5 / 6 / 7 / 8 / 9
Y - Pressure measuring instrument
1 - Element type:
E - capsule
2 - Function:
Z - Resistance
F - Antisepsis
FN - Antisepsis Heat shock
XC - Magnetic snap action electric contact
SZ - Three pointer
3 - Dial diameter:
60 - 60mm
75 - 75mm
100 - 100mm
150 - 150mm
4 - Case material:
H - All stainless steel
S - all plastic
B - explosive-proof
5 - Mounting
Z - Axial(Back)
J - Radial(Bottom)
ZT - Axial(Back connection with edge)
JT - Radial(Bottom connection with edge)
6 - Temperature
S - Standard(-40~70℃)
H - High temperature( 0~200℃)
7 - Wetted part material:
316L - Stainless steel
M - Monel metal
HC - Hastelloy(H276C)
Ta - Tantalum
FP - F4 Plated
FL - F4 Lining
8 - Measuring range:
-1.6,2.5,4,6,10,16,25,40,60~0~1.6,2.5,4,6,10,16,25,40,60KPa
-500~0~250,500Pa
9 - Connection:
Thread
Flange(Standard,type,material)
10 - Movemetnt:
C - Coopper alloy
S - Stainless steel
