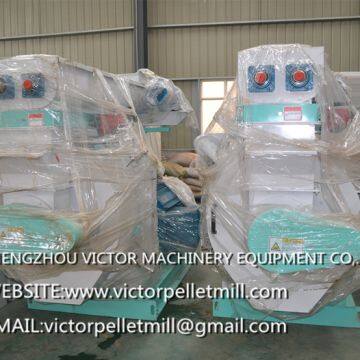

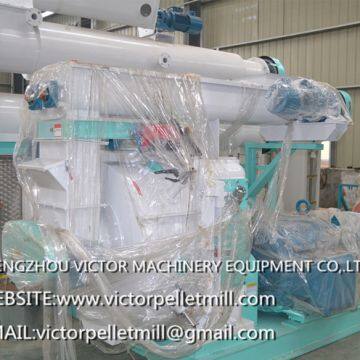

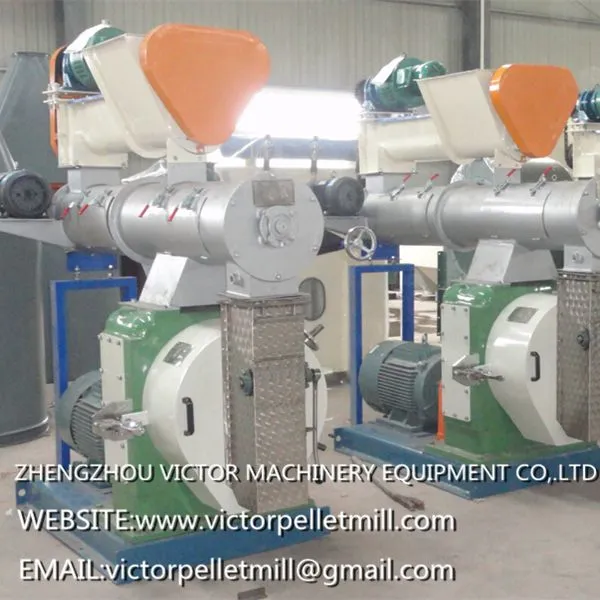

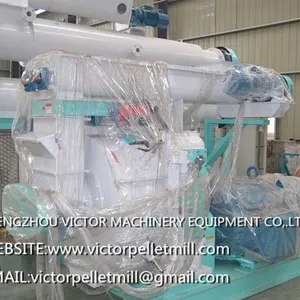

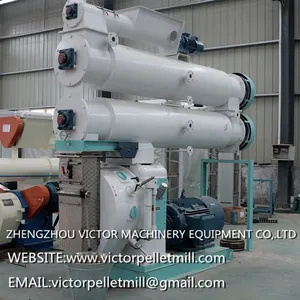

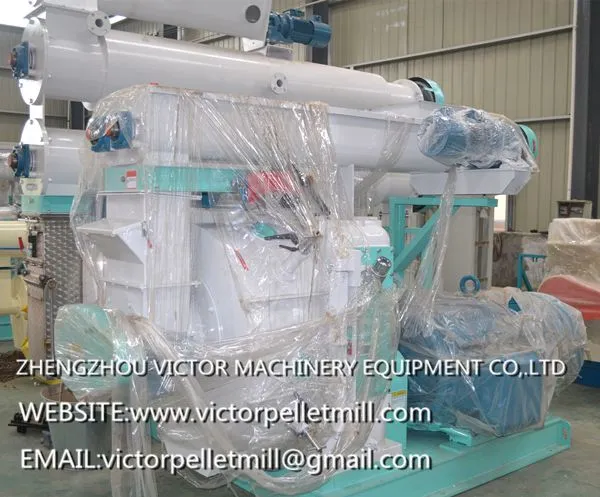

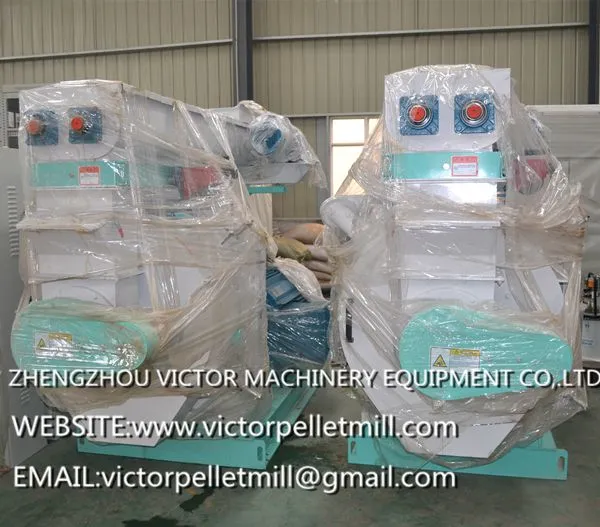

Ring die pellet mill is widely used in pellets making industry and large pellets production line. The rind die pellet mill machine has a wide cylindrical shape and the die is vertical. Due to its high cost and big size, it is not as common as the flat die pellet mill. small ring die pellet mill is usually for making pellets business and other commercial purposes.As a professional Chinese manufacturer and supplier of small ring die pellet mills, apart from the high-quality ring die pellet mills, we also provide ring dies and rollers manufactured by us and specially match our ring die pellet mills. Therefore, you don’t need to worry how to find the suitable dies, rollers and other wearing parts.
The reason is that the main part of this small ring die pellet mill machine is a circular ring, which is called a “die”. and there are 2 rollers inside the ring to rotate and extrude the biomass in the middle to go through the die holes and cylindrical pellets are made.
Technical parameter of ring die pellet machine
Model |
Output |
Power |
Feeding power |
Conditioner power |
Die inner diameter |
Pellet Diameter |
HMK-250 |
0.5–1 t/h |
22kw |
0.55 kw |
2.2 kw |
250 mm |
2–12mm |
HMK-300 |
1–2t/h |
37kw |
0.75kw |
2.2kw |
300 mm |
2–12mm |
HMK-320 |
2–3 t/h |
37 kw |
0.75 kw |
2.2 kw |
320 mm |
2–12mm |
HMK-350 |
3–4 t/h |
55 kw |
0.75 kw |
2.2 kw |
350 mm |
2–12mm |
HMK-400 |
4–5 t/h |
75 kw |
1.5 kw |
2.2 kw |
400 mm |
2–12mm |
HMK-420 |
5–7 t/h |
90 kw |
1.5 kw |
5.5 kw |
420 mm |
2–12mm |
