This is about the total small scale palm kernel oil mill plant(/index.php?u=show-1853.html).

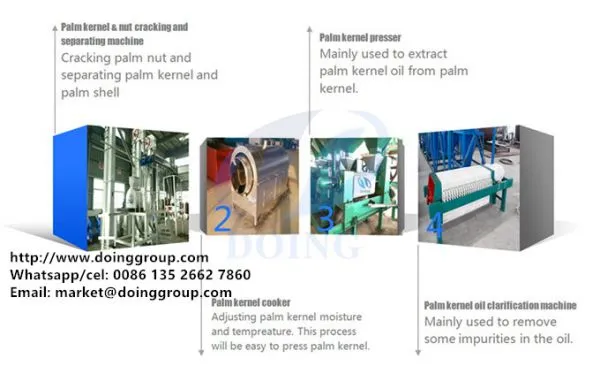

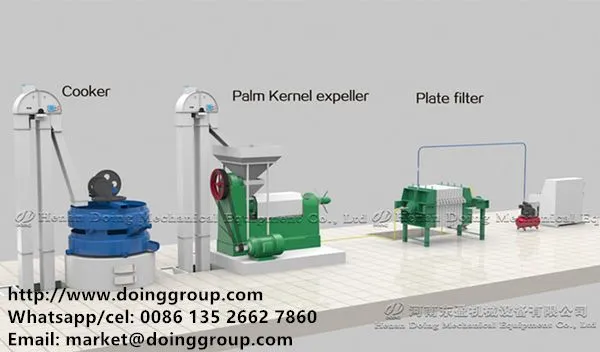

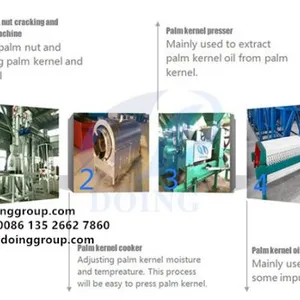

It is composed by five main machines: palm fiber polishing machine, palm kernel cracking machine, palm kernel cooking machine, palm kernel oil expeller machine and palm kernel oil filter machine.

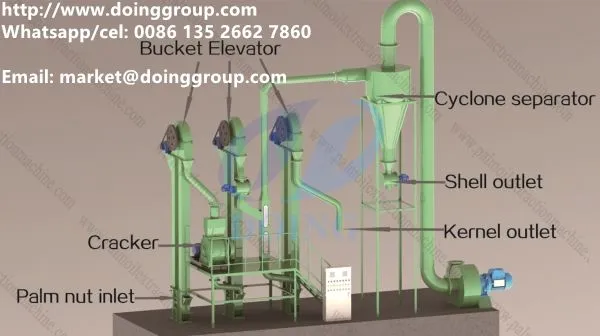

Besides, we have palm kernel cracking and separating machine for palm kernel oil mill plant(/index.php?u=show-1556.html). The palm kernel cracking and separating machine we manufacture is our company independently developed.
It is a very complicated technology to separate palm kernels and shells because thier weight is very close. Our machine adopts professional palm kernel cracker, and the crushing rate is above 90%.
Then using air separator system, our palm kernel separating machine(/index.php?u=show-1403.html) can make the speed and air volume arrive the critical value, and at last separate the palm kernel shells and kernels.

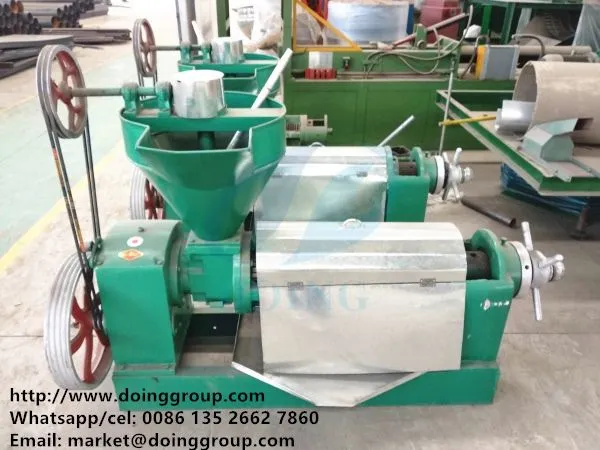

The palm kernel oil expeller machine(/index.php?u=show-711.html) consists of five parts: feeding hopper, gear box, pressing chamber, pressing screw and frame.
The specific parameter of our palm kernel oil expeller machine:
Capacity(kg/h) 500 kg/h
Main Power (kw) 30kw
Shaft Speed 35-39r/min
Weight (kg) 960kg
Size(mm) 2020*700*1480mm
Gear ratio in gearbox 115/38*15/52=1:8.78
Henan Doing Company has rich experience in installing the whole large or small scale palm kernel oil mill plant. Welcome to contact us by following way!
