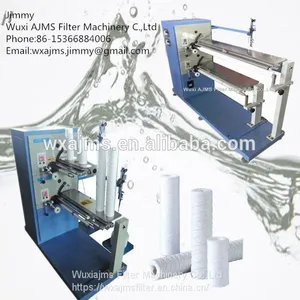

PP String Wound Filter Cartridge Machine For 10''-100'' String Wound Filters
(PP String Wound Filter Cartridge Machine)
Compay Information:
Wuxi AJMS Filter Machinery Co.,Ltd was established in 1989.our main products are:pp melt blown filter cartridge machine,5-100inch pp string wound filter cartridge machine,actived carbon filter cartridge machine,face mask pp melt blown fabric making machine,kinds of extruders.we have been engaged in this field for more than 23 years.for now,our main export markets USA,Russia,Ukraine,Egypt,Iran,Japan,Taiwan,Korea,etc.we have earned good reputation among our customers.

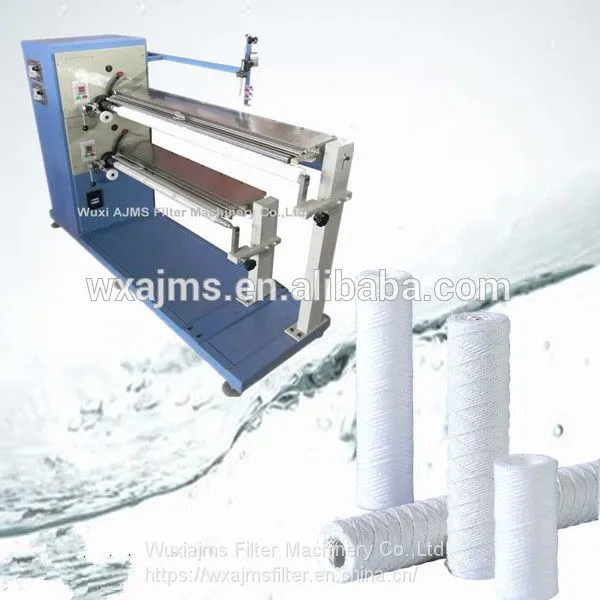

Single Head:
:

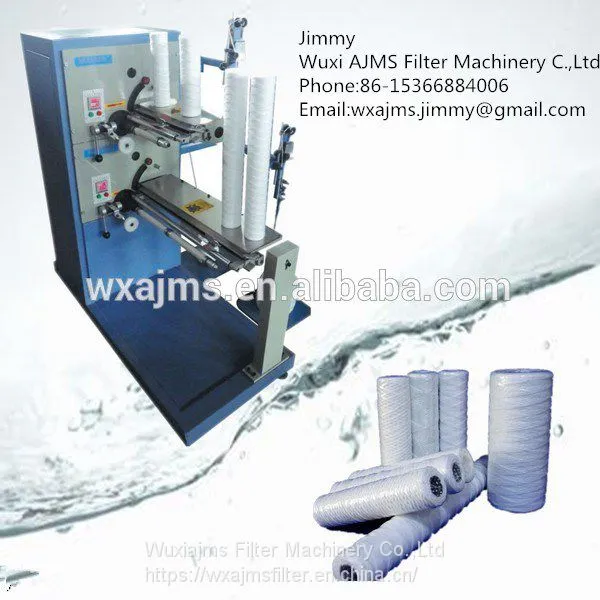

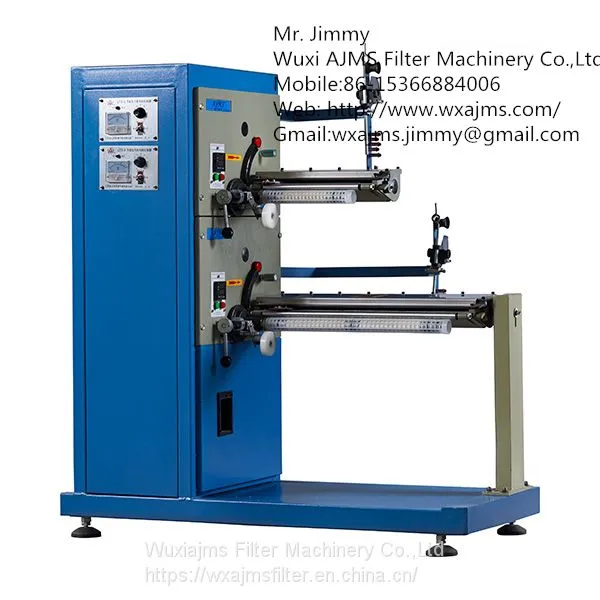

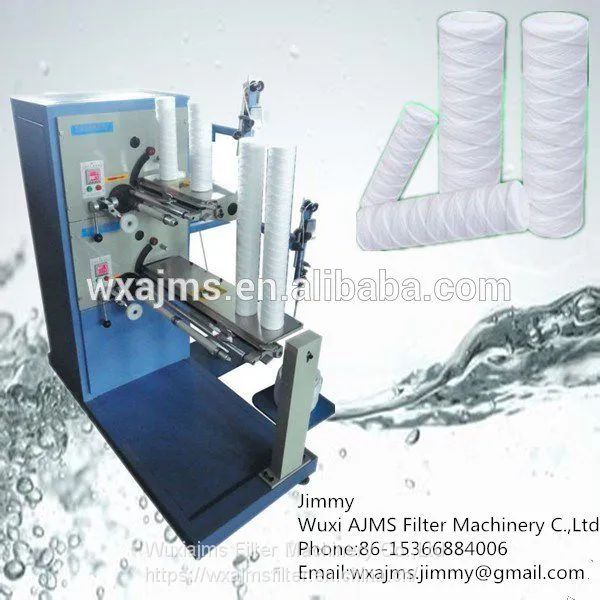

Double Head:
Product Description:
| Technical parameters:(pp string wound filter cartridge machine) | |||||
| Machine Elements | 10 inch | 20 inch | 30 inch | 40 inch | |
| Power(W) | 180 | 250 | 370 | 370 | |
| Output(yarn/hour) | 50-60 | 45-55 | 20-30 | 20 | |
| Speed (r/min) | 2880 | 2880 | 14400 | 14400 | |
| Winding reciprocation stoke (mm) | 254 | 508 | 762 | 1016 | |
| Framework length(mm) | ID | 248 | 498 | 748 | 998 |
| OD | 252 | 506 | 760 | 1014 | |
| Filter cartridge length(mm) | ID | 250 | 500 | 750 | 1000 |
| OD | 254 | 508 | 762 | 1016 | |
| Winding speed of winder | 60-320m/min | ||||
| Max.diameter of winding | 200mm(a diameter slightly above 200mm is available on client's request) | |||||
| Power supply (W) | AC380V/50HZ | |||||
| Mould of motor | A026312 | |||||
| Motor speed | 2800r/min | |||||
| Core material | Polypropylene, stainless steel | |||||
| Connecting cable | 4×1.5mm R.S.J.MP | |||||
| Filter precision | 1um,5um,10um 20um 25um 50um..100um... | |||||
| Free Parts (Pp String Wound Filter Cartridge Machine) | |
| Name | QTY(piece) |
| Springs | 20 |
| Wire channel | 5 |
| Guide block | 2 |
| Large spring | 2 |
| Press-button(red and green ones) | 1/color |
| Synchronous belt | 2 |
| Micron gears | 1 set |

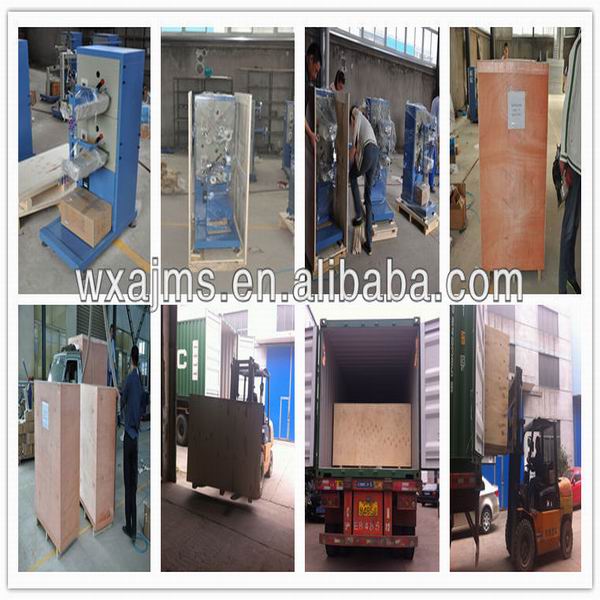

Packing:
Delivery time: 8-10 working days upon date of receipting deposit
Packing Details: Plywood Case
Warmly welcome to our company for a visiting and cooperation with us!!!
