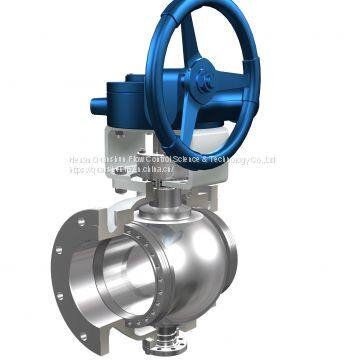

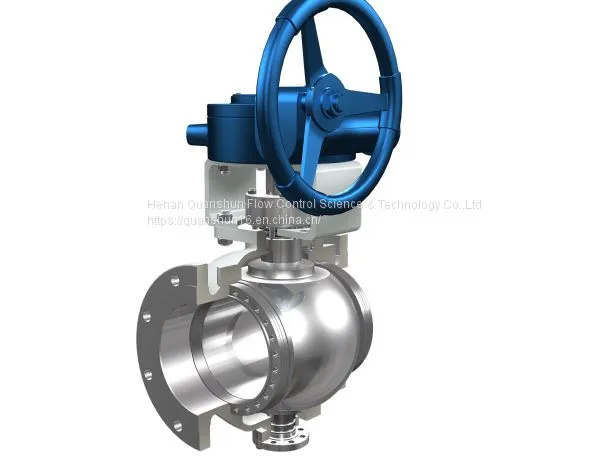

API Trunnion Two-piece Ball Valve is mainly used to control the pipeline and medium.The fixed ball valve is a kind of common valve applied in the condition with high pressure and large diameter for the medium like water,steam, oil and other kind of corrosive medium.
BENEFITS
1.Produced with full bore and necking design, the fixed type ball valve is offered in two-piece design.
2.Designed in fixed structure,the double-side sealing can be realized.
3.The trunnion valve stem design make it can bear higher presssure .
4.Since the valve seat is manufactured with fireproof structure,in case of fire,the flange connection fixed is safe and reliable due to outstanding sealing performance.
5.Offered with spring-plunger type static extraction there is a static access formed between the ball and stem and valve body and stem to avoid the accumulation of the static.
TECHNICAL SPECIFICATION
Size：2”~16”
Pressure：Class 150~Class 300
Structure Type：Trunnion type
Material of Valve Body：WCB（A105), WC6, WC9, CF8(304), CF8M(316), CF3(304L), CF3M(316L)etc.
Material of Sealing Surface：PTFE,Hard Alloy,etc.
Connection method ：Flange
Driving Method :Manual drive,Electric drive or Pneumatic drive
Design standard：ASME B16.34, ASME B16.10,ASME B16.5 ,ASME B16.25.
APPLICATION INDUSTRY
Chemical industry
Polysilicon industry
Power industry
Water industry
