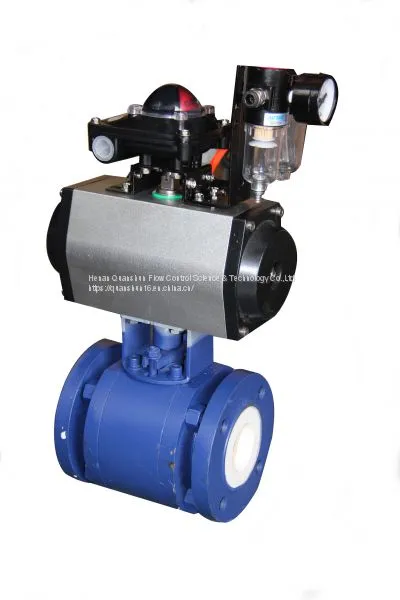

WCB Pneumatic Ceramic Lined Ball Valve

WCB Pnematic Ceramic Lined Ball Valve is a kind of O type on-off ball valve ,designed with engineering ceramics,which is abrasion resistant and corrosion .

They are widely used in power plant,chemical industry.

BENEFITS

1.The hardness of the ceramic material can be higher than HRC80.It is almost the hardest material in the world .

2.The part contacting with the medium is produced from engineering ceramics,which contributes to the good corrosion resistance of the pneumatic ceramic ball valve.

3.Through grinding machining, our ceramic ball valve has high precision and outstanding sealing performance.

4.Flange type ceramic lined ball valve is suit for any abrasive and corrosive medium .

TECHINICAL SPECIFICATION

Size:1"~8"??DN20~DN200

Pressure:Class 150 ~Class 300??PN1.0~PN6.4

Body Material:WCB(A105), CF8(304), CF8M(316), CF3(304L), CF3M(316L) etc.

Trim Material:Toughened engineering ceramics

Connection:Flange ,threaded etc,

Driving method :Electric operating,pneumatic operating or worm gear drive

 APPLICATION

Desulfurization system in the power plant

Reaction still system in chemical plant

Polycrystalline silicon industry.
