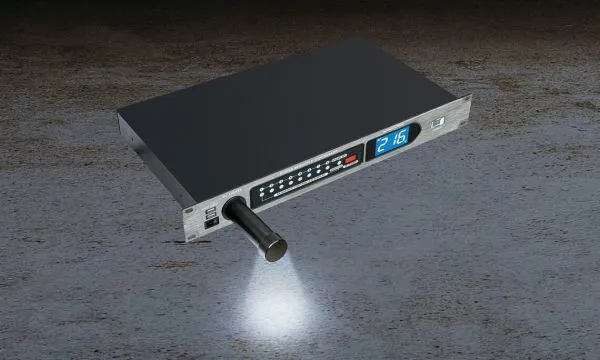

Power Sequencer With DJ Lights

Power Sequencer With DJ Lights

Technical Parameters:

Maximum switching voltage：AC240V

Channel maximum output load＜ 30A

RS232 communication connector：DB9FM

Operating temperature range：-20°~70°

Dimension：(H)63mmx(W)482mmx(D)270mm

Features:

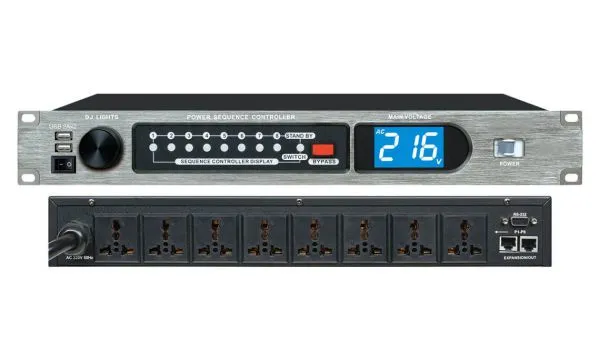

█ 8 high-current controlled power output, 2 USB Interfaces and DJ Light supported,the maximum current is 30A per channel

█ Panel is with air-break switch and manual control button for each channel, power indicator, switch status, and relay switch status indicaor

█ With simultaneously management for manual and central control or computer software, one key switch through the panel, you can turn off channels as sequencer, achieve sequencer function

█ Use multifunctional power socket. Compatible with international, American, European Standard, and a variety of specifications two-pin power plug, without additional conversion plug

█ Open protocols and connectors, via RS-232 international standard protocol control, can match with all the intelligent central control system or computer software control on the market

█ Standard 19-inch rack 1.5U slim design

█ Can choose to add filter

█ Max link function:255 Pcs
