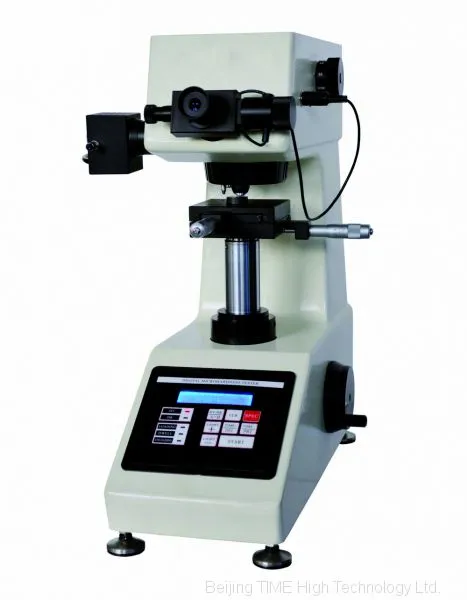

Help CenterDigital Micro Vickers Hardness Tester TH712/713
Related Products
-
Digital Micro Vickers Hardness Tester TH712/713US$ Negotiable - NegotiableMOQ: 1 Unit -
Digital Micro Vickers Hardness Tester TH714/715/716US$ Negotiable - NegotiableMOQ: 1 Unit
-
Digital Vickers Hardness Tester TH720/721US$ Negotiable - NegotiableMOQ: 1 Unit
-
Digital Vickers Hardness Tester TH723/724US$ Negotiable - NegotiableMOQ: 1 Unit
-
Fully Automatic Micro Vickers Hardness Tester TIME6610ATNegotiableMOQ: 1 Set
Features
● New high-tech product with precise mechanical and photoelectrical technology
● 10 × lens and 40 × lens enable a wider measurement field and higher accuracy.
● Equipped with a digital microscope and cold light source, it shows the measuring method, test force, diagonal length of indentation, hardness value, dwell time and the times of measurement.
● Camera devices can be connected via RS232 interface
● Especially suitable for testing the hardness of small, thin and fragile material specimen
● Knoop indenter optional to measure knoop hardness value
● Conform to GB/T4340, ISO6507, JIS B7725 and ASTME92 standards.
● TH713: equipped with auto turret to prevent maloperation.
Standard Delivery |
Optional Accessory |
|
Main unit |
1 |
Knoop indenter |
Weights |
6 |
LCD device |
Cross testing table |
1 |
Grinding machine |
Platelet fixture |
1 |
Cutting machine |
Plane-holding fixture |
1 |
Mosaic machine |
Filament fixture |
1 |
|
Screw driver |
2 |
|
Horizontal regulation screw |
4 |
|
Level |
1 |
|
Power cable |
1 |
|
10X numerical microscope |
1 |
|
Vickers hardness block |
2 |
|
Repair fuses (1A) |
2 |
|
Weight shaft |
1 |
|
Instruction manual |
1 |
|
TIME certificate |
1 |
|
Warranty card |
1 |
Technical Specification
Test Forces |
(0.098, 0.246, 0.49, 0.98, 1.96, |
Carriage Control |
Loading/ dwell/ uploading (automatic) |
Amplification of the Microscope |
100x, 400x |
Dwell Time of the Test Force |
(5-60)s |
Min. Graduation Value of the Testing Drum Wheel |
0.0625μm |
Testing Field |
1HV-2967HV |
Dimension of the XY Table (mm) |
100 x 100 |
Movement Field of the XY Table (mm) |
25x25 |
Max. height of the specimen (mm) |
70 |
Max. width of the specimen (mm) |
95 |
Light Source |
Cold light source |
Power Supply |
110V/220V, 60V/50Hz |
Dimensions (mm) |
425x245x490 |
