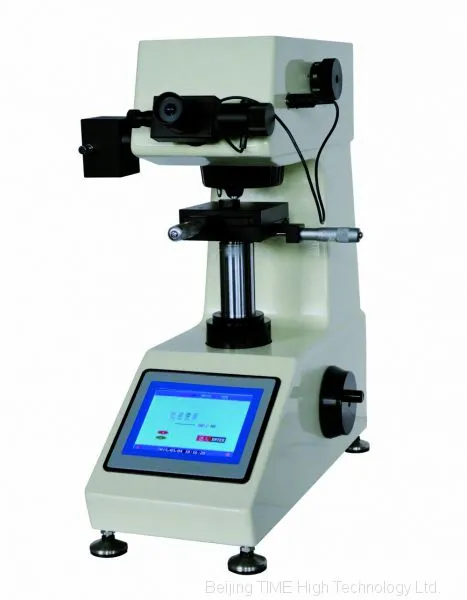

Digital Micro Vickers Hardness Tester TH717

Name: Digital Micro Vickers Hardness Tester TH717
Brand: TIME
SKU: 158498312
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

TIME

Place of Origin:

China

Model Number:

TH717

Beijing TIME High Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIME

Place of Origin China

Model Number TH717

Features

● 20 × lens and a 40 × lens the tester enable a wider measurement field and higher accuracy.

● Connected to printer and computer via RS232 interface.

● Easy operation: Auto turret

● The touch LCD screen shows measuring method, test force, diagonal length of indentation, hardness value, dwell time and the times of measurement.

Standard Delivery

Weights	6 pcs
Cross testing table	1 pc
Platelet fixture	1 pc
Plane-holding fixture	1 pc
Filament fixture	1 pc
Screw drivers	2 pcs
Horizontal regulation screws	4 pcs
Level	1 pc
Electric cave	1 pc
10×numerical microscope	1 pc
Vickers hardness blocks	2 pcs
Repair fuses (1A)	2 pcs
Instruction manual	1 pc

Technical Specifications

Testing range	1HV~2967HV
Test force	0.098N(10gf),0.245N(25gf),0.49N(50gf), 0.9807N(100gf),1.961N(200gf),2.942N(300gf), 4.903N(500gf),9.807N(1000gf)
Optical system
Carriage application method	automatic loading and unloading
Objective	10×(Observation)	40×(Measurement)
Measuring Eyepiece	10×
Total Amplification	100×( Observation )	400×( Observation )
Resolution Rate	0.25μm	0.0625μm
Max height of the specimen	100 mm
Distance between the point of the indenter and the exterior panel	98 mm
Gross weight	44kg
Net weight	30 kg
Power source	AC220V/110V, 60/50 Hz
Dimension (mm)	480×305×545
