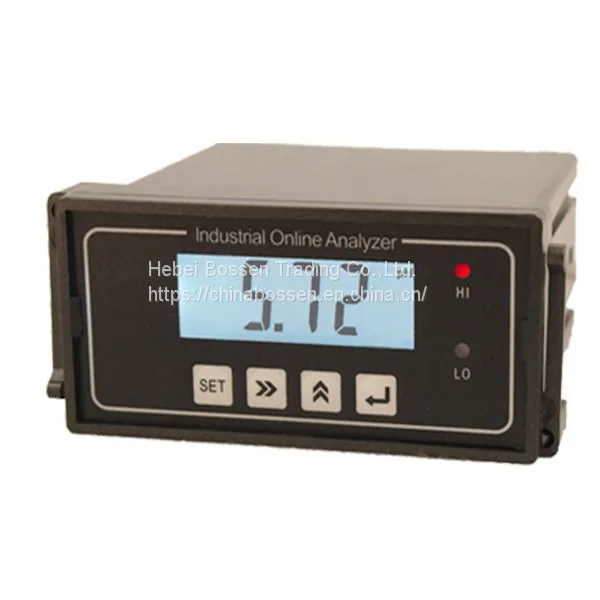

Industrial PH Meter PH-753/853

Industrial PH Meter PH-753/853 thumbnail-1
Industrial PH Meter PH-753/853 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Bossen
Place of Origin:
China
Model Number:
PH-753/853
Contact Supplier Request Quote Chat Now
Hebei Bossen Trading Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
beijing, tianjin
Delivery Detail:
4 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Bossen
Place of Origin China
Model Number PH-753/853

     {0>PH-750/850型在线酸度计是一种用于工业在线测量和控制pH的精密仪表。PH-753/853 online PH controller is an accurate instrument used for industrial on-line measurement and PH control. 安装使用方便，运行可靠,环境适应性强,维护量小。The instrument is easy to install and use, operates safely, has a strong adaptability to the environment, and requires little maintenance.



 Main characteristics:

{0>1.三点校准，溶液自动识别1) Three-point calibration, automatic identification of solutions.

{0>2.具有pH上限、下限报警继电器控制输出功能，报警回差设定功能2) Provided with the functions of outputting PH maximum and minimum   alarm relay control function and setting alarm return difference.

{0>3.隔离4～20mA电流环输出3) Output of insulated 4～20mA current loop.

4) PH value and Temperature shift function

5) Power EMC anti-jamming circuit function.

{0>2 主要技术指标Technical Parameters



               {0>型号type

{0>功能       选项Function   option

{0>PH-750PH-753

{0>PH-850PH-853

{0>上、下限控制输出 Outputting maximum and minimum control

×

√

{0>隔离 4～20mAInsulating 4～20mA

×

√





























{0>测量范围：0.00～14.00pHMeasurement range: 0.00～14.00pH

{0>分 辨 率：0.02pHResolution ratio: 0.02PH

{0>准 确 度：±0.1pHAccuracy: ±0.1pH

{0>显示方式：3½位背光液晶显示Displaying mode:3½-digit apheliotropic liquid crystal display

{0>校准方式：三点校准（溶液自动识别）Calibrating mode:Three-point calibration

(automatic identification of solutions)

{0>手动温度补偿：0～80℃Manual temperature compensation: 0～120℃

Auto temperature compensation: 0～120℃ (NTC10K)

{0>被测溶液温度：0～80℃Temperature of measured solutions: 0～120℃

{0>电极耐压力：0～0.6MPa Compression resistance of electrodes: 0～0.5MPa

{0>测量距离：标准配置10m（≤40m）Measurement distance: standard configuration 10m(≤40m)

{0>输出电流：隔离4～20mA（≤500Ω）Output current: insulated 4～20mA（≤500Ω）

{0>控制输出：高、低限（常开）触点输出Control output: Max. and Min. (constantly open) contact point output

{0>触点容量：3A/AC250V(阻性负载下)Capacity of contact points: 3A/AC250V (with resistant loads)

{0>供电电源：AC 220V±10%   50HzPower supply: AC 220V±10% 50/60Hz,  AC 110V±10% 50/60Hz √

{0>环境条件：湿度：≤85%/RH；除地磁场外，无其他强电磁场干扰。Environmental conditions: humidity: ≤85%/RH;

without strong  electromagnetic  interference except earth magnetic field

{0>外形尺寸：48×96×100mm（高×宽×深）External dimensions: 48×96×100mm (height×width×depth)

{0>表盘开孔：45×91mmThe hole on the dial plate: 45×91mm,     {0>安装方式：盘装Installation mode: Panel Installation


Product Tags: ph meter , ph monitor , online controller
