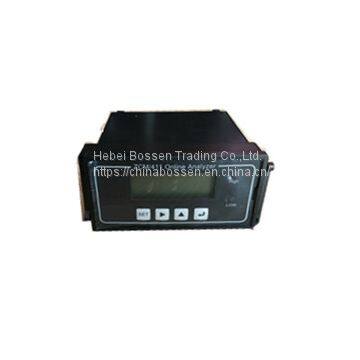

Industrial Conductivity Meter EC-411

{0>该系列仪表为工业在线电导率测控仪仪表。<}0{>This Conductivity Meter EC-411 is industrial on-line instruments for measuring and controlling conductivity. With isolated 4-20mA signal output and relay output function, <0}{0>广泛应用于制药、化工、电子、食品、饮料等行业对纯水的测控。<}0{>it applies widely to the measurement and control of pure water in the fields of pharmacy, chemical industry, electronic industry, food industry and beverage industry.<0}

{0>2.技术性能<}0{>Technical performance<0}

              {0>型号<}100{>type<0}

{0>功能       选项<}100{>Function   option<0}

{0>EC-410<}0{>EC-411<0}

{0>EC-450<}100{>EC-451<0}

{0>上限<}0{>maximum<0}

{0>控制输出<}0{>control output <0}

√

√

{0>隔离<}0{>insulating<0}

{0>4－20mA<}0{>4－20mA<0}

---

√

{0>测量范围:<}0{>Measuring range:<0}  0～20、0～200、0～2000μS/cm □

                    Switch display 0～10、0～100、0～1000ppm □

                    0～2000ppm □

                0～20mS/cm □<0}

{0>显示方式：3½位LCD段码液晶显示<}81{>Displaying mode:3½-digit apheliotropic liquid crystal display<0}

{0>准 确 度：1.5%（FS）<}0{>Accuracy: 1.5%（FS）<0}

{0>稳 定 性：±2×10-3(FS)/24h<}0{>Stability:±2×10-3(FS)/24h<0}

{0>工作压力：0～0.5MPa<}0{>Working pressure: 0～0.5MPa<0}

{0>介质温度：0～45℃<}0{>Medium’s temperature:0～50℃<0}

    {0>温度补偿：以25℃为基准，数字补偿<}0{>Temperature compensation: taking 25℃ as the datum point, digital

                           compensation.<0}

    {0>输出电流：隔离有源输出4～20mA (≤300Ω)<}0{>Output current: Active photoelectric isolated output 4～20mA

{0>控制输出：高限（常开、常闭）双触点输出<}75{>Control output: max. and min. (constantly open)double relay output

{0>触点容量：7A/250V AC（阻性负载时）<}74{>Capacity of contact points: 7A/AC250V (with resistant loads)<0}

{0>选配电极：1.0cm-1电极 <}0{>Provided electrodes:1.0cm-1 electrodes<0}

{0>线缆长度：常规5m或另行约定______m<}0{>Length of the cable: conventional 5m or otherwise agreed      m<0}

{0>环境条件：温度：0～50℃；湿度：≤85%RH <}0{>Environmental conditions: temperature: 0～50℃; humidity: ≤85%RH<0}

{0>供电电源：AC 220V±10%   50Hz<}100{>Power supply:  AC 220V±10% 50/60Hz  □            <0}

{0>外形尺寸：48×96×100mm（高×宽×深）   <}100{>External dimensions: 48×96×100mm (height×width×depth)<0}

{0>表盘开孔：45×91mm<}100{>The hole on the dial plate: 45×91mm

 Installation: Panel mount

<0}
