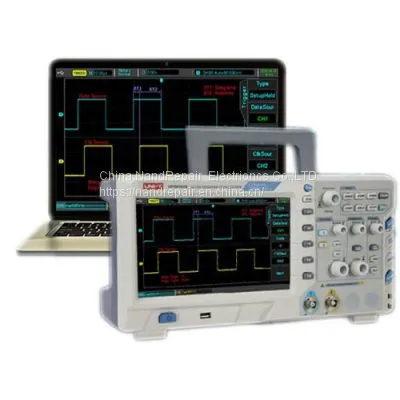

UNI-T UPO8102S Mobile Phone Repair Dedicated Oscilloscope UPO 8102S
Support Multi-languages
Mobile phone repair dedicated oscilloscope Double channel / 100M band width 8-inch HD screen
I2C/RS232/SPI protocol triggering and decoding, 100MHz band width 2 analog channels 1GS/s real-time sampling rate multiple waveform parameters. UNI-T UPO8102S oscilloscope is the world's first customized oscilloscope for mobile phone repair. The oscilloscope is mainly used to detect the voltage and signal waveform of the key points on the main board, which can be delineated. Range, quickly find the point of failure.
UNI-T UPO8102S Features:
1. I2C/RS232/SPI protocol triggering and decoding, customized for mobile phone repair, professional and accurate, let you find the fault quickly.
2.100MHz bandwidth, 2 analog channels, 1GS/s real-time sampling rate, multiple waveform parameters.
3. Connect the USB to the computer, you can debug and remote control by connecting to the computer.
4. You can start to use it by pluging in the USB anytime and anywhere, upgrade the system software through the USB, also can be used to store data.
5. Chinese and English bilingual settings, and fast and convenient operation
6. Configuring an 8-inch screen and can acquire a full field of view.
Customized Oscilloscope for Mobile Phone Repair (concentration)
waveform of clock and data clock waveform of 32.768K( sin wave)
Waveform Show ( more)
RUNT trigger Edge-triggered N
Triggering and decoding of RS232 protocol
Triggering and decoding of I2C protocol
8 inch fluorescent screen
Configuring an 8-inch screen and can acquire a full field of view
Keep a proper distance to observe the waveform, convinent and eye protection
Data Storage /Remote Control
You can start to use it by pluging in the USB anytime and anywhere, upgrade the system software through the USB, also can debug and remote control by connecting your computer.
Data Storage
Remote Control
Read USB
Software Upgrade
Waveform Settings
Storage Online
Waveform Recording and Playback
Package List:
UNI-T UPO8102S Oscilloscope
Double Probe
Power Cord
Gadgets
Instruction Manual+Warranty Card
Shockproof Foam
Mounting Disc
