Ipad 5 6 Socket ICloud Unlock Adapter Non-Removal Nand For PRO3000S
Option1: Ipad 5 6 Socket
Option2: Ipad 5 6 Socket + Iphone 6 6P Adapter
Option3: Ipad 5 6 Socket + Ipad 3/4 ICloud Socket
Option4: Ipad 5 6 Socket + IPad 2 3 4 Unlock ICloud Non-removal Adapter

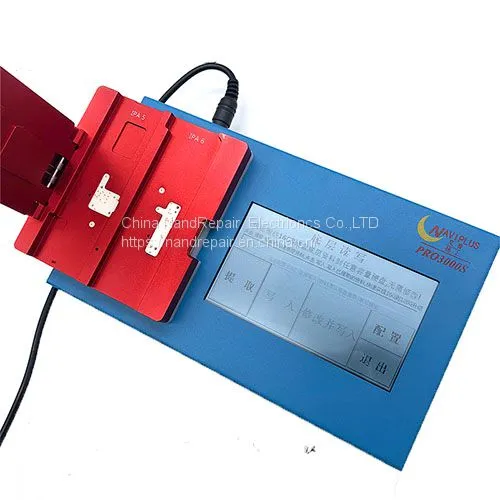

you have to using the lastest Naviplus PRO3000S, no need Remove Nand Modul for PRO3000S Nand Programmer, Non-removable ICloud unlock test fixture For PRO3000S.
The un-removing Nand fixure of AIr/Air2 work with the Naviplus pro3000s, with it with less Nand removing and more efficiency
Features:
Plug and play, Hot-Plugging
Compatible with all function of the Pro3000/Pro3000S
Reliable probe-contact technology from logic board to fixture
0.1inch-28pin dual-in-line plug with Pro3000S
Support the Nand From 16GB to 256GB
Support model:
16G Toshiba support
16G Modern All Support
16G SanDisk support
32G Toshiba all support only 8B4 does not support
32G modern all support
32G SanDisk support
64G support model
64G SDMILBDF4-064G
64G THGBX4ToT8KLF0E
64G H2JTFG8VD3MBR
128G support model
128G SDMILBCF8_128G
128G H2JT1T8QD1MMR
128G THGBX20BBJLA03
User Guide of Air/Air2 un-removing Nand of fixture according Pro3000/Pro3000S
Configuration interface The current model series must be selected 64 bits, in order to check the pad5/6 free option
Select the PAD 5/6 un-removing check box in configeration interface
First dick the read button, must read successfull before write or set/write, it's not suggesed write FW data from onelogic board o another logic board, every FW of logic board from itself to itself is suggerted.
Now, there maybe serveral Nand model isn't support by Air/Air2 un-removing Nand of fixture and now we are analgsising it with our full play, the models below:
Has been tested not support below model of ipad 5 / 6
32G THGBX2G8D4JLA01
32G THGBX2G8B4JLA01
32G THGBX3G8D4KLA0C
32G H2JTEG8VD1CMS
64G THGBX4G9T4KLF0C
64G H2JTFG8PD1MMR
Note:
1. Should remove the plastic shield of corresponding pad area in logic board
2. The fixture plug in the pro3000S should pin-to-pin, otherwise, It not work.
