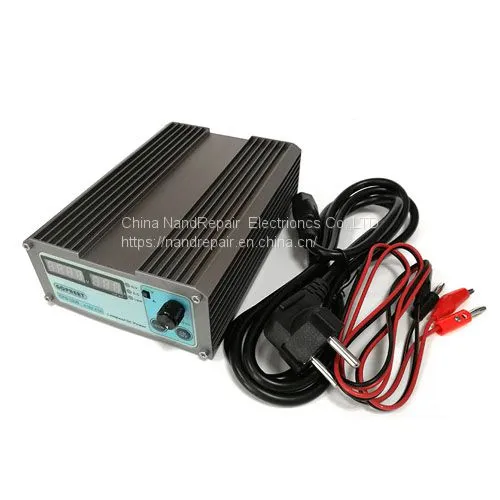

GOPHERT CPS-3205 Adjustable DC Switching Power Supply CPS-3205II Upgrade Version
Option1 : CPS-3205 Standard Package
Option2: CPS-3205II with 28PCS DC cable connector
CPS-3205 Features :
The microprocessor(MCU) control with top cost performance.
High power density, smallest and compact.
Aluminum shell, lower EMI.
Using Encoder to set the voltage and current.
Four digital volt meter and three digital current meter display.
The current meter displays mA automatically when current below 1A.
High efficiency, up to 88%.
Low Ripple & Noise : ≤30 mVp-p.
Output ON/OFF.
Watt switch(compute and display actual output power ).
110VAC / 220VAC power input switchable.
Intelligent protection : Tracking OVP, Tracking OCP, OTP, Output short circuit protection.
CPS-3205 Specifications:
Operating voltage range 198 - 264Vac
Operating frequency range 45 - 65HZ
Output voltage range 0 - 32V
Output current range 0 - 5A
Efficiency (220Vac, full load) ≥ 87%
Full load input current (220Vac) ≤1.4A
No load input current (220Vac) ≤ 80mA
Voltage meter accuracy ≤ 0.1% + 2digits
Ammeter Accuracy ≤ 0.1% + 4 digit
GOPHERT CPS-3205 Constant pressure state
Load regulation rate (0-100) ≤ 30mV
Input voltage regulation rate (198-264Vac) ≤ 5mV
Ripple noise (Peak-Peak) ≤ 10mV
Ripple noise (r.m.s) ≤ 2mV
Set accuracy ≤ 0.3% + 10mV
Transient response time (50% -100 rated load) ≤ 1.0ms
Constant current state
Load regulation (90% -10% Rated Voltage) ≤ 50mA
Input voltage regulation rate (198-264Vac) ≤ 20mA
Ripple current noise (peak-to-peak) ≤ 20mAp-p
Set the accuracy of ≤ 0.3% + 20mA
GOPHERT CPS-3205 Package:
1 x cps3205 A or B package
1 x power cord
1 x manual
