WL NAND PCIE NVME Flash HDD Test Fixture Testing NAND Flash Good Or Bad

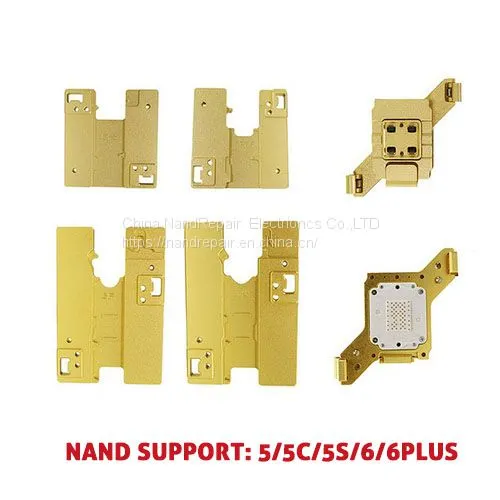

Option1: NAND Test Fixture for iPhone 6/6Plus/5S/5C/5
Option2: PCIE Test Fixture for iPhone 7/7Plus/6S/6SPlus
Option3: NVME Test Fixture for iPhone 8/8Plus
Option4: Option1+ Option2+ Option3
How to use WL Motherboard NAND Test Fixture?
1. First push the tail plug cable into the motherboard tail socket
2. Place the motherboard into the bottom plate of the fixture and fix it by the positioning post
3. Put the hard disk into the seat pin plate(note the direction of the hard disk and the direction of the head). After confirming the direction the seat head can be correctly buckled into the bottom plate
4. Buckle into the power boot line or battery on the motherboard, insert the data cable can be online, brush machine!(If necessary, you can also buckle the display to observe in real time)
error 4014 (NAND bad / good error ),
error 9 (First show:NAND connection error,End show:NAND bad / good error )
error 1(motherboard error)
error 14(itunes update error)
error 53 (fingerprints error).
Remark: different error code from different itunes software version.
Take 7th generation and 7Plus as examples(common to other models)
1. First push the tail plug cable into the motherboard tail socket
2. place the motherboard into the bottom plate of the fixure and fix it by the positioning post
3. put the hard idsk into the seat pin plate(note the direction of the hard disk and the direction of the head). after confirming the direction, the seat head can be correctly buckled into the bottom plate.
4. buckle into the power boot line or battery on the motherboard, insert the data cable can be online, brush machine!( if necessary, you can also buckle the display to observe in real time)
Noted:
1 The tin point of the hard disk of the mobile phone motherboard must be flat to avoid poor contact between the motherboard and hard disk carrier probe.
2 Can not use the rosin or flux tool to contact the hard disk carrier probe, to avoid the rebound rate is reduced, resulting in poor contact between the probe and the motherboard hard disk
3 When cleaning the socket, be careful not to damage the probe too hard.
Package include:
1 x WL NAND PCIE NVME Flash HDD Test Fixture
