MH-GR cast aluminum two-wire ultrasonic material (liquid) position meter is a two-wire ultrasonic measurement product developed by our company by taking advantage of many similar products at home and abroad. Using the latest energy-saving components, the whole working current is less than 3.5mA, and it can work reliably in the 9-32V DC power supply voltage. It is made of cast aluminum casing and comes with LCD display for convenient on-site setting. It can meet most of the level measurement requirements without touching the industrial medium, thus completely solving the shortcomings such as winding, clogging, leakage, medium corrosion and maintenance inconvenience caused by traditional measurement methods such as pressure type, capacitance type and float type. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control. The upgraded version incorporates HART protocol communication support, which makes up for the shortcomings of the two-wire meter without data output, and can directly communicate with HART field instruments.
★ Can adjust the analog output arbitrarily
★ Backup and restore settings parameters
★ With digital filtering and echo recognition
★ 4~20MA current output, with HART protocol
★ Sturdy and stable sensor for harsh industrial applications
★ The built-in temperature sensor of the transducer realizes real-time automatic temperature compensation of measured values.
☆Water and sewage treatment Pump house, collection well, biochemical reaction tank, sedimentation tank, etc.
☆Electricity, mine mortar pool, coal slurry tank, butter storage tank, stockyard or part of mobile equipment control, etc.
☆Food Industry Winery, granary, food materials, tanks, etc.
☆ Control system supporting use

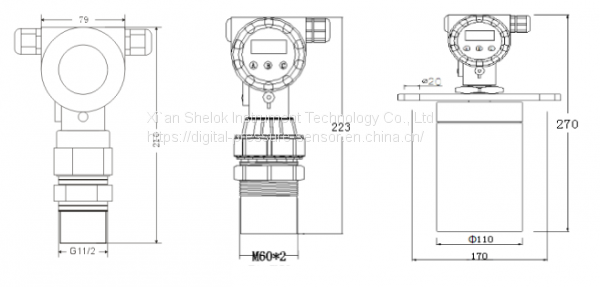

79mm × 210mm × G1 1/2 (2m range)
79mm × 223mm × M60 (5m-15m range)
79mm × 270mm × DN80 non-standard flange (20m-30m range)
M60×2 or ¢61mm round hole with large ring (5m-15m range)
DN80 non-standard flange (20m-30m range)
