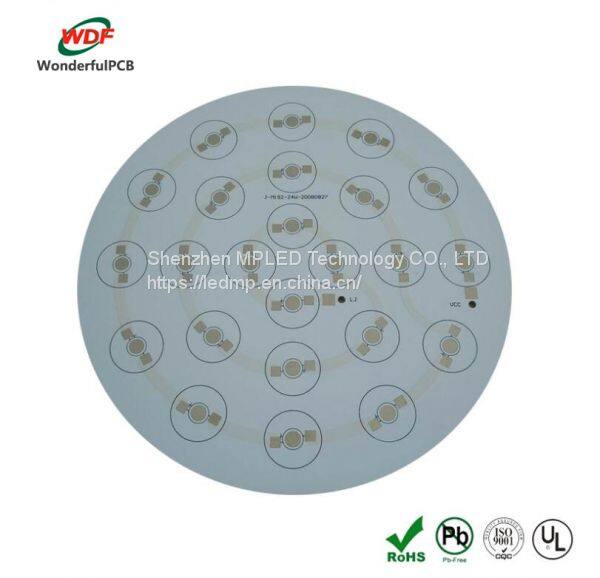

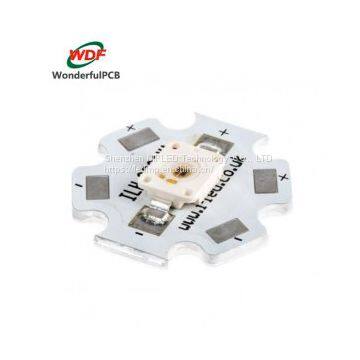

Customized high quality aluminum led pcb board
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 30 days
You May Like
Product Details
| Brand Name | Wonderful PCB | Place of Origin | China | |
| Surface Finishing | OSP | Min. Hole Size | 0.25mm | |
| Board Thickness | 1.6mm | Copper Thickness | 0.5oz, 1oz, 2oz, 3oz and 4 oz |
Product Description
· Brand Name: Customized
· Min.Order Quantity: No
· Supply Ability: 30~50 thousand ㎡/Month
· Port: Shenzhen
· Service: EMS/OEM/ODM
· Payment Terms: T/T,Paypal,WU etc.
· Layer: 1
· Base Material: Aluminum
· Copper Thickness: 1oz
· Board Thickness: 1.6mm
· Solder Mask Color: White(can customized)
· Silkscreen Color: Black(can customized)
· Surface Finishing: OSP
· Test Way: 100% E-Test
· Standard: IPC-Class2/Class 3
Our production capacity
PCB Item | Manufacture Capacity |
Product Type | Al Clad PCB 1 layer~2 layer |
Maximum Panel size | 20″*24″ (1170mm*600mm) |
Copper thickness | 0.5oz, 1oz, 2oz, 3oz and 4 oz |
Dielectric Thickness (to Substrate) | 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm |
Finished Board Thickness | 0.4mm To 4.0mm |
Thickness Tolerance | +/-10% |
Aluminum Machining | Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available |
Min. Finish hole size | 0.25mm |
ing voltage | 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
Min.Track Width | 0.2mm (8mils) |
Min.Track gap | 0.2mm (8mils) |
Min. SMD pad pitch | 0.2mm (8mils) |
Surface Finishing | HASL, HASL Leadfree, Immersion gold, Flash gold, OSP |
Soldermask color | White, Black, others Available |
Legend color | Black, White, others Available |
Etest | YES |
RohsL | YES |
Reference Standard | IPC-A-600G Class 2 |
Special holes | Spot facing, Cup holes |
Data Input | Data Input |
High quality aluminum base led pcb board with hasl finish in Shenzhen
OEM/ODM/EMS Services for PCBA:
· PCBA, PCB Board assembly: SMT & PTH & BGA
· PCBA and enclosure design
· Components sourcing and purchasing
· Quick prototyping
· Plastic injection molding
· Metal sheet stamping
· Final assembly
· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
· Custom clearance for material importing and product exporting
Capability - SMT
· Lines 9(5 Yamaha,4KME)
· Capacity 52 million placements per month
· Max Board Size 457*356mm.(18”X14”)
· Min Component size 0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
· Speed 0.15 sec/chip,0.7 sec/QFP
Capability - PTH
· Lines 2
· Max board width 400 mm
· Type Dual wave
· Pbs status Lead-free line support
· Max temp 399 degree C
· Spray flux add-on
· Pre-heat 3
