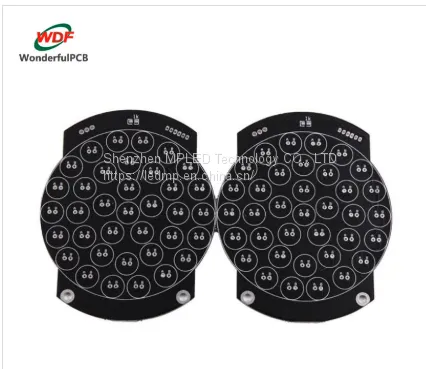

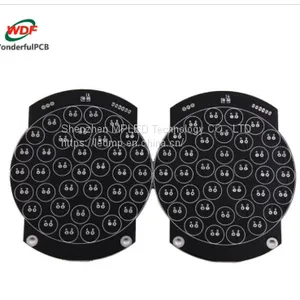

Help CenterAluminum Base Led Pcb Board
Related Products
-
NBR PIPE COVERED CHILDERN’S TOYS SAFETY PIPEUS$ 0.5 - 999MOQ: 100 Pieces -
FOLDABLE XPE FLOATING WATER MAT SWIMMING POOL FLOATING MATUS$ 0.5 - 999MOQ: 100 Pieces
-
Steamer CombUS$ 0.5 - 999MOQ: 100 Pieces
-
LED Nail Dryer Lamp LB-248US$ 0.5 - 999MOQ: 100 Pieces
-
[Copy] 2017year Newest Convenient Fashion USB Rechargeable Cordless Mini Hair Straightener BrushUS$ 0.5 - 999MOQ: 100 Pieces
Brand Name: Customized
Min.Order Quantity: No
Supply Ability: 30~50 thousand ㎡/Month
Port: Shenzhen
Service: EMS/OEM/ODM
Payment Terms: T/T,Paypal,WU etc.
Layer: 1
Base Material: Aluminum
Copper Thickness: 1oz
Board Thickness: 1.6mm
Solder Mask Color: White(can customized)
Silkscreen Color: Black(can customized)
Surface Finishing: OSP
Test Way: 100% E-Test
Standard: IPC-Class2/Class 3
Our production capacity
PCB Item Manufacture Capacity Product Type Al Clad PCB 1 layer~2 layer Maximum Panel size 20″*24″ (1170mm*600mm) Copper thickness 0.5oz, 1oz, 2oz, 3oz and 4 oz Dielectric Thickness (to Substrate) 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm Finished Board Thickness 0.4mm To 4.0mm Thickness Tolerance +/-10% Aluminum Machining Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available Min. Finish hole size 0.25mm ing voltage 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) Min.Track Width 0.2mm (8mils) Min.Track gap 0.2mm (8mils) Min. SMD pad pitch 0.2mm (8mils) Surface Finishing HASL, HASL Leadfree, Immersion gold, Flash gold, OSP Soldermask color White, Black, others Available Legend color Black, White, others Available Etest YES RohsL YES Reference Standard IPC-A-600G Class 2 Special holes Spot facing, Cup holes Data Input Data Input High quality aluminum base led pcb board with hasl finish in Shenzhen
OEM/ODM/EMS Services for PCBA:
PCBA, PCB Board assembly: SMT & PTH & BGA
PCBA and enclosure design
Components sourcing and purchasing
Quick prototyping
Plastic injection molding
Metal sheet stamping
Final assembly
Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
Custom clearance for material importing and product exporting
Capability - SMT
Lines 9(5 Yamaha,4KME)
Capacity 52 million placements per month
Max Board Size 457*356mm.(18”X14”)
Min Component size 0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
Speed 0.15 sec/chip,0.7 sec/QFP
Capability - PTH
Lines 2
Max board width 400 mm
Type Dual wave
Pbs status Lead-free line support
Max temp 399 degree C
Spray flux add-on
-
Pre-heat 3
