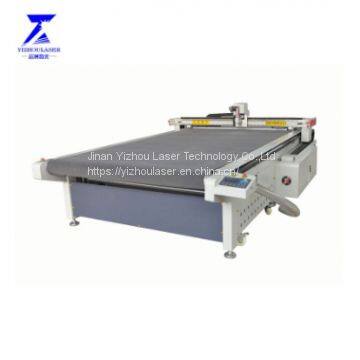

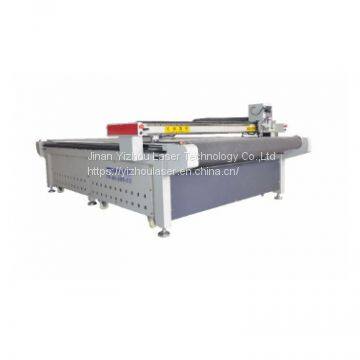

Help CenterOscillating Knife Leather Cutting Machine
Related Products
-
Ccd Camera Oscllating Knife Cutting MachineUS$ 10000 - 20000MOQ: 1 Set -
Fabric Laser Cutting Engraving MachineUS$ 6000 - 13000MOQ: 1 Set
-
Co2 Laser Cutting Engraving Machine PriceUS$ 1000 - 4000MOQ: 1 Set
-
Pneumatic Oscillating Knife CNC Knife Cutting Machine 1212NegotiableMOQ: 1 Set
-
Oscillating Knife Leather Cutting MachineUS$ 120000 - 150000MOQ: 1 Set
Apparel and Fashion|Luggage and Handbag|Sofa&Furniture|Interior Decorations
Applicable for shoes making industry, apparel and fashion cloth industry,automotive interior industry, luggage industry,package industry,decoration industry,electronic industry,composite materials industry etc
Applicable for fabric,knitting vamps, non-woven, leather, rexine, cotton, felt, silk, lace, polyester, fleece , softshell,jeans,alcantara,neoprene , Corrugated board, cardboard, white board, gray board, sticker, PVC film, foam board, artificial leather, leather, gasket, sponge, Prepreg, fabric, acrylic, honeycomb board, fiberboard, epoxy resin board, organic glass, car mat, fiber, composite material and other soft materials, etc Auto feeding cnc vibrating knife cutting machine Descriptions
AUTO FEEDING CNC VIBRATING KNIFE CUTTING MACHINE PARAMETERS Model YZ1625 Working size 1600*2500mm Price FOB QINGDAO Max.cutting thickness 30mm Characteristic Computer operation,data transmission fast Cutting speed 0-1200mm/s Motor and driver FUJI /YASKAWA/Panasonic digital servo motor and driver Oscillating Knife frenquency 18000 rotate/min Drawing pen type Gel pen, mark pen, ball pen, silver pen Knife property 8 different types of cutting property, half cutting, complete cutting settings,kiss cutting tool,creasing tool,V-cut too,,punching tool,milling head Material fixing method Intelligent divisional vacuum absorption Machine resolution 0.025mm Software resolution 0.025mm Transmission interface RJ45 Ethernet port Gearing PMI Linear guide and gear rack Memory 8MB Software program HP-GL and GP-GL drive language HMI Resistive touch screen Voltage/ Frequency AC220V±22V\50±1Hz Air pump voltage AC380V±38V\50±1Hz or 220V optional Air pump power 380V 9KW or 220V 2.2KW*4KW Packing size 2.2*3.15*1.3m Weight 1500KGS Package Standard wooden case for export
