Easy to use WDS-700 auto mobile phone iphone repair machine
Skype: salesool-wisdomshow
WhatsApp/Wechat:+86 15573072473

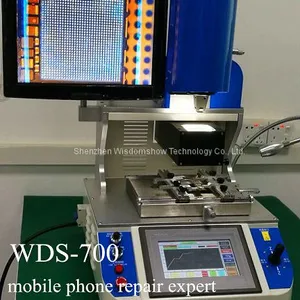

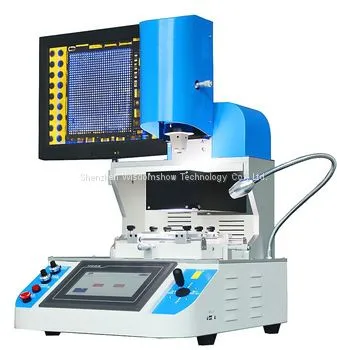

WDS-700 auto mobile phone repair machine:
Easy to use: https://youtu.be/KplWC3MT2t0
Parameter of WDS-700 mobile phone repair machine
| Place of Origin | Guangdong , China |
| Brand Name | Wisdomshow / WDS |
Model Number |
WDS-700 iPhone chip remove machine |
| Superior function | Soldering and desoldering BGA Chip/Mini IC |
More details Parameter of WDS-700 mobile phone repair machine
1 |
Business type |
BGA rework station factory |
2 |
Power supply |
AC 220V±10% 50/60Hz |
3 |
Total power |
Max 2500W |
4 |
Heater power |
Upper temp.zone 1200W,Down temp.zone 1200W |
5 |
Electrical material |
Driving motor+PLC smart ntroller+color touch screen |
6 |
Temperature controlling |
(high precision K-sensor)(Closed Loop),independent ntroller,the precision can reach ±1℃ |
7 |
Locating way |
V shape slot,PCB support jigs can adjust |
8 |
PCB size |
Max 140×160mm Min 5×5 mm |
9 |
Applicable chips |
Max 80×80mm Min 1×1 mm |
10 |
Overall dimension |
L450×W470×H670mm |
11 |
Temperature Interface |
1 pcs |
12 |
Weight of machine |
30KG |
13 |
Color |
Blue+White |

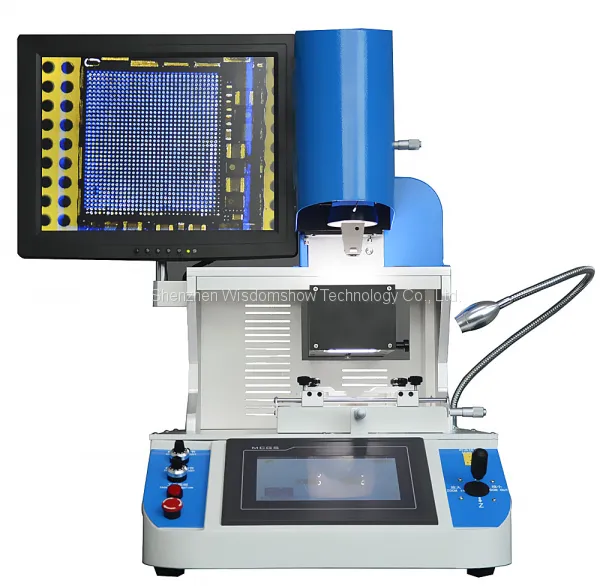

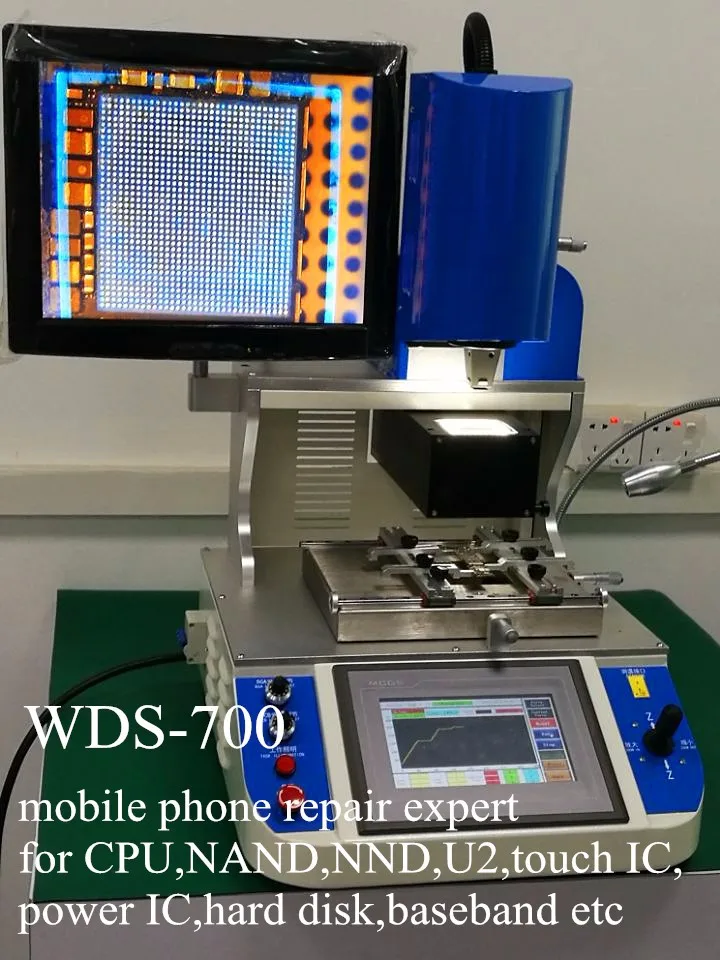

WDS-700 mobile phone repair machine detail show
Updated functions
Newest WDS-700 is the updated system with 5 modes.It’s Remove,Mount,Weld,Manual and Semi-auto.The mode can be changed freely.It can be used under automatic,semi-auto & manual le phone repair machine
Independent 2 heating zones temperature control system
1.The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently.
2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;
4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any le phone repair tools mobile phone repair machine mobile phone repair machine
Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

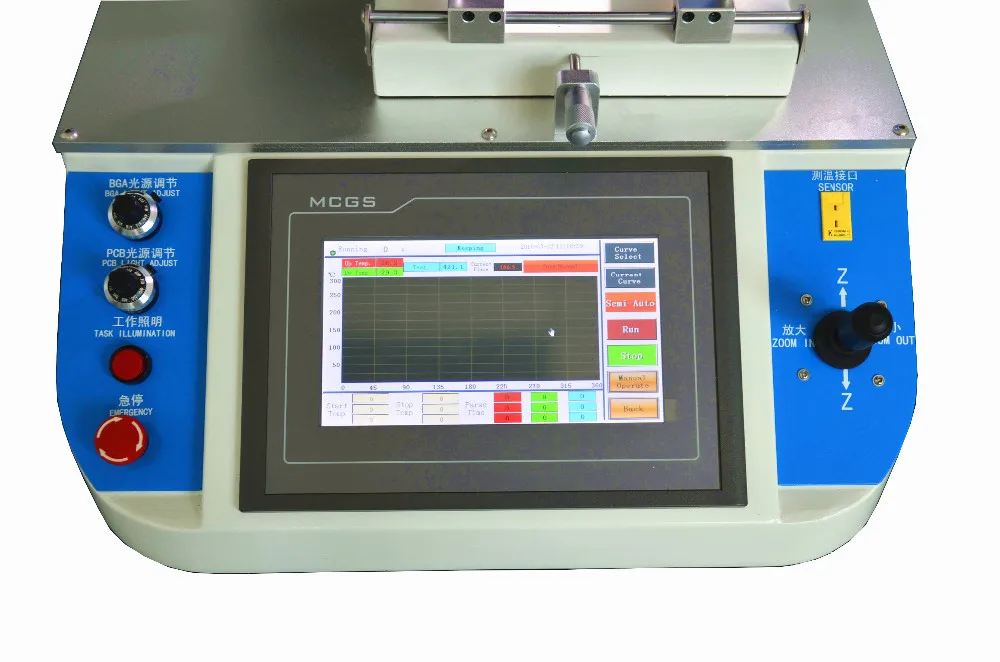

Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
Superior safety protection function
With alarm function, after the BGA welding the machine can alarm by itself.
In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any le phone repair machine
If you also repair laptop,desktop,notebook,playstation or other motherboard, WDS-620 is the better choice.
You can click the below picture to know more about WDS-620 auto BGA rework station.
2,Delivery in 2 working days after payment confirm;
3,Shipping by TNT, UPS ,DHL,FEDEX, Aramex,by air or by sea;
4,Loading port: Shenzhen or Hongkong
Pre-Sales Service:
* All productiong lines have adequate quality control and QA/QC inspectors work independently from the production line.All products passed CE & ISO certification.
After-Sales Service
* Offer free spare parts and service within 12 months of warranty,and all the other relative cost should be on the buyer's account.
* Provide Demo operation video for training.If you have time,welcome to our company,will arrange engineers to show you the operation,you can also test the machine by yourself.
Why WDS?
1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;
2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;
3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;
4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;
5. 100% NEW from WDS factory;
6. Over 20 R&D engineers, with 10 year experience;
7. Over 100000 Global User;
8. All models approved CE ISO9001;
9. 100% QC inspect before shipment;
10. High quality & competitive price.
*Payment terms
-T/T :30% deposit, Balance before shipment
-Western Union
-Paypal
-Aliexpress
-Escrow
*BGA application
-Laptop notebook motherboard bga rework and repair;
-Game consoles applications such as xbox Ps3 Wii bga rework and repair;
-Large circuit board maintenance, and mobile phone motherboard such small small-sized chip.
*Training & Warranty
Life-time free training.
Warranty:lifetime free service ,one year warranty. the 1st year is free,ONLY spare parts charged after the 1st year. Reply within 24hours,7 days/week.
Training and warranty can be from the overseas local office or Shenzhen Wisdomshow office directly.
