Sales trend PS3 GPU motherboard repair machine hot air BGA Rework station WDS-620

FOB Price

USD $1 - $3980 / Piece

1 Piece(Min.Order)

Supply Ability 360 Piece / Pieces per Month
Port Shenzhen,HK
Payment Terms:T/T D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail:2 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	WDS	Place of Origin:	China	Model Number:	WDS-620
Certification:	CE,ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas	Weight:	60kg
Voltage:	110V/220V	Usage:	repair chip IC motherboard	Dimensions:	L650W630H850mm
Rated Duty Cycle:	100%	Current:	Dependable	Rated Capacity:	5300W

Product Description

Sales trend PS3 GPU motherboard repair machine hot air BGA Rework station WDS-620

https://youtu.be/yckk3bV7XFw

Skype:salesool-wisdomshow

WhatsApp/Wechat/Phone:+8615573072473

Product Description

Application of WDS-620 BGA rework station:

⇒ Laptop / Notebook/ Computer motherboard repair.

⇒ Playstation / XBOX 360 and other game console repair.

⇒ Iphone 4/ 4s / 5 / 5s motherboard repair.

⇒ TV / Video / ipad mainboard repair.

⇒ SMD/ SMT / IC BGA rework

WDS BGA rework station guarantee:

1.Source the latest, hottest and best quality goods possible.

2.Offer most competitive price.
3.Speedy and high quality customer service and after-sale service possible.
4.Deliver goods to customer all over the world with speed and precision.

hot air BGA Rework station WDS-620 parameter:

1	bga reballing station	Yes
2	Power supply	AC 110V/220V±10% 50/60Hz
3	Total power	Max 5300W
4	Heater power	Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W
5	Electrical material	Driving motor+PLC smart ntroller+color touch screen
6	Temperature controlling	(high precision K-sensor)(Closed Loop),independent ntroller,the precision can reach ±1℃

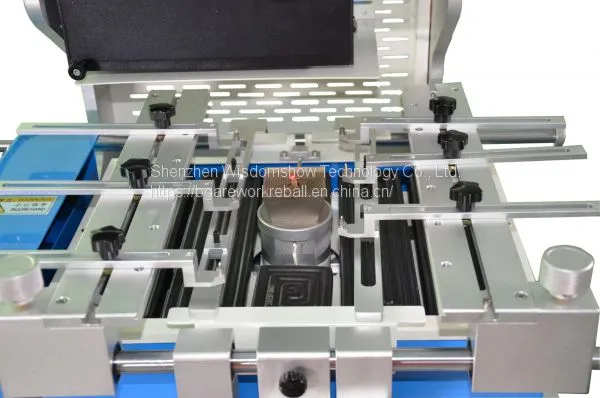

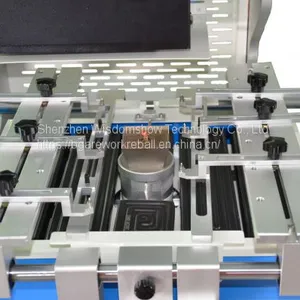

7	Locating way	V shape slot,PCB support jigs can adjust,laser light do fast centering and position
8	PCB size	Max 410×380mm Min 10×10 mm
9	Applicable chips	Max 80×80mm Min 1×1 mm
10	Overall dimension	L650×W630×H850mm
11	Temperature Interface	1 pcs
12	Weight of machine	60KG
13	Color	White

bga chip repair machine WDS-620 specifications:

Updated function

Newest WDS-620 is the updated system with 5 modes.It’s Remove,Mount,Weld,Manual and Semi-auto.The mode can be changed freely.It can be used under automatic,semi-auto & manual mode.

Independent 3 heating zones temperature control system

1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.

2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

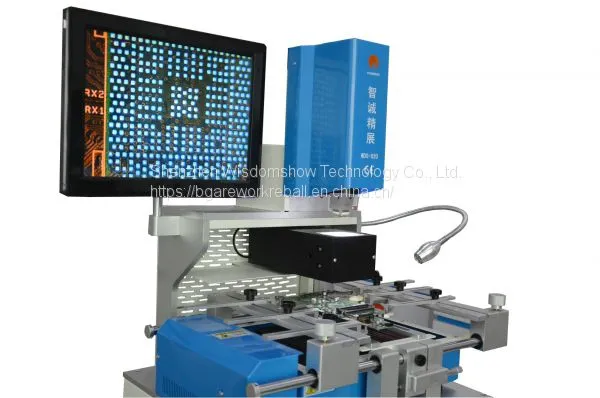

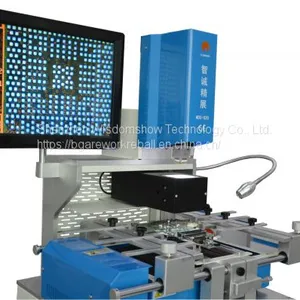

Precision optical alignment system

WDS-620 using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automaticcolor aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement. l

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.z

Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.

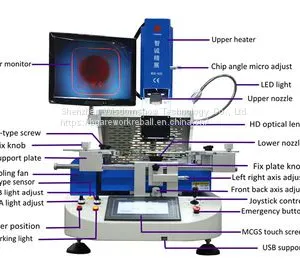

1.HD CCD Camera with optical lens

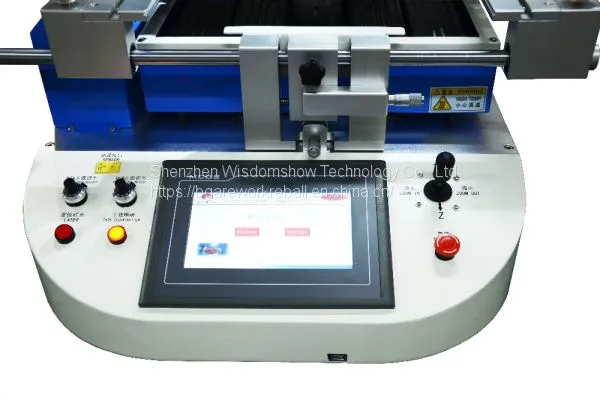

2.High Sensitive MCGS Touch Screen

(5 modes:Remove,Mount,Weld,Semi-auto,Manual)

3.Second Heating Zone Height Adjust Button & heating zone adjust switch

4.Perfect design + Multi-functional button

(Joystick,Laser position,K-sensor,PCB,BGA Light Adjust)

m r-62

Accessories provided

Packaging & Shipping

1,Standard export wooden package for BGA rework station;

2,Delivery in 2 workdays after payment confirm;

3,Shipping by TNT, UPS ,DHL,FEDEX, EMS or by air or by sea;

4,Loading port: Shenzhen or Hongkong

Buyer Feedback

Company Information

Why WDS?

1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;

2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;

3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;

4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;

5. 100% NEW from WDS factory;

6. Over 20 R&D engineers, with 10 year experience;

7. Over 100000 Global User;

8. All models approved CE ISO9001;

9. 100% QC inspect before shipment;

10. High quality & competitive price.

FAQ

*Payment terms
-T/T :30% deposit, Balance before shipment
-Western Union
-Paypal
-Aliexpress
-Escrow
*BGA application
-Laptop notebook motherboard bga rework and repair;
-Game consoles applications such as xbox Ps3 Wii bga rework and repair;
-Large circuit board maintenance, and mobile phone motherboard such small small-sized chip.
*Training & Warranty
Life-time free training of operation and maintenance.
Warranty:lifetime free service ,one year warranty. the 1st year is free,ONLY spare parts charged after the 1st year. Reply within 24hours,7 days/week.
Training and warranty can be from the overseas local office or Shenzhen Wisdomshow office directly.
