Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser

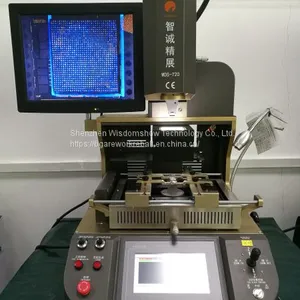

Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser thumbnail-1
Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser thumbnail-2

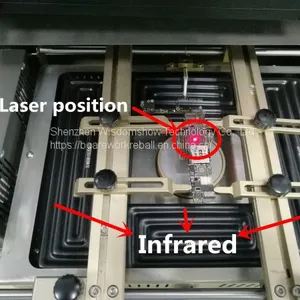

Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser thumbnail-3

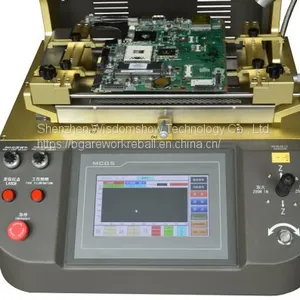

Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser thumbnail-4
Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser thumbnail-5
Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser photo-1

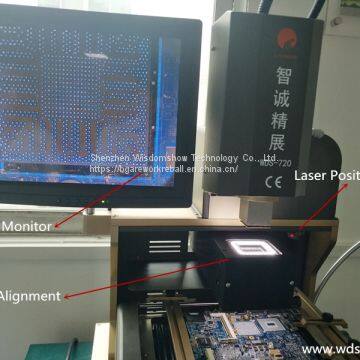

Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser photo-2

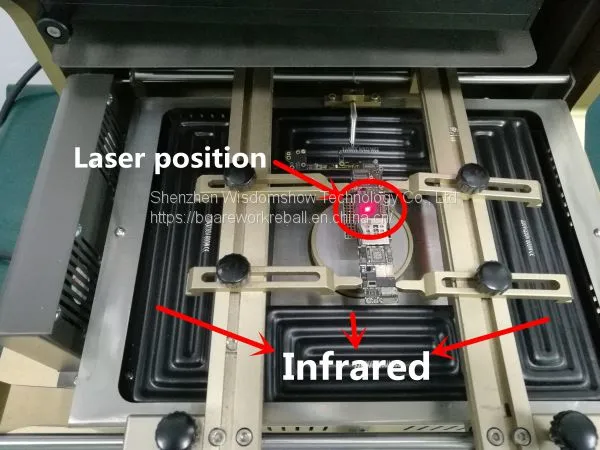

Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser photo-3

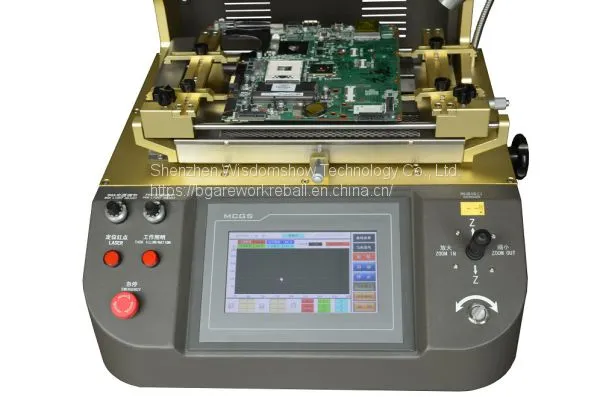

Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser photo-4

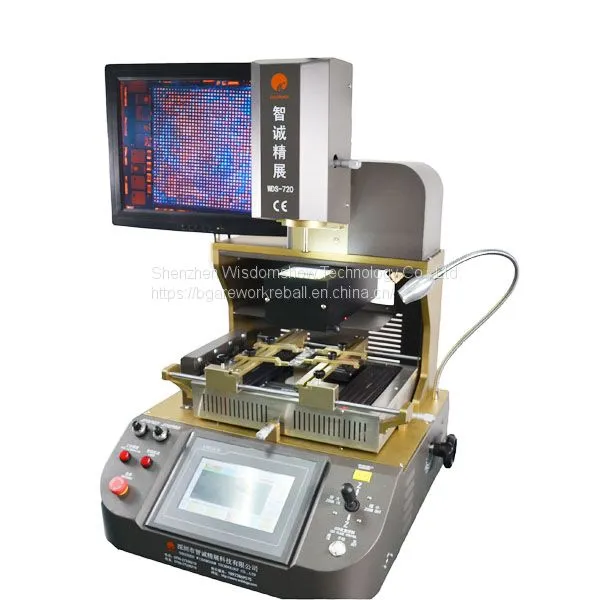

Most Affordable WDS-720 Automatic Smd Soldering Bga Rework Station With Laser photo-5
US$ 1 - 4500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
WDS
Place of Origin:
China
Model Number:
WDS-720
Contact Supplier Request Quote Chat Now
Shenzhen Wisdomshow Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen,HK
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WDS
Place of Origin China
Model Number WDS-720
Certification CE,ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 60kg
Voltage 110V/220V
Usage repair motherboard and chip,like laptop,desktop,computer,playstation,mobile phone
Dimensions L450×W480×H670mm
Rated Duty Cycle 100%
Current dependable
Rated Capacity 4200W

44



Most affordable WDS-720 automatic smd soldering bga rework station with laser



Skype: salesool-wisdomshow

WhatsApp/Wechat:+86 15573072473

Product Description



WDS-720 bga rework station video demo:

https://youtu.be/OFjAsZUOLLE



WDS-720 BGA rework station

^^Parameter of WDS-720 motherboard repair machine price



1

Usage

Mobile phone IC chipset repair,iPad,Macbook laptop motherboard repair

2

Power supply

AC 220V±10% 50/60Hz

3

Total power

Max 4200W

4

Heater power

Upper temp.zone 1200W,Down temp.zone 1200W,IR 1800W

5

Electrical material

Driving motor+PLC smart ntroller+MCGS touch screen

6

Temperature controlling

(high precision K-sensor)(Closed Loop),independent ntroller,the precision can reach ±1℃

7

Locating way

V shape slot,PCB support jigs can adjust,Laser positioning

8

PCB size

Max 200×260mm Min5×5mm

9

Applicable chips

Max 60×60mm Min 1×1 mm

10

Overall dimension

L450×W480×H670mm

11

Temperature Interface

1 pcs

12

Weight of machine

35KG

13

Color

Gold+gray



^^Features:

Camera auto in & out

Optical system

Industry prism+HD industry camera

Working mode

5 modes for choosing: semi auto, manual,weld,remove,mount



^^ Full Specification of motherboard repair machine price WDS-720



Independent 2 heating zones temperature control system
1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;temperature precision control within ±1℃.8 segment temperature control independently.
2.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

Superior safety protection function
With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any le ic repairing tools

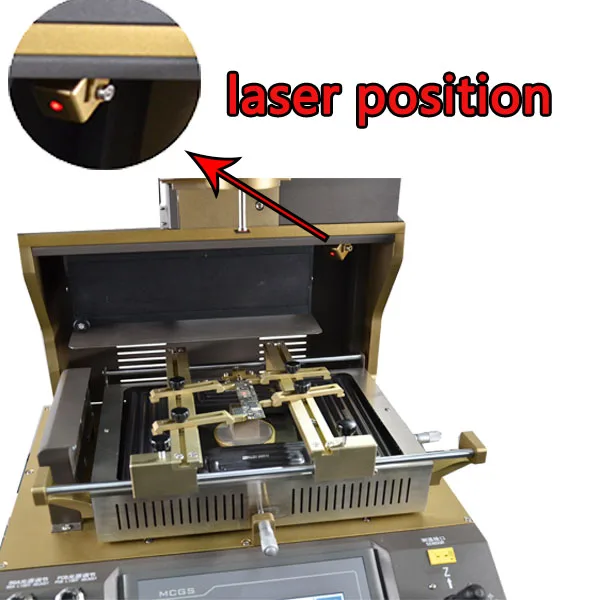

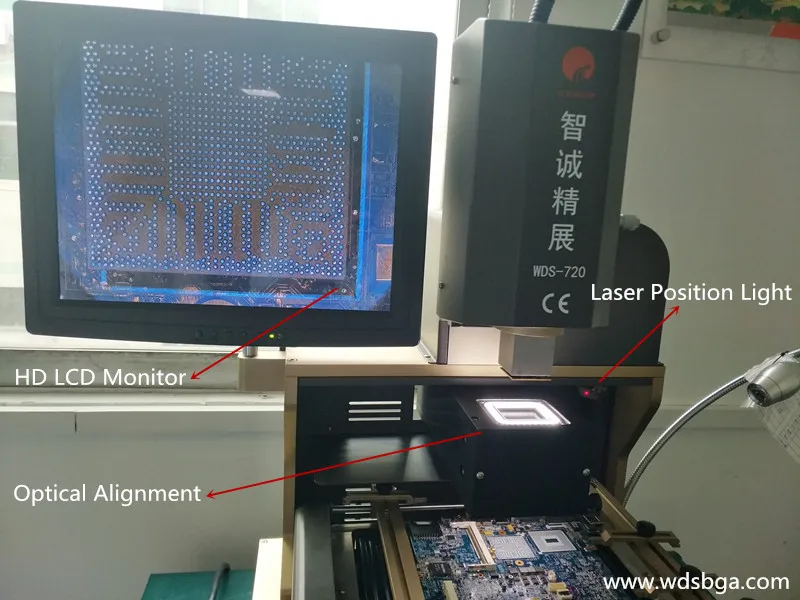

WDS-720 bga rework station'WDS-720 BGA rework station,photobank (1)WDS-720 bga rework station'WDS-720 BGA rework station.

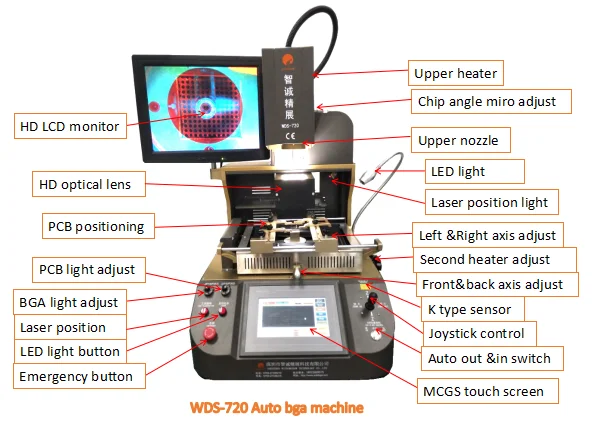

mobile bga repair machine





Packaging & Shipping

1,Standard export wooden package for BGA rework station;

2,Delivery in 2 workdays after payment confirm;

3,Shipping by TNT, UPS ,DHL,FEDEX, EMS or by air or by sea;

4,Loading port: Shenzhen or Hongkong

WDS-520 big quantity to poland

Buyer Feedback
wds bga station
bga rework

Hot selling WDS-620

620 bga rework station

Company Information



Why WDS?

1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;

2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;

3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;

4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;

5. 100% NEW from WDS factory;

6. Over 20 R&D engineers, with 10 year experience;

7. Over 100000 Global User;

8. All models approved CE ISO9001;

9. 100% QC inspect before shipment;

10. High quality & competitive price.





bga reballing machine bga repair machine



FAQ



*Payment terms
-T/T :30% deposit, Balance before shipment
-Western Union
-Paypal
-Aliexpress
-Escrow
*BGA application
-Laptop notebook motherboard bga rework and repair;
-Game consoles applications such as xbox Ps3 Wii bga rework and repair;
-Large circuit board maintenance, and mobile phone motherboard such small small-sized chip.
*Training & Warranty
Life-time free training of operation and maintenance.
Warranty:lifetime free service ,one year warranty. the 1st year is free,ONLY spare parts charged after the 1st year. Reply within 24hours,7 days/week.
Training and warranty can be from the overseas local office or Shenzhen Wisdomshow office directly.
