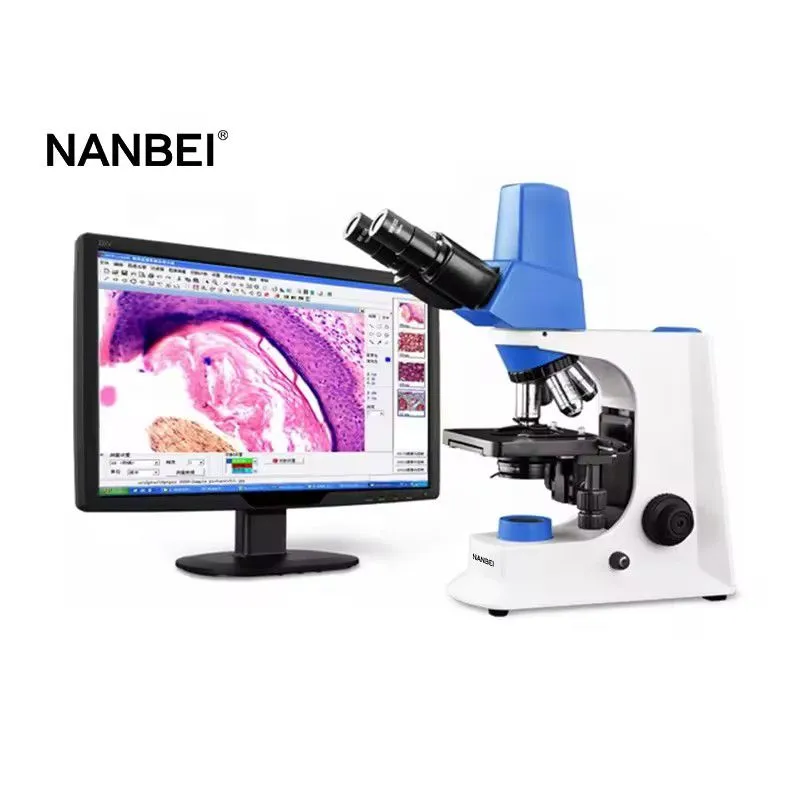

Usb digital video microscope driver camera with lcd screen
Feature and Description
1.seamless connection of the integrated digital fuselage, with dust, moisture, disassembly characteristics
2.High-resolution imported CMOS progressive scan color image sensor
3.Powerful OPTPro micro image analysis software
asurement, counting, image stitching, integration and other professional features
5.Ideal for digital interactive classrooms
Usage and Application
Applicable to medical laboratory, laboratory research, university and college teaching
Technical data
Parameters
mage acquisition equipment |
3.2 million pixels 1/2 "CMOS Progressive scanning of color image sensors |
5 million pixels 1/2 "CMOS Progressive scanning of color image sensors |
Resolution |
2048 × 1536 pixels (max) |
2952 × 1944 pixels (max) |
Frame rate |
15~30 fps |
15~30 fps |
Optical camera lens |
0.5× |
|
data transmission |
Plug and play USB2.0 image data interface, transfer rate 480mps, no external power supply |
|
operating system |
Support Windows operating system |
|
Image analysis software |
OPTPro digital microscopic image analysis software |
|
Supporting
Name |
specification |
Configuration |
Host |
Infinite Distortion Correction Optical System |
Y |
eyepiece |
WF10X/20mm |
Y |
|
Infinity field Achromatic objective lens |
EPLAN 4X/0.10 |
Y |
EPLAN 10X/0.25 |
Y |
|
EPLAN 40X/0.66(S) |
Y |
|
EPLAN 100X/1.25(S,Oil) |
Y |
|
Observation tube |
320/500 megapixel built-in integrated digital observation head |
Y |
converter |
Inclined internal positioning four-hole converter (optional for five-hole converter) |
Y |
Object table |
Mechanical moving stage, an area of 145 mm × 140 mm, imported triangular guide, Moving range 76 mm × 52 mm, the cursor scale 0.1mm, double clip structure |
Y |
Condenser |
Abbe chisel, N.A.1.25, with variable light bar |
Y |
Focusing device |
Coaxial focus, coarse stroke 26mm, fine-tune the grid value of 2μm, coarse tune with elastic adjustment |
Y |
Lighting |
3W-LED cold light source (wide voltage input: 100V ~ 240V), brightness adjustable |
Y |
6V / 20W halogen (wide voltage input: 100V ~ 240V), brightness adjustable |
O |
|
Phase contrast device |
10X/20X/40X/100X Unlimited field field phase contrast lens and phase contrast board |
O |
Dark field device |
Dark field condenser (dry, wet) |
O |
Polarizing device |
Polarizer, analyzer |
O |
note:“Y”Essential parts,“O”Optional parts
