BK5000 Trinocular Biological Microscope With Digital Camera

BK5000 Trinocular Biological Microscope With Digital Camera thumbnail-1
BK5000 Trinocular Biological Microscope With Digital Camera photo-1
US$ 660 - 1050 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Model Number:
BK5000
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NANBEI
Place of Origin China
Model Number BK5000
Theory Other, Lab Microscope
Drawtube Other, Multi

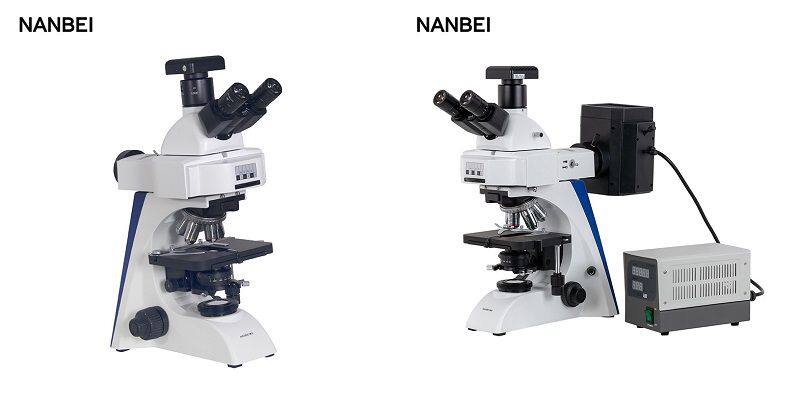

BK5000 Trinocular Biological Microscope with Digital Camera

Performance characteristics:

● Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation.

● Dark field condenser（dry）available to 4X-40X Objective.

● Dark field condenser (wet) available to 100X Objective.

● 10X/20X/40X/100X Independent Phase Contrast Unit.

● Infinity Plan Objectives

● Polarizer, analyzer for simple polarizing unit.


Specification

Items
Specification
Outfits
Eyepiece
WF10×／20mm (23.2mm)
●●
Infinity Plan Objectives
PLAN 4×／0.10
W.D.=12.10mm
●
PLAN 10×／0.25
W.D.=4.64mm
●
PLAN 20×／0.40(S)
W.D.=2.41mm
●
PLAN 40×／0.66(S)
W.D.=0.65mm
●
PLAN 100×／1.25(S, Oil)
W.D.=0.12mm
●
PLAN 2.5×／0.07
W.D.=8.47mm
○
PLAN 60×／0.80(S)
W.D.=0.33mm
○
PLAN 100×／1.15(S, W)
W.D.=0.19mm
○
Seidentopf Binocular Head
Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm
●
Seidentopf Trinocular Head
Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm,
Light Distribution: 100: 0 / 80:20
○
Nosepiece
Quintuple
●
Mechanical Stage
Stage Size: 175mm×145mm,Travel: 78mm×55mm
Coaxial Coarse and Fine Focusing Knobs
Two Slide Holder
●
Integrated stage
Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Two-slide holder
○
Condenser
Abbe N.A. 1.25 with iris diaphragm.
●
Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm.
○
Koehler Illumination
Wide voltage input: 100V～240V
Field diaphragm , center adjustable
12V/20W Halogen Lamp
○
6V/30W Halogen Lamp
○
3W-LED Illumination
●
Filter
Blue
●
Green /Amber /Grey
○
C-mount
1×/0.5×/0.75×C-mount (focus adjustable
○

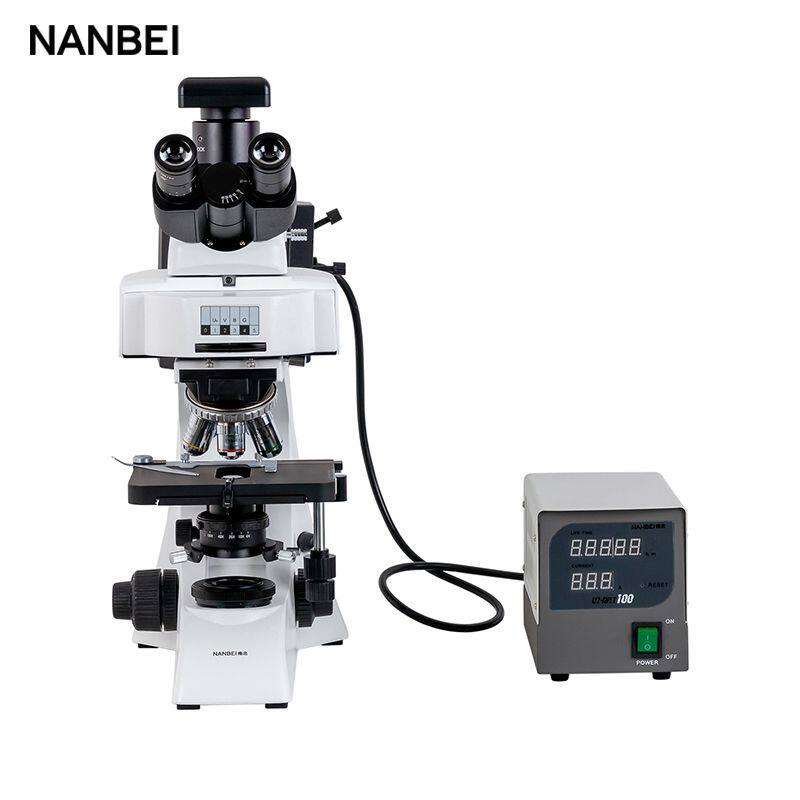

Fluorescence Attachment
Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.
○
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp.
○

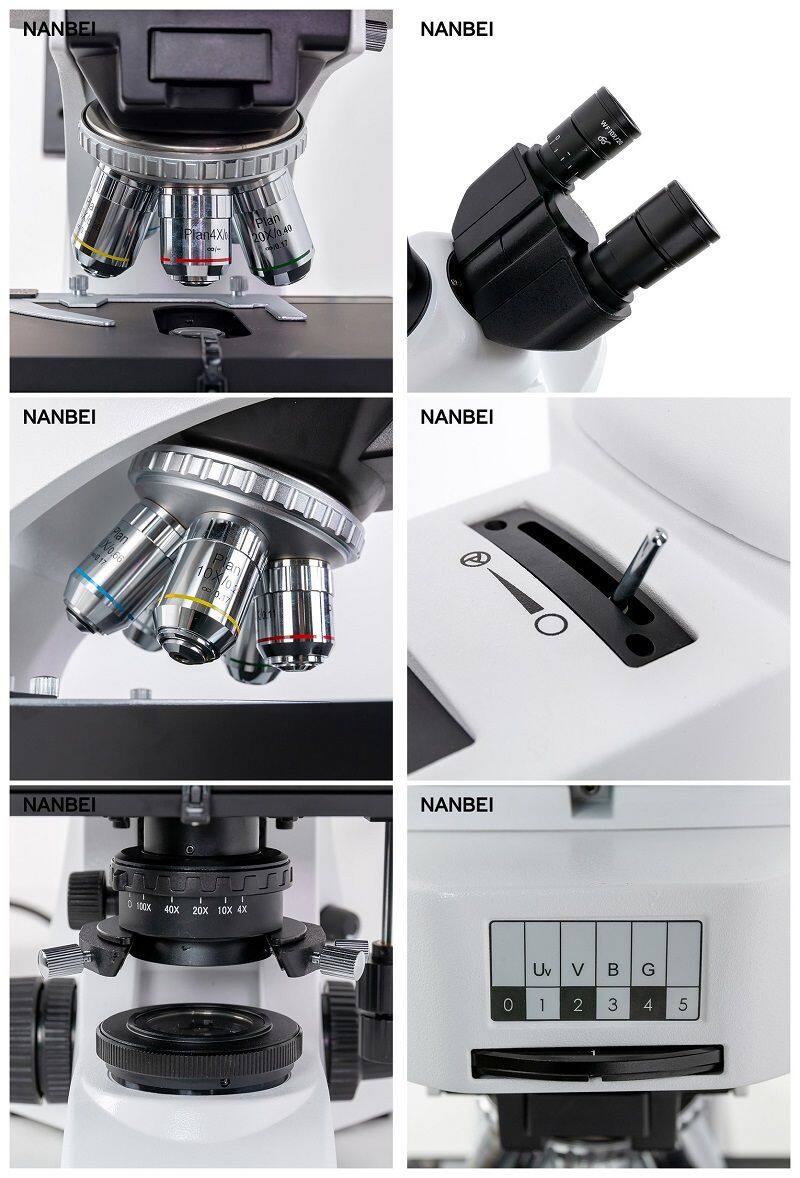

Phase Contrast Unit
Quintuple hole turret
10× /20× /40× /100× phase contrast objective
○
Independent slot
10× /20× /40× /100× phase contrast objective
○
Dark Field Unit
Dark field condenser (dry)，apply to 4×- 40× objective
○
Dark field condenser (wet)，apply to 100× objective
○
Polarizing Attachment
Analyzer / Polarizer
○

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Packing Size: 542mm×265mm×355mm

Gross Weight: 12 kgs

Net Weight: 10kgs
