Telescopic Channel Drawer Slide Roll Forming Machine
US$ 21500 - 25000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
45mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
90 days
Related Products
-
Telescopic Channel Drawer Slide Roll Forming MachineUS$ 21500 - 25000MOQ: 1 Set -
EPS Sandwich Panel Metal Roofing Sheet 970 Type EPS Sandwich Roof PanelUS$ 10 - 15MOQ: 1500 Meters
-
Metal Roofing PU Sandwich Panel Polyurethane Sandwich PanelUS$ 10 - 15MOQ: 1500 Meters
-
970 Type EPS Sandwich PanelUS$ 10 - 15MOQ: 1500 Meters
-
970 Insulation Board Metal Roofing Sheet Sandwich Panel Water Proof Sandwich SheetUS$ 10 - 15MOQ: 1500 Meters
Brand Name
OEM
Place of Origin
China
Model Number
45mm
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
6
Dimension(L*W*H)
4500*850*1500 mm
Production Capacity
10m/min
Condition
New
Voltage
380V
Power(W)
11KW

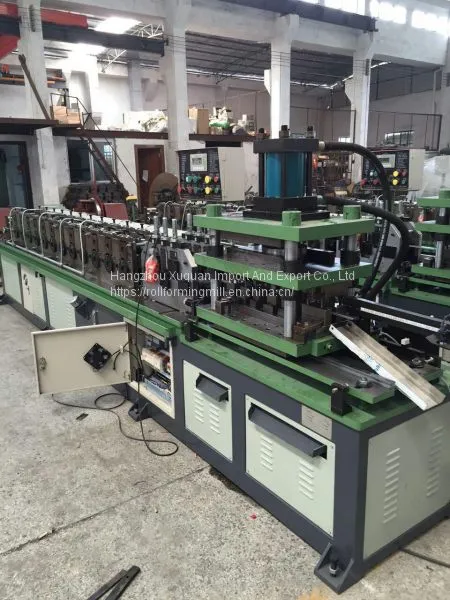

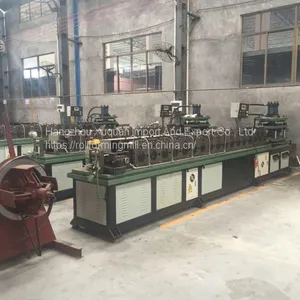

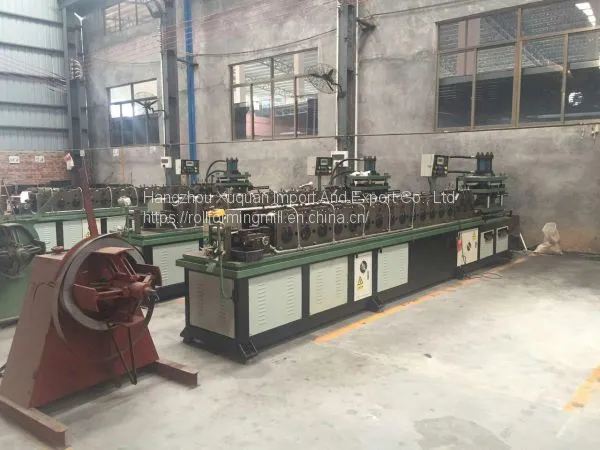

Telescopic Channel Drawer Slide Roll Forming Machine
Roll Forming Machine for 45# Drawer Slide
Technical Parameters:
| 1. | Width | 45mm | |||||
| 2. | Material Thickness | 1.2 mm | |||||
| 3. | Raw Material | Carbon Steel Cold Sheet | |||||
| 4. | Yield strength | 235 PMa | |||||
| 5. | Roll Station | 12 forming stations | |||||
| 6. | Roller material | Cr12MoV steel with harden treatment HRC58°～60, CNC Process | |||||
| 7. | Shaft material | 40Cr Steel | |||||
| 8. | Forming speed | 8-10 meters/min | |||||
| 9. | Voltage | 380V/50Hz/3PH Control: AC 220V/DC 24V | |||||
| 10. | Total Power | About 11 KW (Up to final design) | |||||
| 13. | Dimension | 4500*850*1500 mm ( Length * Width * Height ) Suggested place: 6 to 8 meters length | |||||
Work Flow:
De-coiling→Rollformer→ Straightening →Hydraulic Punching&Cutting for Finial Product
EQUIPMENT LIST:
| 1. | 1 Ton Manual Un-coiler | 3 Sets | |||||
| 2. | Roll Former (12 Roll Stations) | 3 Sets | |||||
| 3. | Strengthening Device | 3 Sets | |||||
| 4. | Hydraulic Post-Punching&Cutting for Finial Product | 3 Sets | |||||
| 5. | Electric control system | 3 Sets | |||||
Electric Control System
| Function: | Setting parameters, control roll forming line | |||
| Type: | Touch Screen, "Schneider" Brand | |||
| PLC: | "Schneider" Brand | |||
| Inverter: | "Schneider" Brand | |||
