27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment

27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment thumbnail-1
27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment thumbnail-2
27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment thumbnail-3
27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment thumbnail-4
27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment thumbnail-5
27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment photo-1

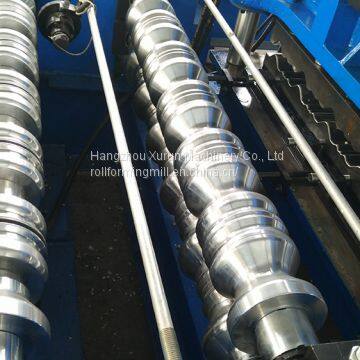

27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment photo-2

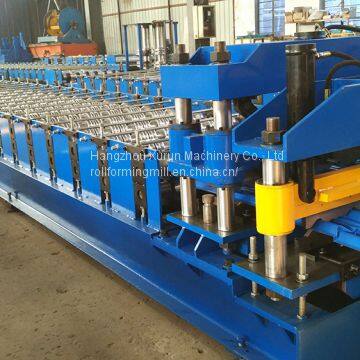

27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment photo-3

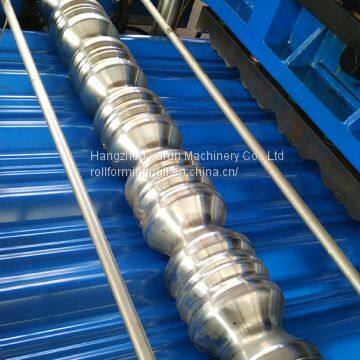

27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment photo-4

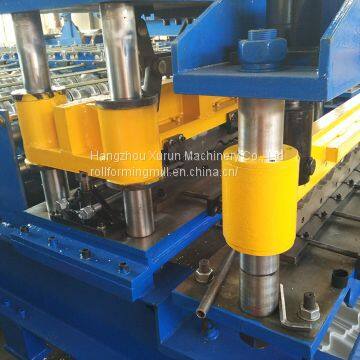

27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment photo-5
US$ 28000 - 35000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XURUN
Place of Origin:
China
Model Number:
27-190-950
Contact Supplier Request Quote Chat Now
Hangzhou Xuquan Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Ningbo
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XURUN
Place of Origin China
Model Number 27-190-950
Use Roof
After-sales Service Provided No overseas service provided
Warranty 1 year
Weight About 6 tons
Dimension(L*W*H) 10*2*1.5m
Production Capacity 15 meter/min
Condition New
Voltage 380V
Power(W) 7.7KW
Type Tile Forming Machine
Tile Type Colored Steel
Product: Roof Tile Roll Forming Machine Color: Painted Blue, Green, Or Customized
Profile: 27-190-950 Availbale Material Thickness: 0.3-0.8mm
Material Sheet: PPGI Coil, Galvanized Sheet, Aluminium Sheet


Ø Model No:
XR27-190-950 Roof Tile Roll Forming Machine

Ø Section Formed:
27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment

Ø Technical Parameters:

1. Max. Coil Width 1200 mm
2. Material Thickness 0.3-0.8 mm
3. Raw Material Prepainted sheet
4. Yield strength 235 Mpa
5. Roll Station 18 forming stations
6. Roller material #45 (Equivalent To ASTM1045 Steel), CNC Machining, with hard chrome film
7. Shaft material #45 steel (Equivalent To ASTM1045), hardening and tempering treatment
8. Forming speed 15 m/min ( Exclude Cutting Speed)
9. Voltage 380V/50Hz/3PH Control: AC 220V/DC 24V
10. Total Power About 13 KW (Up to final design)
11. Shipment 1x40'GP Container
12. Color Bule and Yellow or customized


Ø Work Flow:
De-coiling→ Entry Guide→ Roll Forming→Hydraulic Step Pressing→ Hydraulic Post-Cutting→ Run Out Table

27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment


Ø EQUIPMENT LIST:

1. 5 Ton Manual Un-coiler 1 Set
2. Entry Guide 1 Set
3. Roll Former 18 forming stations 1 Set
4. Hydraulic Step Pressing Device 1 Set
5. Hydraulic Post-Cutting Device 1 Set
6. Run Out Table 2 PCS
7. Electric control system 1 Set
8. Hydraulic station 1 Set



27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment



27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment

27-190-950 Roof Tile Roll Forming Machine Metal Sheet Panel Roll Former Steel Profiling Equipment


Product Tags: Roof Tile Roll Forming Machine , Roll Forming Machine , Steel tile roll forming line
