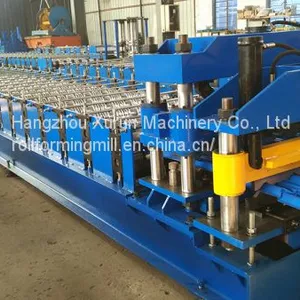

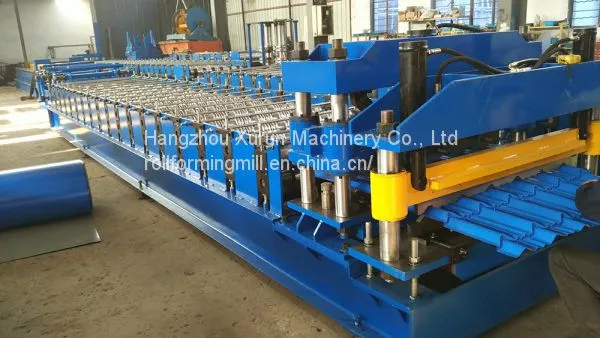

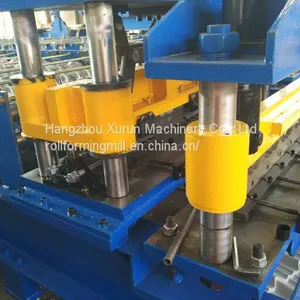

XR27-190-950 Type Steel Sheet Roll Forming Machine for Multi Wave Roof Tile Machine

FOB Price

USD $28000 - $35000 / Set

1 Set(Min.Order)

Product Details

Brand Name:	XURUN	Place of Origin:	China	Model Number:	27-190-950
Use:	Roof	After-sales Service Provided:	No overseas service provided	Warranty:	1 year
Weight:	About 6 tons	Dimension(LWH):	1021.5m	Production Capacity:	15 meter/min
Condition:	New	Voltage:	380V	Power(W):	7.7KW
Type:	Tile Forming Machine	Tile Type:	Colored Steel

Product:	Roof Tile Roll Forming Machine	Color:	Painted Blue, Green, Or Customized
Profile:	27-190-950	Availbale Material Thickness:	0.3-0.8mm
Material Sheet:	PPGI Coil, Galvanized Sheet, Aluminium Sheet

Ø Model No:
XR27-190-950 Roof Tile Roll Forming Machine

Ø Section Formed:

Ø Technical Parameters:

1.	Max. Coil Width	1200 mm
2.	Material Thickness	0.3-0.8 mm
3.	Raw Material	Prepainted sheet
4.	Yield strength	235 Mpa

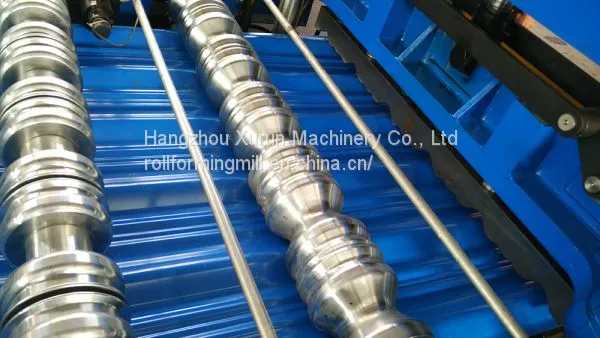

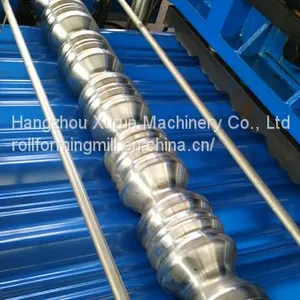

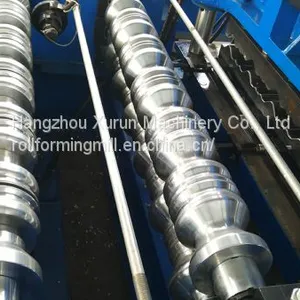

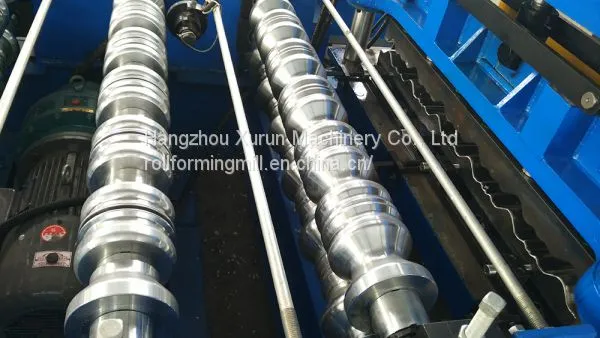

5.	Roll Station	18 forming stations
6.	Roller material	#45 (Equivalent To ASTM1045 Steel), CNC Machining, with hard chrome film
7.	Shaft material	#45 steel (Equivalent To ASTM1045), hardening and tempering treatment
8.	Forming speed	15 m/min ( Exclude Cutting Speed)
9.	Voltage	380V/50Hz/3PH Control: AC 220V/DC 24V
10.	Total Power	About 13 KW (Up to final design)
11.	Shipment	1x40'GP Container
12.	Color	Bule and Yellow or customized

Ø Work Flow:
De-coiling→ Entry Guide→ Roll Forming→Hydraulic Step Pressing→ Hydraulic Post-Cutting→ Run Out Table

Ø EQUIPMENT LIST:

1.	5 Ton Manual Un-coiler		1 Set
2.	Entry Guide		1 Set
3.	Roll Former	18 forming stations	1 Set

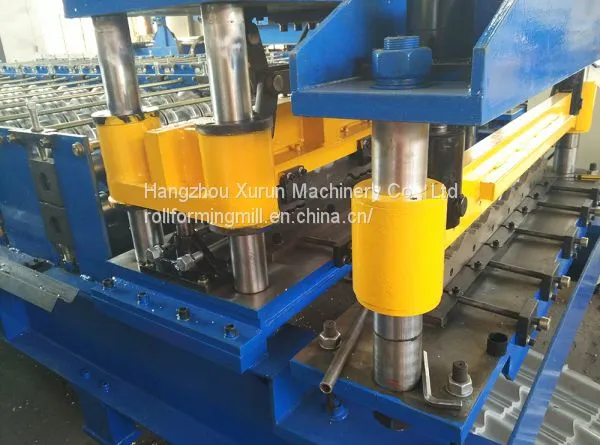

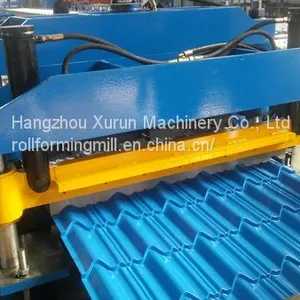

4.	Hydraulic Step Pressing Device		1 Set
5.	Hydraulic Post-Cutting Device		1 Set
6.	Run Out Table		2 PCS
7.	Electric control system		1 Set
8.	Hydraulic station		1 Set

Hangzhou Xuquan Import And Export Co., Ltd: Contact nameReanna Tu; Phone86-571-83883178; AddressXiaoshan District Hangzhou,Zhejiang
