Professional Underwater Pipeline Duct Sewer Sewage Pipe Inspection Camera TEC-Z710DK
Top quality
Best price
First class service.
welcome to contact me with more details~
Specification |
|

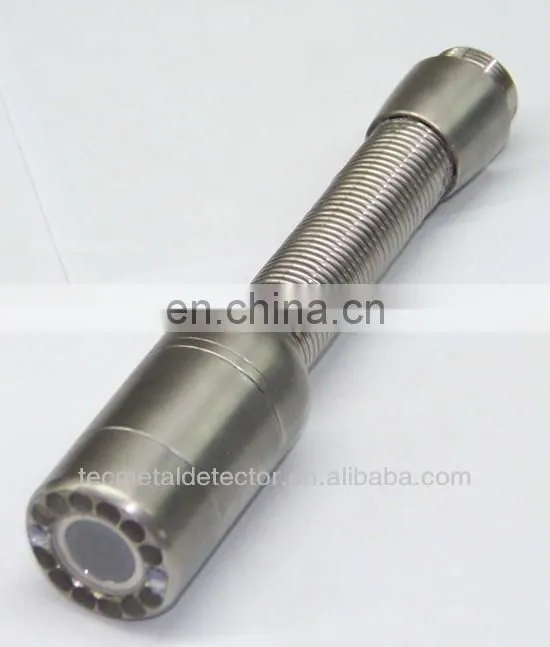

camera
|
1. camera size: 23mmx120mm front size:45mm |
2.Camera case material: stainless steel house stainless steel 304 |
3. Camera glass material: sapphir glass |
4. sensor size: 1/4 inch |
5.Total Pixels: PAL: 720X576 NTSC: 720X480 |
6. view angle: 120° |
7. camera light: 12PCS white LEDS |
8. Special gold point touch connector |
9. waterproof: IP68 |
10.camerawork current: 100MA camara power supply:DC 12V |
11. LEDS ADJUASTABLE |
12.Work temperature: -10°C-50°C |
|
monitor
|
1. monitor size: 7inch TFT color monitor |
2. monitor Total Pixels: 1440X234 |
3. monitor power supply: DC 12V |
4. osd language: english |
5. up, down left, right adjustable |
6. 16:9 4: 3 model |
7. sunshade includ |
8. waterproof connector |
9. Work temperature: -10°C-50°C |
|

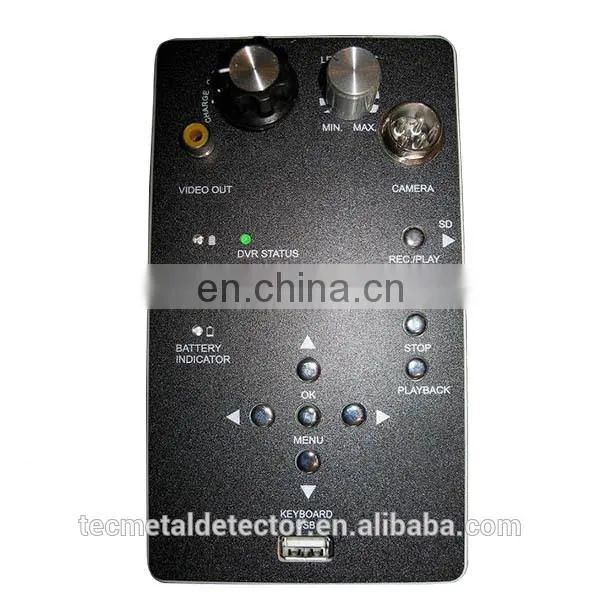

DVR
|
1. DVR power supply: 12V |
2. DVR work current: 200MA |
3. storage medium: SD card (max 32G) |
4. dagital clock and dagital calendar |
5. DVR Total Pixels: 720X576 (D1) |
6. picture snap and movie record |
7. movie format: AVI |
8. audio record (yes) |
9. double earphone output |
Audio input unit |
1. micphone |
2. clip type |
|
Video text input
|
1. language: englsih |
2. keyboard interface 1 PS2keyboard |
3. keyboard interface 2 USB keyboard(need USB to PS2 connector) |
4. text on video(PAL and NTSC) |
5. edit line: PAL 28 letter 15 line NTSC 26 letter 12 line |
6. max edit page: 4 page |
|

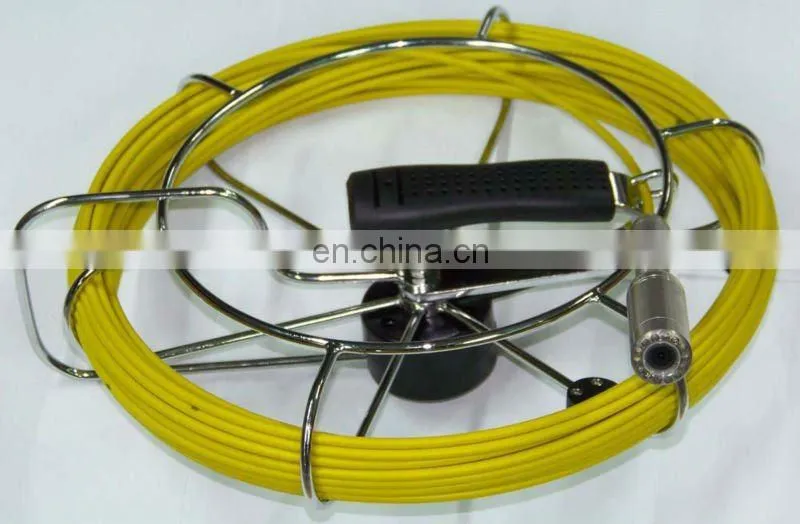

Cable wheel
|
Cable size: 320MM(diameter)X110(h) |
Wire material: fiberglass rod |
Fiberglass length: 20M( standard) |
Fiberglass diameter: 4.8MM |
Fiberglass color: yellow |
battery |
Battey pype: 12V 4000MAH rechargable li –ion battery(18650) |
Used time : 7 hours |
charger |
Input: AC90-260V output: DC 12V 1000MA |
Output cable length: 1.5M |
DC plug diameter : 2.1MM |
box |
box material: fire protection |
Box size: 48cm x 39cm x 19.5cm |
|
SKIDS size |
1. SKIDS1: Φ40MM |
2. SKIDS2: Φ80MM |
|
Weight and cartoon size |
net weight: 7.5KG |
gross weight: 8.5KG |
Single package size |
Double package size |
Package:
Carton Size:23*48*53cm(20-50m cable whole set)
If the cable is longer than 50m cable,then need to packaged into 2 cartons.
Aluminum box
ABS box
Shipping:
1.By Worldwide Express:DHL,Fedex,EMS,UPS,TNT,etc
2.By air or by sea,if the goods weight over 45kg,then by these two ways are economical.
Why choose us?
The Service We Provide - We Take Care Of Your Order
Quality Control
1>All products must go through four checks before manufacture processing.
2> Full check after every individual process finished.
3>Full check after production half-done.
4>Spots check after production packaged before shipping.
Punctual delivery time:
1>We put your order into our tight production schedule, ensure your punctual delivery time.
2>Production / inspection report before your order packed.
3>Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
1>We respect your feed back after receive the goods.
2>We provide 12-24 months warranty after goods arrive.
3>We promise all spare parts available in lifetime use.
4>We lorge your complain within 48hours.
OEM Service
1> we accept all OEM service,if quantity is big,OEM is free of charge,if not,we will charge a little OEM Cost.
CE Certification
