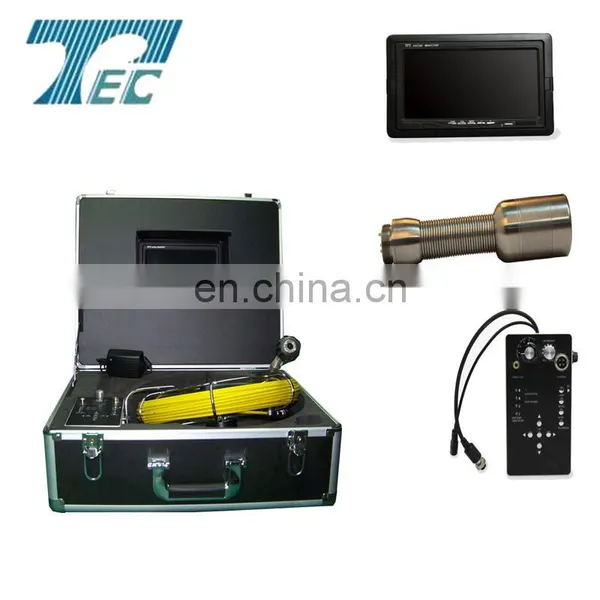

23mm underwater pipe inspection camera with 20m to 100m cable TEC-Z710DM
|
TEC-Z710DM
Specification |
|

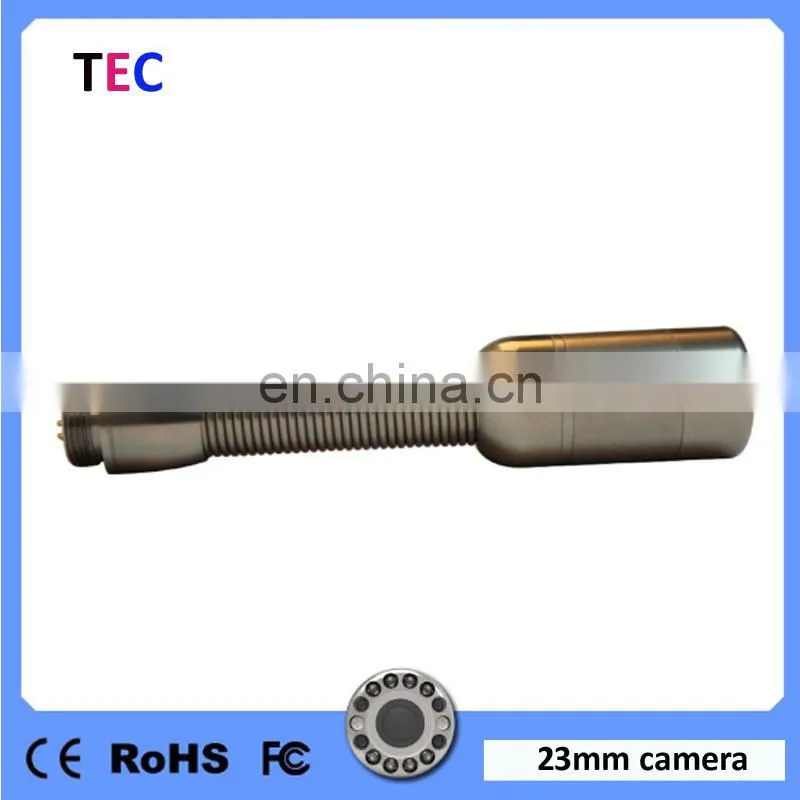

camera
|
1. camera size:23mmx120mm front size:45mm |
2.Camera case material:stainless steel house stainless steel 304 |
3. Camera glass material:sapphir glass |
4. sensor size:1/4 inch |
5.Total Pixels:PAL:720X576 NTSC: 720X480 |
6. view angle:120°. |
7. camera light:12PCS white LEDS. |
8. Special gold point touch connector |
9. waterproof:IP68 |
10.camerawork current:100MA camara power supply:DC 12V |
11. LEDS ADJUASTABLE. |
12.Work temperature:-10°C-50°C |
|

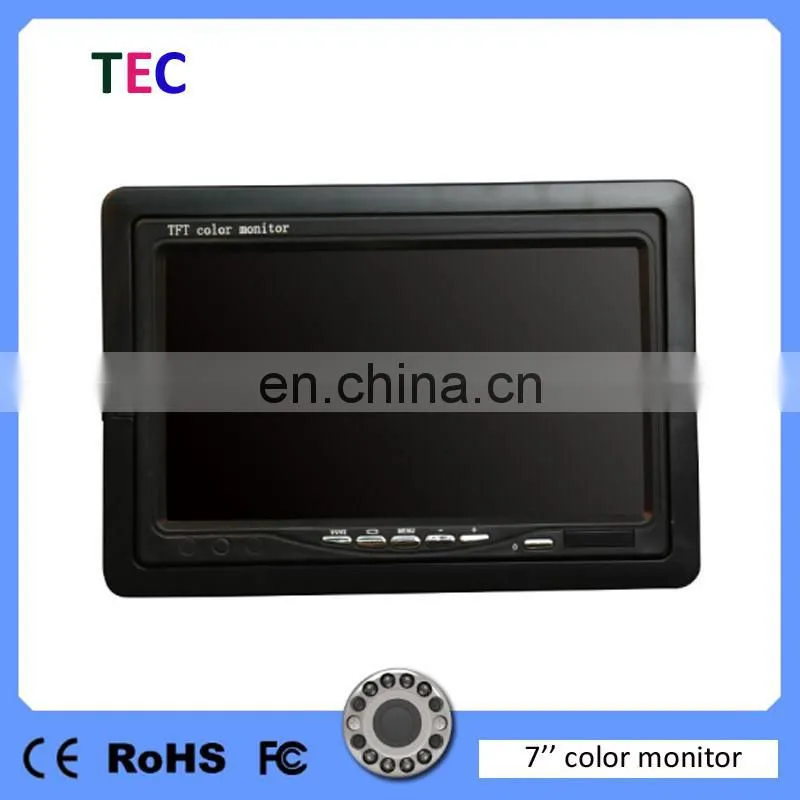

monitor
|
1. monitor size: 7inch TFT color monitor |
2. monitor Total Pixels:1440X234 |
3. monitor power supply:DC 12V |
4. osd language: english |
5. up,down left,right adjustable. |
6. 16:9 4:3 model |
7. sunshade includ |
8. waterproof connector |
9. Work temperature:-10°C-50°C |
|

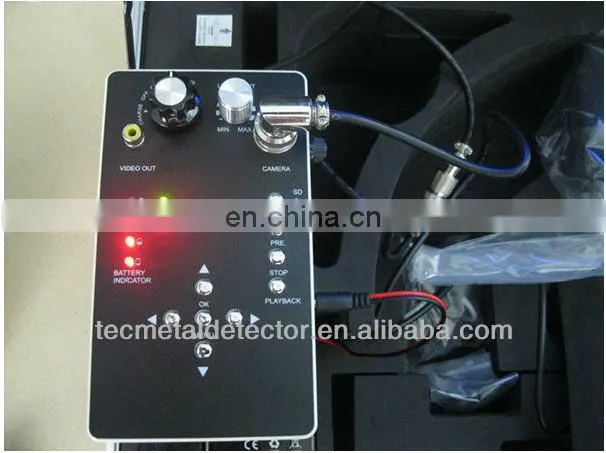

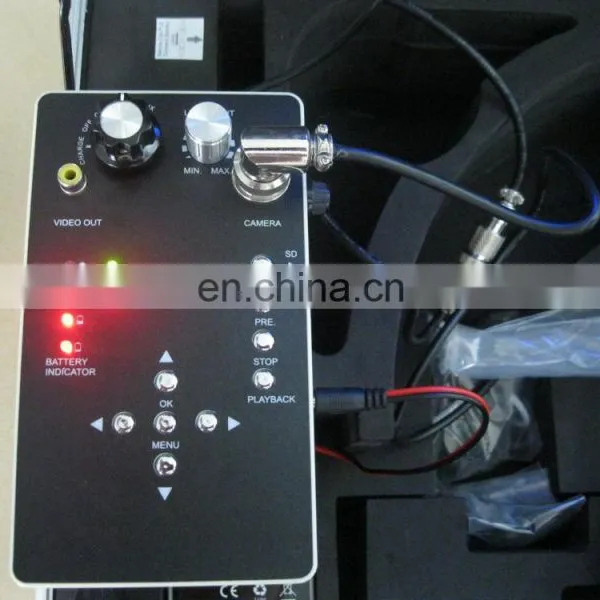

DVR
|
1. DVR power supply: 12V |
2. DVR work current: 200MA |
3. storage medium:SD card (max 32G) |
4. dagital clock and dagital calendar |
5. DVR Total Pixels: 720X576 (D1) |
6. picture snap and movie record |
7. movie format: AVI |
8. audio record (yes) |
9. double earphone output |
Audio input unit |
1. micphone |
2. clip type |
|

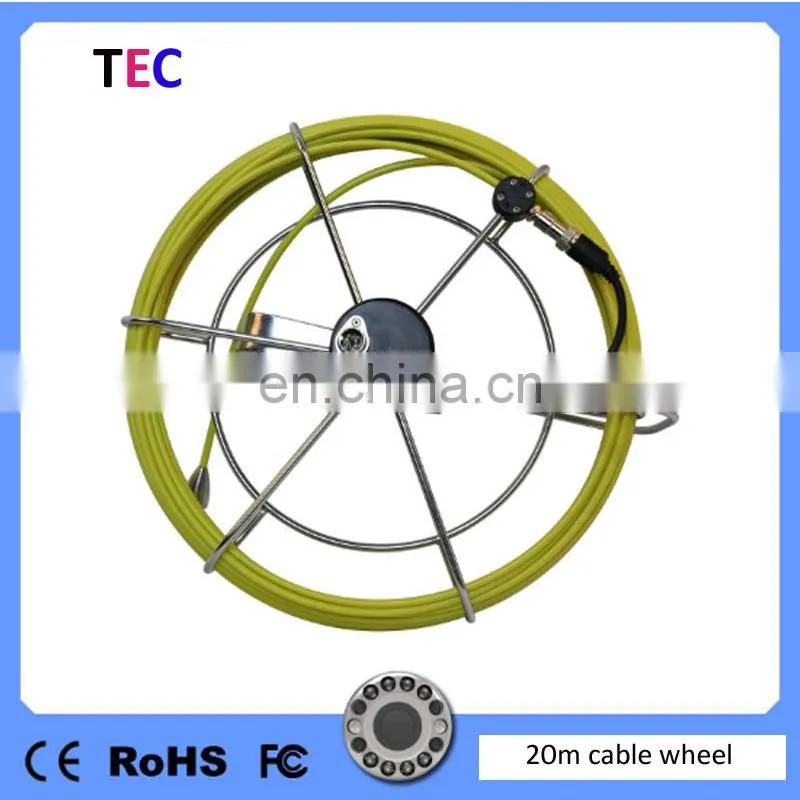

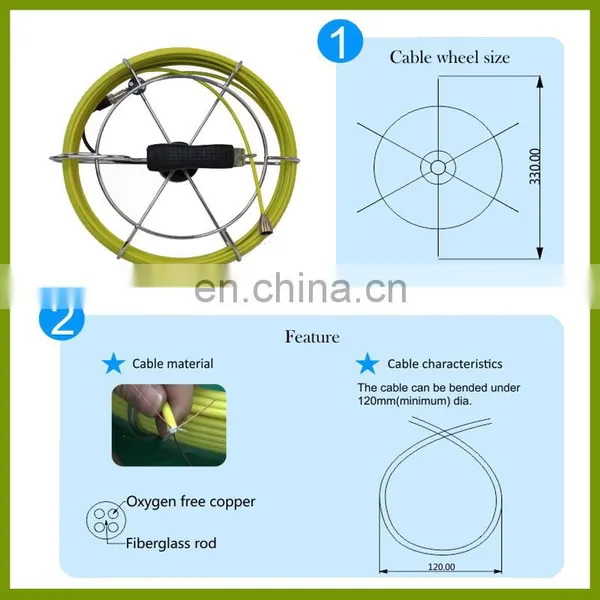

Cable wheel
|
Cable size:320MM(diameter)X110(h) |
Wire material: fiberglass rod |
Fiberglass length:20M( standard) |
Fiberglass diameter:4.8MM |
Fiberglass color:yellow |
|

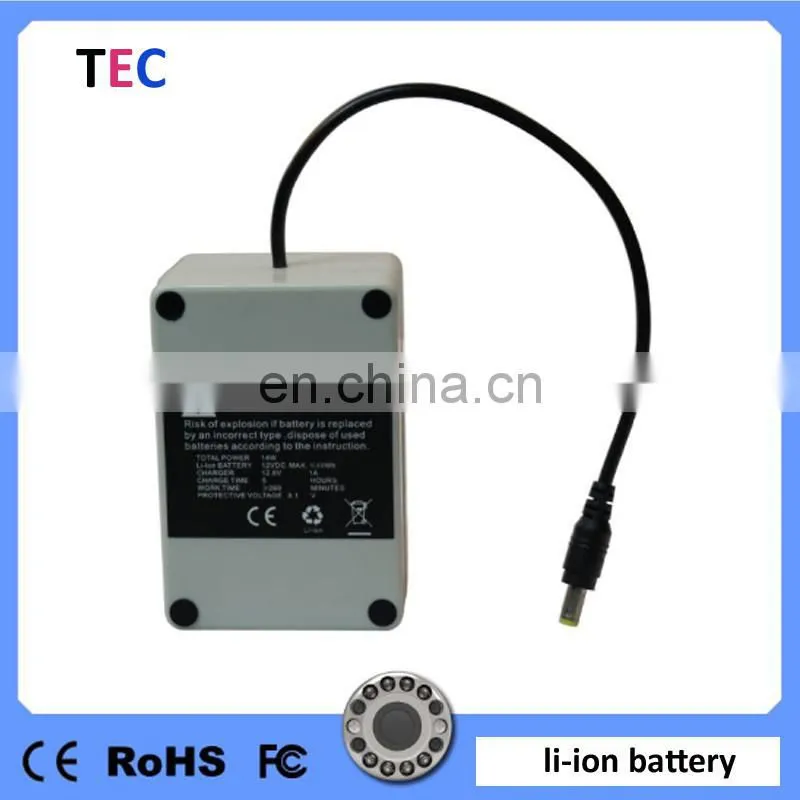

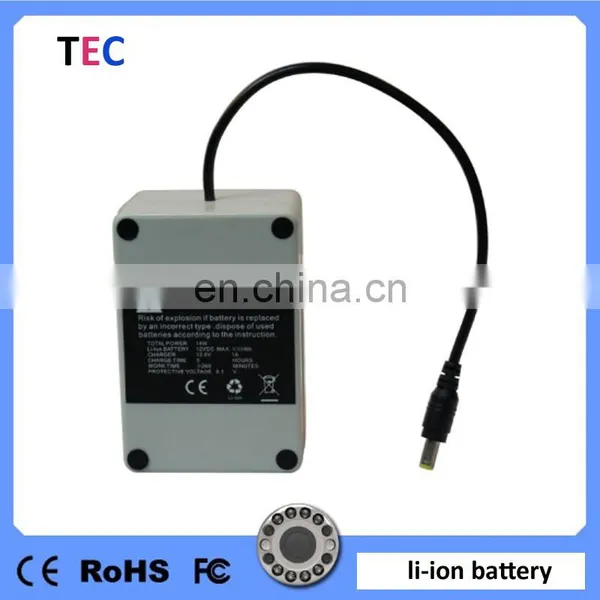

battery
|
Battey pype: 12V 4000MAH rechargable li –ion battery(18650) |
Tatal work time : more 7 hours. |
charger |
input: AC90-260V output: DC 12V 1000MA |
Output cable length:1.5M |
DC plug diameter :2.1MM |

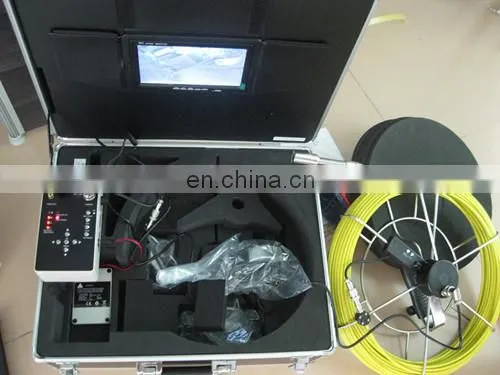

box |
box material:fire protection |
Box size:48cm x 39cm x 19.5cm |
|
SKIDS
|
SKIDS size |
1. SKIDS1:material POM Φ40MM |
2. SKIDS2:material POM Φ80MM |
|
Weight |
net weight: 7.5KG Single |
gross weight: 12KG Single |
Shipping methods
We only support world-famous Express companies (EMS, DHL, UPS, FedEx), faster and safer by Express, For reducing our shipping fee, large size articles
(Walkthrough metal detector gates, Xray security inspection machines, Needles inspection for Food industry, etc) will go air shipping or Ocean shipping
1.By Express:DHL,Fedex,UPS,EMS,TNT,Aramex,etc
2.By Air or Sea(in large quantities)
The Quality of Our Products:
- First of all, we promised that all the products are brand-new.
- Secondly, we have inspected quality before leaving the factory, those include but not limited to specifications, appearance, function, package, accessories and so on.
- Thirdly, we package the products by superior high quality carton to ensure the completeness and low delivery loss.
- If you find out any problem when receive the products, we are in charge of securing service.
Warranty Policy:
In one month, if you’re not satisfied with product or product damaged (Not man-made), you can change unconditionally. (About changing, please contact customer service.), return shipping cost is buyer’s responsibility.
12 months warranty for all accessories and lifelong service.
The Customs:
We will declare on the invoice that it’s a gift or write down a lower price there to help you reduce tax.
However, you will still need to pay the tax for the products if the customs ask.
OEM Service
1> we accept all OEM service,if quantity is big,OEM is free of charge,if not,we will charge a little OEM Cost.
Feedback
1>We will make all efforts to accommodate your need.
2>If you are satisfied with our products, please confirm and leave your positive feedback.
we will do the same for you. Thanks!
3>If you are not satisfied with the item when you received it,
please contact us and we will resolve it for you as soon as possible
4>Welcome your suggestions. Your support and concern will give us more strong power to do better.
Payment:T/T ,Western Union
Delivery Time:We have thousands of products in stock. So, once payment confirmed, we will deliver your goods in 24 hours.
