Hot Sale Pipe Inspection Camera with 20-100m cable TEC-Z710DL
whatsapp:+8615881356927
skype:TEC-Cora
Specification

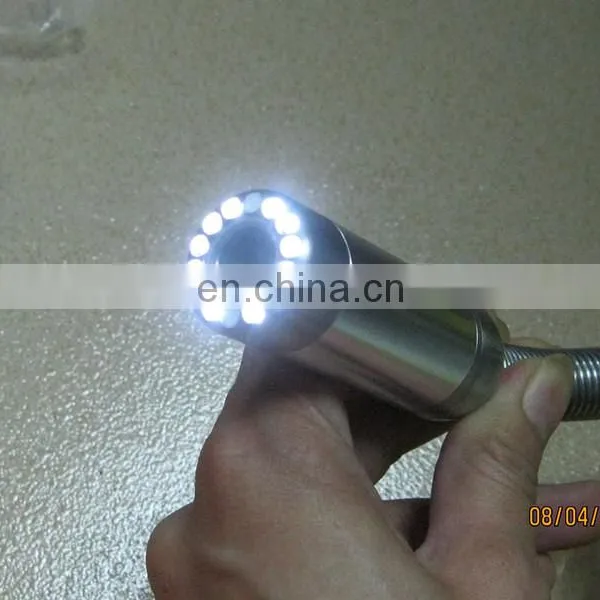

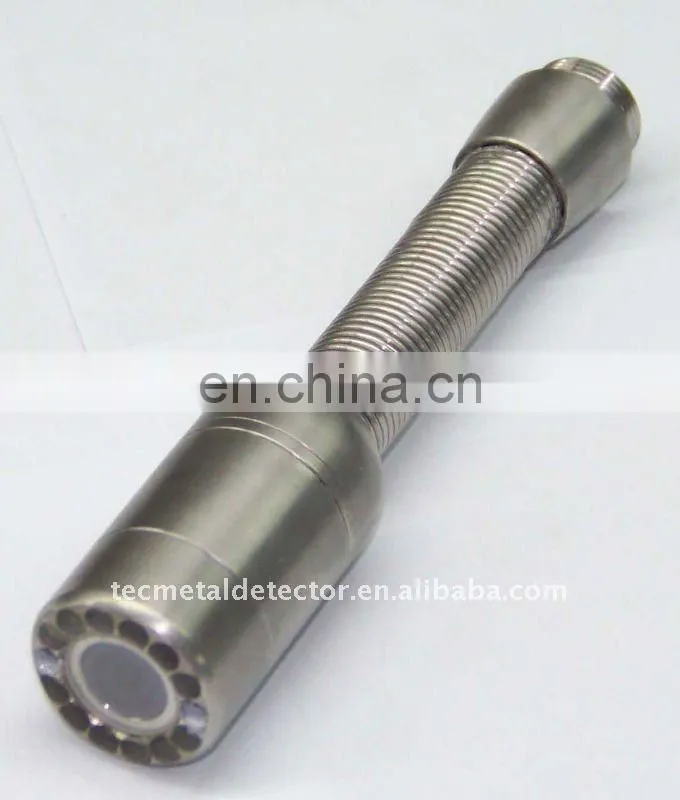

camera
1. camera size:23mmx140mm front size:65mm
2.Camera case material:stainless steel house stainless steel 304
3. Camera glass material:sapphir glass
4. sensor size:1/4 inch
5.Total Pixels:PAL:720X576 NTSC: 720X480
6. view angle:120°.
7. camera light:12PCS white LEDS.
8. Special gold point touch connector
9. waterproof:IP68
10.camerawork current:100MA camara power supply:DC 12V
11. LEDS ADJUASTABLE.
12.Work temperature:-10°C-50°C

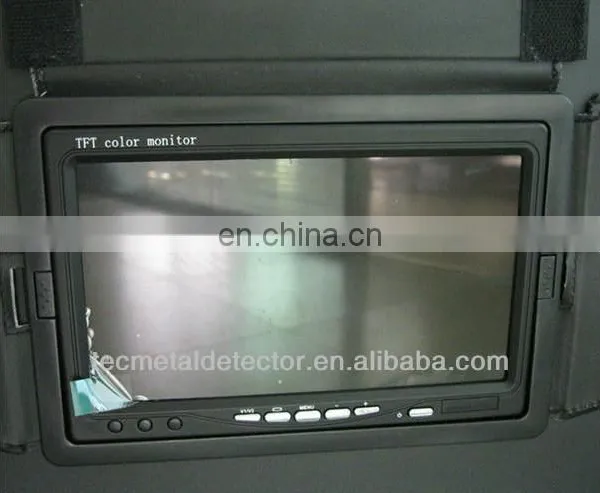

monitor
1. monitor size: 7inch TFT color monitor
2. monitor Total Pixels:1440X234
3. monitor power supply:DC 12V
4. osd language: english
5. up,down left,right adjustable.
6. 16:9 4:3 model
7. sunshade includ
8. waterproof connector
9. Work temperature:-10°C-50°C

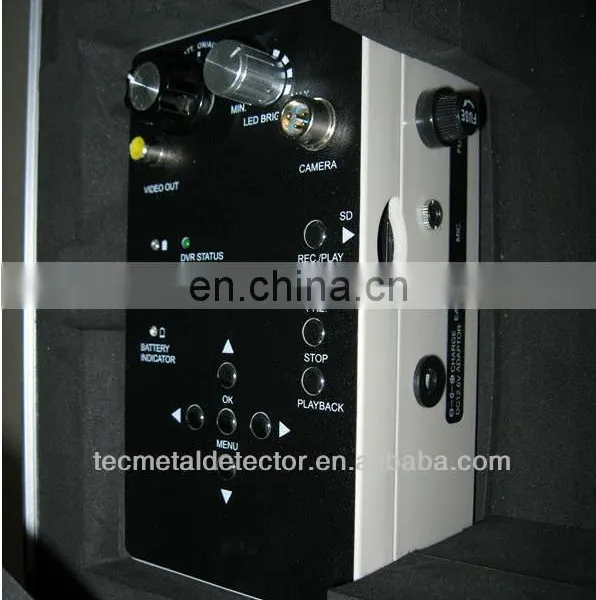

DVR
1. DVR power supply: 12V
2. DVR work current: 200MA
3. storage medium;SD card (max 32G)
4. dagital clock and dagital calendar
5. DVR Total Pixels: 720X576 (D1)
6. picture snap and movie record
7. movie format: AVI
8. audio record (yes)
9. double earphone output
Audio input unit
1. micphone
2. clip type
512HZ FM transmitter
frequency: 512HZ
distance: 5M
modulation: FM

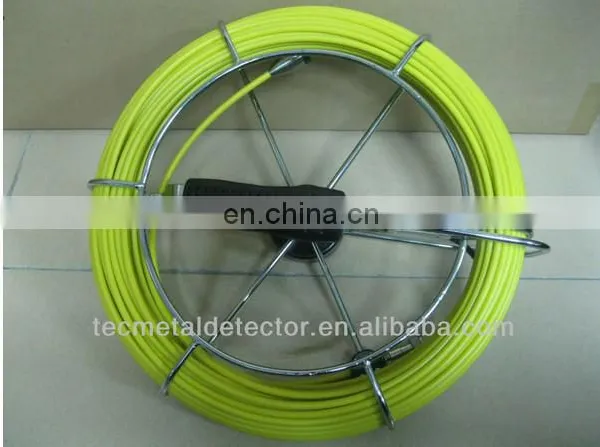

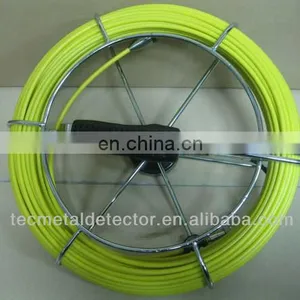

Cable wheel
Cable size;320MM(diameter)X110(h)
Wire material: fiberglass rod
Fiberglass length;20M( standard)
Fiberglass diameter:4.8MM
Fiberglass color:yellow

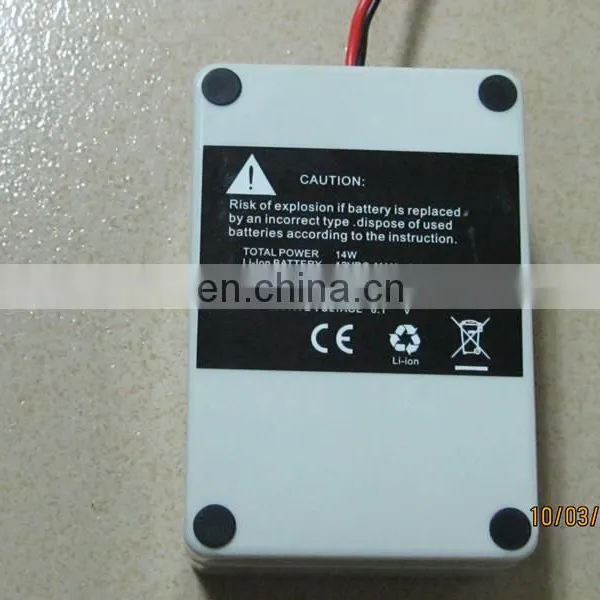

battery
Battey pype: 12V 4000MAH rechargable li –ion battery(18650)
Used time : 7 hours.
charger
input: AC90-260V output: DC 12V 1000MA
Output cable length:1.5M
DC plug diameter :2.1MM
box
box material:fire protection
Box size:48cm x 39cm x 19.5cm
SKIDS size
1. SKIDS1: 40MM
2. SKIDS2: 80MM
Weight and cartoon size
net weight: 7.5KG
gross weight: 8.5KG
512HZ Transimitter
