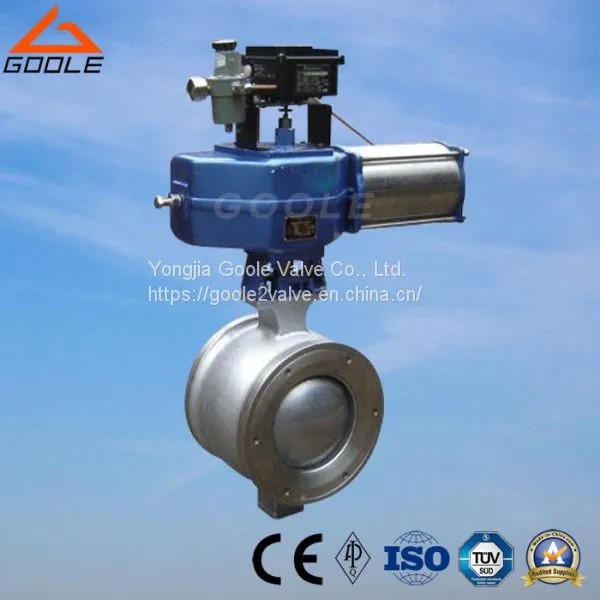

Help CenterPneumatic Control Ball Valve V Type (GHV)
Related Products
-
Electric Actuated Balanced Labyrinth Flow Control Valve (T968Y)US$ 2 - 50MOQ: 10 Pieces -
Jacketed Pneumatic Flow Control Valve (BHTS)US$ 2 - 50MOQ: 10 Pieces
-
Pneumatic Control Valve With Globe Type Single TypeUS$ 2 - 50MOQ: 10 Pieces
-
Manual Operated Balanced Labyrinth Control Valve (T48Y)US$ 2 - 50MOQ: 10 Pieces
-
Globe Type Regulating Valve With Single SeatUS$ 2 - 50MOQ: 10 Pieces
Pneumatic V-port Control ball valve main parameters.
Nominal pressure: PN1.6~6.4MPa
Nominal diameter: 20~400mm
Appliable Temperature : Hard Seal:-40~300ºC
Soft Seal: -40~180ºC
Applicable medium:Water,gas,oil quality and so on.
Driving Means:Manual ,Electric, Worm wheels, Pneumatic
Body materials : WCB, CF8, CF8M, CF3M
Stem: 2Cr13, 304, 316
Rotary angle : 90°
Valve Seat : PTFE, 0Crl, 7Ni4Cu4Nb
Core Material : CF8, CF8M, CF3M.
Pneumatic V-port Control ball valve Product Feature.
1. The shear force between the ball and the metal seat type V incision, especially suitable for containing fiber and small solid particle, pulp and other medium.
2. Fully open flow capacity, small pressure loss, and the media will not deposit in the body cavity.
3. Using a spring-loaded movable seat structure , Preventing the occurrence of ball core and valve seat from jamming or other issues, reliable sealing and long service life.
4. The valve has the advantages of accurate regulation and reliable positioning function, approximately equal percentage flow characteristics, large adjustable range, the maximum adjustable ratio 100:1.
Nominal diameter DN, Rated flow coefficient Kv, Allowable pressure difference.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
