Pneumatic Mechanical Load Tester

Dongguan Hongtu Instrument Co.,Ltd
Pneumatic Mechanical Load Tester thumbnail-1
Pneumatic Mechanical Load Tester thumbnail-2
Pneumatic Mechanical Load Tester thumbnail-3
Pneumatic Mechanical Load Tester thumbnail-4
Pneumatic Mechanical Load Tester photo-1
Pneumatic Mechanical Load Tester photo-2
Pneumatic Mechanical Load Tester photo-3
Pneumatic Mechanical Load Tester photo-4
US$ 1 - 2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hototech
Place of Origin:
China
Model Number:
HTPV-08
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
60 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Hototech
Place of Origin China
Model Number HTPV-08
Power Electronic
Usage Auto Testing Machine

Model: HTPV-08

Name:Mechanical Load Tester

Standard:According to IEC 61215, UL1703, IEC62782 standard requirement

Purpose:

This test is to determine the ability of the module to withstand wind , snow , static or ice loads

Technical specifications:

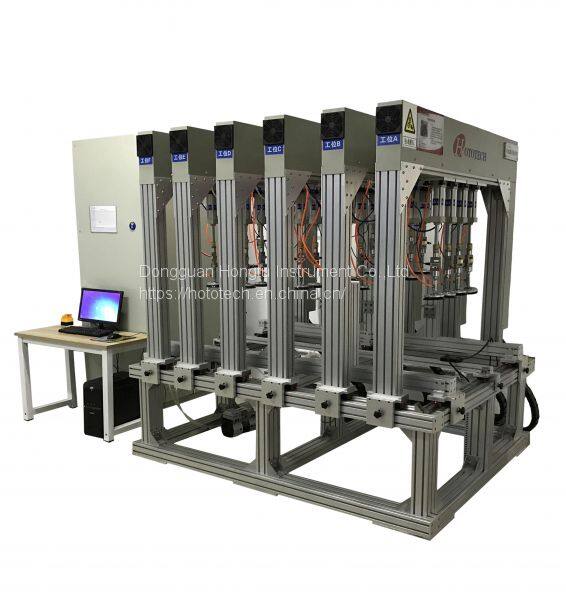

1、The machine table appearance dimension:L 280 × D 180 × H 195 cm

2、Test Positive load 5400Pa, reverse load :2400Pa (Pressure can setting)

3、Cycle times :free setting

4、Dynamic load test frequency:7s±3s

5、Dynamic load:1000Pa，1000tims

6、Pressure control accurate:5%

7、Pneumatic and force value feedback ways :low friction force cylinder,tensile pressure

sensor(accurate 0.1N)

8、Aluminum profile structure feature:platform and support frame aren’t deformation under the suffer force situation

9、The maximum test dimension:2000mm×1000mm (can according to customer’s requirement to customized)

10、Customization test platform fixture, according to determinand install ways to do the adjust

11、Current continuity system :DC power, DC 150V/2A, real-time monitor module inner current continuity

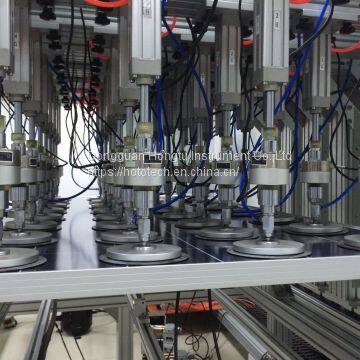

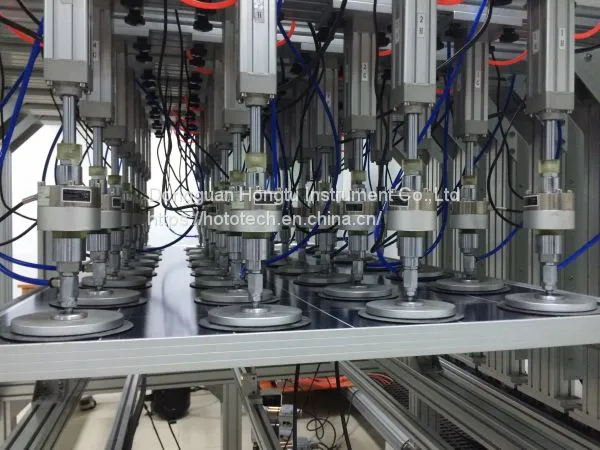

12、Cylinder: 4 groups , in total 8 pieces

   Single the maximum output > 200 kg

   Telescopic stroke:125mm

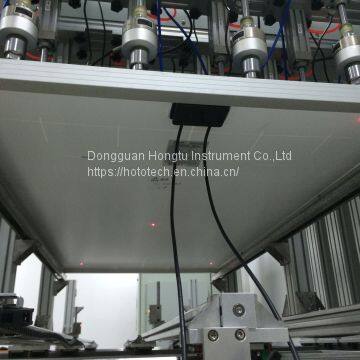

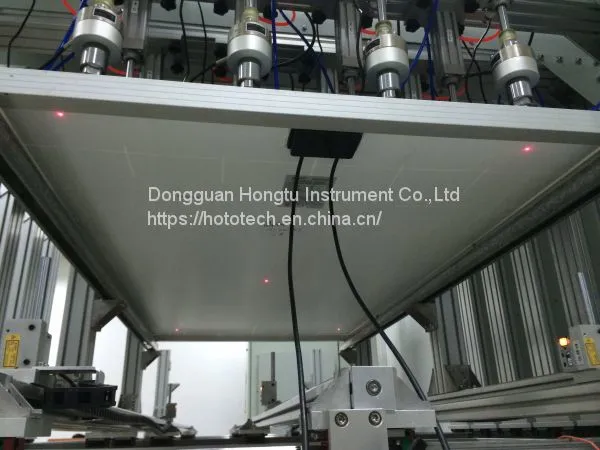

13、Sucker:8 groups , in total 32 pieces

   Sucker diameter:120mm

   Sucker(with cylinder) space horizontal and vertical≤200mm

   Sucker can rotation angle ≥15°

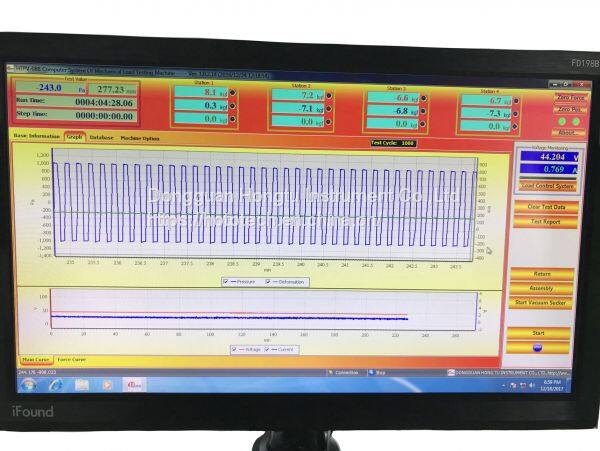

14、Operate system

14.1、Computer control software research and development by HOTOTECH , easy operate and stability

14.2、Software with Chinese and English language , can change each other

14.3、real-time show pressure, deformation, test time, cycle times , current continuity

14.4、Real-time draw and show pressure and deformation value

14.5、Real-time show every cylinder force value and draw force value curve

14.6、Testing data real-time save, inquiry and print

14.7、Testing data export is World, Excel, PDF , JPG etc format

14.8、Fault alarm function


Product Tags: PV pressure test , Solar module pressure test , Dynamic force measurement of photovoltaic panels
