Model:HT-6018-B

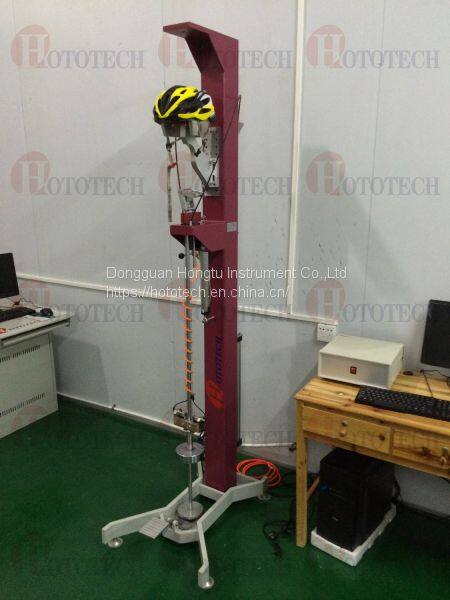

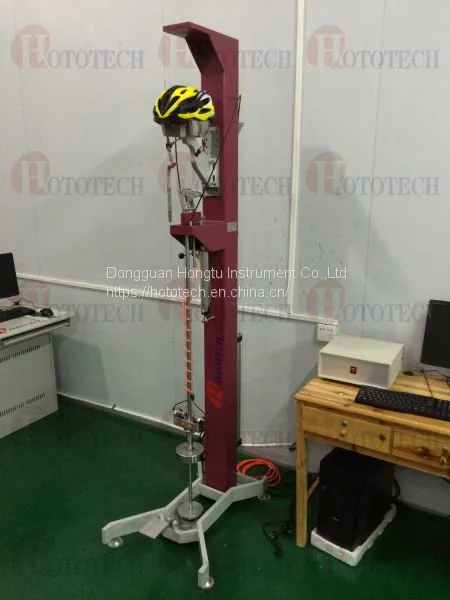

Name: Helmet Strap Retention Testing Machine (dynamic)
Suit standard :According to EN1078 standard requirement
Purpose:
With certain initial load apply on the helmet strap system for a certain length of time, then with a certain weight weights fall from certain height and make the impact force also applied on the strap system, thereby to judge strap system’s resistance tensile performance
Technical parameter:
1.Pneumatic rise device
2.Initial load:5kg
3.Impact weight:4kg
4.Impact height:600mm
5.High accuracy displacement sensor catch the data
6.HT-6018-B special computer software control rise , fall and data calculus
7.Report can save for Word , Excel, PDF, JPG etc format
8.Connect the printer, the report can print
9.Software support data save, history data query , data export/print etc
10.Software with simplified Chinese , traditional Chinese , English language change function
11.Included a set of computer
