Introduction of equipment
Model:HTPV-17
Name:Thermal cycling/Humidity -freeze testing machine (environment chamber)
Standard:According to IEC61215,UL1703 standard requirement
Purpose: To determine the ability of the module to withstand thermal mismatch, fatigue and other stresses caused by repeated changes of temperature
Technical specifications：
1、Temperature range：-40～85℃
2、Temperature fluctuation： ≤±1℃
3、Temperature deviation：≤±1℃
4、Temperature uniformity：≤±2℃
5、Rise and down speed rate：Satisfy IEC 61215 standard requirement
6、Humidity range： 30～98％RH,
7、Relative humidity deviation： ±3％FS；deviation 85±2％RH;90±2％RH
8、Humidity fluctuation： ±2％RH
9、Humidity uniformity： ≤2％RH
10、Thermal cycle testing , module surface’s temperature change rate should not more than 100℃/h limit temperature the lowest maintain time is 10 min, one test is 200 times or 50cycles
11、Placed 12 PCS test module
12、Inner chamber size：approx 1.5×2.5×1.5m (L*W*H)
13、Outer chamber size：approx 2.5×3.0×2.5m (L*W*H)
14、Inner chamber material：Stainless steel
15、Outer chamber material：Stainless steel
16、Control system：automatic calculus
17、Display panel：Touch scree
18、Real-time curve show:can show program set time ,adjust curve sample rate record cycle, show set value curve and actual running valve curve
19、Real-time set display:show perform program number, period of time,the rest of time and cycle times , temperature value and humidity value
20、Communicate interface：RS-485 communicate interface, match on line software can connect to the computer , data save, print and download
21、Humanized operation interface automatic control: Refrigeration compressor, automatic energy valve, temperature, humidity, electric heating, etc.
22、Independent control：The program controller will heat up/Humidification / dehumidification / cooling etc function complete independent control, save the energy
23、Language :Chinese and English , can change each other
24、Power down reset and power down memory function
25、Inner material：SUS#304High temperature resistant high tension stainless steel sheet
26、Outer material：Antirust steel plate + baking finish
27、Thermal insulation material：High density hard PU foam and glass insulation cotton
28、Refrigerant: adopt the newest HFC environmental protection refrigerant
29、Refrigerant valve: automatic switch regulating refrigerant valve
30、Power：380V 60HZ

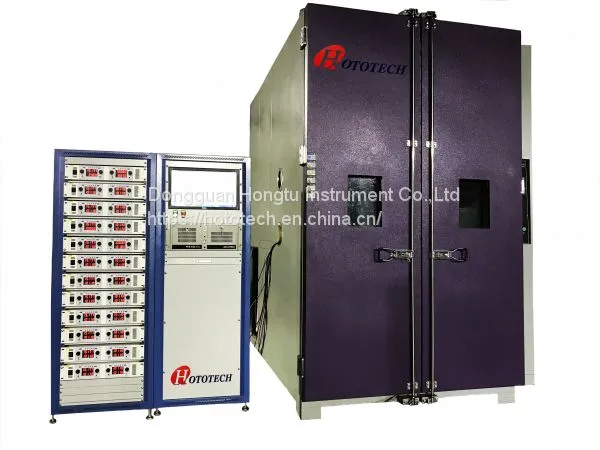

Product shooting（vertical）
Package transportation
----------------------------------------------------------------------------------------
