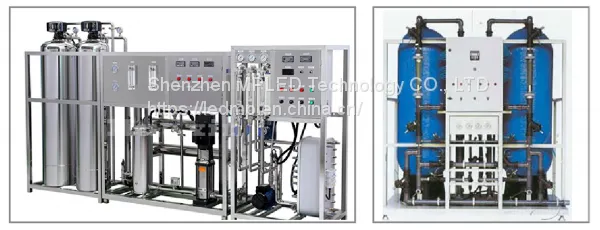

Help CenterSea Water Treatment System (HMJSWRO-1000LPH)
Related Products
Sea water treatment system
1. Breif introduction
Design basis:
Average salinity≤35000ppm. The feed water should comply with the design basis to ensure the output quality.
Output quality:
Conform to the international drinking water standard (TDS≤600ppm)
Guarantee:
The main components (membrane, high pressure pump,high pressure vessel) are guaranteed for one year on the condition that the equipment is properly operated according to the instructions.
2. Equipment details
Output quantity:750L/H(4500GPD)
power supply:380V,50Hz
dimension:1000x800x1500mm
3. Technical route and flow diagram
Sea Water Desalination RO system is composed of pre-treament and RO sea water desalination. The technical route is as below.
Raw water ->Raw water tank -> Raw water pump -> Quartz sand filter -> Active carbon filter-> High pressure pump ->Security filter -> RO equipment->Pure water tank
4.Main Components
F.C.R.O membranes with 99% average salt Rejection;
Quartz sand filter
Activated carbon filter
Anti-scalant dosing
GIANT high pressure Pump;
FRP pressure Vessel;
5 Micron Sediment filter;
Flushing solenoid valve;
Pump exit regulate valve
Motor of high quality
High pressure shut-off device (origin: Italy)
Low pressure shut-off device
Pressure/flow indication
Electric control cabinet, meter for inspecting the water quality
Cleaning system (including cleaning tank)
High pressure pipelines (material: 316SS)
High pressure hose (316SS joint)
Low pressure pipelines (material: Rifeng PAP pipe
