Ultrasonic Level Meter, Water Level Sensor Probe, Water Level Sensor
Description Ultrasonic Level Meter, Water Level Sensor Probe, Water Level Sensor
Ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.

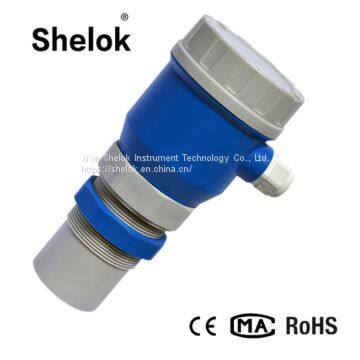

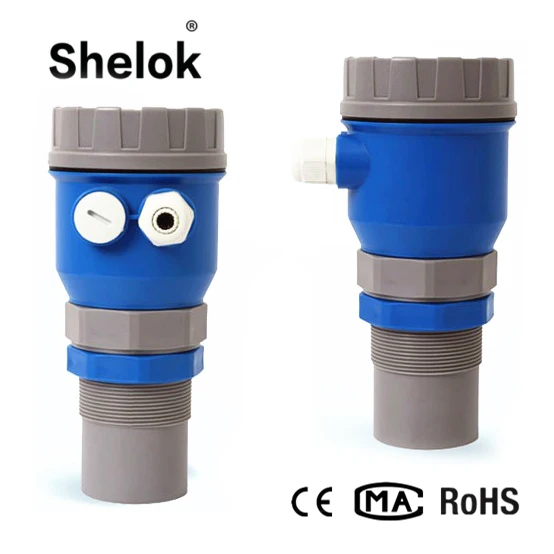

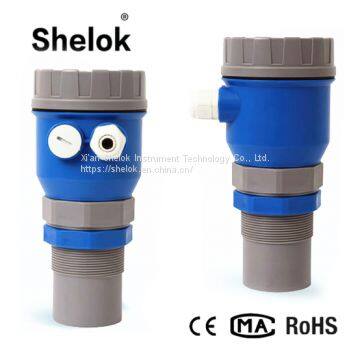

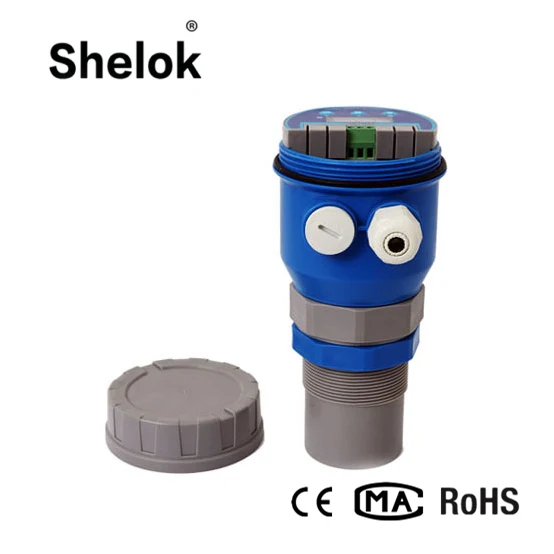

Detailed Images Ultrasonic Level Meter, Water Level Sensor Probe, Water Level Sensor
Specification Ultrasonic Level Meter, Water Level Sensor Probe, Water Level Sensor
Range: 3,8,10,12,15 20m
Blind zone:
Measure error: 0.25%F.S
Display: LED or LCD
Display resolution:1mm
Frequency::20~350KHz
Power: 12-24VDC
Power consumption:
Output (optional):4~20mARL>600Ω(standard)1~5V\1~10VRS485 3 NPN 2 relays (AC: 5A250V DC: 10A24V)
Material:ABS

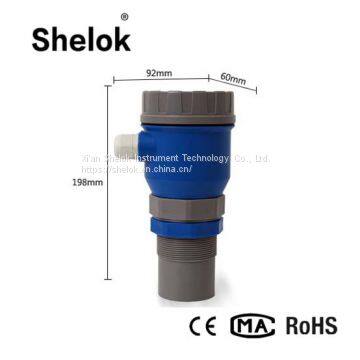

Dimension:Φ92mm×198mm×M60
Electrical interface:M20X1.5
Installation:M60X2 or 61MM
Operating surroundings:normal temperature, normal pressure
Protection degree:IP65(others optional)
Features Ultrasonic Level Meter, Water Level Sensor Probe, Water Level Sensor
DC12-24V wide work voltage
Backup and recovery parameter set
Free adjustment of the range of analog output
Set a filter value to remove
Custom serial port data format
Optional increment/difference distance measurement to measure air space or liquid level
1-15 transmitted pulse intensity depending on working conditions
More choices depend on your requirement, as bellowing:
3 NPN output
2 relay output
Voltage output
RS485output connect with PC
Explosion-proof
Applications Ultrasonic Level Meter, Water Level Sensor Probe, Water Level Sensor
Widely used in petroleum, chemical, water treatment, water conservancy, steel, coal, electricity, aerospace and food processing industries such as Diesel Oil Tank ,water tank and so on., for acid, alkali, salt, corrosion, high temperature, explosion-proof and other fields.
