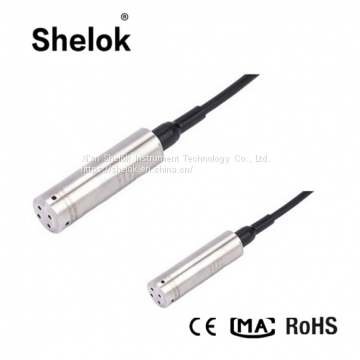

Submersible water level sensor diesel fuel tank level sensor
- 1000 Piece / Pieces per Month
- Port Of China
- T/T L/C Credit Card PayPal Other Cash Escrow
- 10 days
- high accuracy Micro differential pressure gauge for air condition
- Digital Pressure Gauge Pressure control switch manometer
- hand water pump pressure calibrator with low price
- Mini Air Pressure Gauges/Bar Mpa Digital Differential Pressure Gauges
- Non Contact ultrasonic liquid fuel level sensor meter
- hot sale Portable Signal Generator and Electricity Calibrator
Product Details
Brand Name: | SHELOK | Place of Origin: | China | Model Number: | SLK-200 |
Product Description
Application of Submersible water level sensor diesel fuel tank level sensor :
4-20ma Input Liquid Level transmitter Water Level Sensor of the water tank, oil level in oil tank, water sink (oil sink), wells, water towers, river, reservoir, sewage treatment equipment, sea water, groundwater monitoring, etc.
Technical Data of Submersible water level sensor diesel fuel tank level sensor :
Ordering guide
SLK-200 | Input Liquid Level transmitter | ||||||||
Code | Measurement Range | ||||||||
1 | (0-1)mH2O | ||||||||
2 | (0-5)mH2O | ||||||||
T | Special specification | ||||||||
Code | Accuracy grade | ||||||||
1 | 0.2 | ||||||||
2 | 0.5 | ||||||||
Code | Explosion proof type | ||||||||
M | Explosion proof type | ||||||||
N | Standard type | ||||||||
I | EX iaⅡCT6 | ||||||||
D | EX dⅡBT4 | ||||||||
Code | Display or not | ||||||||
M0 | display | ||||||||
M1 | None | ||||||||
M2 | LCD digital display | ||||||||
Code | Output | ||||||||
E | 4~20mA | ||||||||
V | 0-5V | ||||||||
S | 0-10V | ||||||||
T | Special specification | ||||||||
Code | Probe material | ||||||||
A1 | SUS304 | ||||||||
A2 | SUS316L | ||||||||
Code | Material | ||||||||
B | Cable sheath material | ||||||||
B1 | Polyethylene rubber | ||||||||
B2 | PTFE | ||||||||
B3 | Teflon | ||||||||
Code | Power supply | ||||||||
V1 | 24V DC | ||||||||
V2 | Special specification |

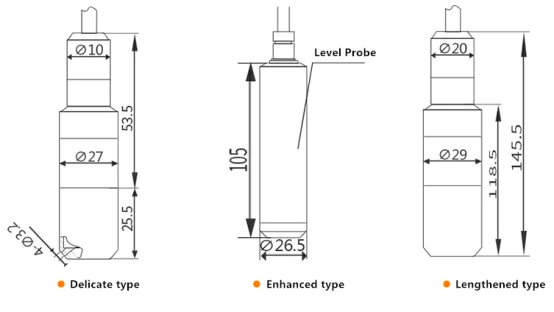

External dimension
Connection diagram
Installation notice
If you need thisSubmersible water level sensor diesel fuel tank level sensor , Please contact me
