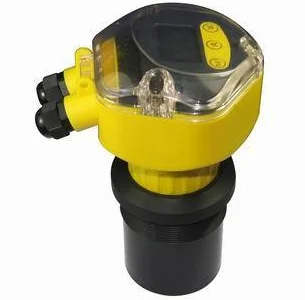

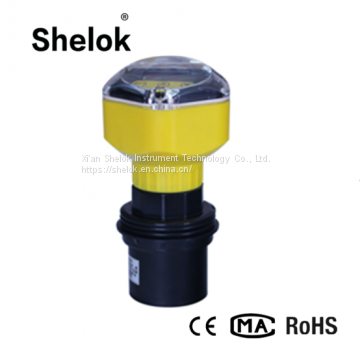

Non Contact Ultrasonic Liquid Fuel Level Sensor Meter

Level Range:

Economic Type: 5M, 10M, 12M.

Standard Type: 5M, 10M, 15M, 20M,30M, 50M.

5M, 10M, 15M, 20M,30M, 50M, 70M.

Accuracy:

0.25%-0.5%F.S

0.25%-0.5%F.S

Blind Zone:

0.2-0.6m

0.2-0.6m

Working Pressure:

2 Bar (Explore Proof Type is 5 Bar)

2 Bar (Explore Proof Type is 5 Bar)

Resolution:

3mm or 0.1%F.S (Max of them)

3mm or 0.1%F.S (Max of them)

Display:

English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection.

English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection.

Analog Output:

4~20mA/750Ω load resistance (2 wire)

4~20mA/250Ω load resistance (4 wire)

4~20mA/750Ω load resistance

NA

Relay /Alarm Output:

AC 250V/ 8A;

DC 30V/ 5A;

State programmable (optional for 4 wire)

AC 250V/ 8A;

DC 30V/ 5A;

State programmable (optional)

Power Supply:

24VDC       120mA

12VDC (available to offer power by motor, battery or solar power and so on.)

220VAC+15%  50Hz

24VDC       120mA

12VDC (available to offer power by motor, battery or solar power and so on.)

Environment Temperature:

Meter: -20~+60°C

Sensor: -20~+80°C

Meter: -20~+60°C

Sensor: -20~+80°C

Communication:

RS485 Communications (optional)

RS485 Communications (optional)

Explore Proof:

Ex(ia)ⅡCT6

Ex(ia)ⅡCT6

Water Proof:

Economic Type: IP65

Standard Type: IP66

Meter: IP65

Sensor: IP68

Cable of Sensor:

Null

Standard: 10 Meters, Max to 200 Meters

Sensor Installation:

By level range and model code

By level range and model code

Store Request:

Temperature: -20~+80°C

Pressure: atmospheric pressure

Humidity: ≤90%RH

Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.

Temperature: -20~+80°C

Pressure: atmospheric pressure

Humidity: ≤90%RH

Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.
