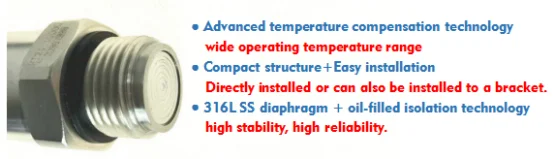

Stainless Steel Flush Clamp Membrane Pressure Transmitter
Application
Flush Membrane Pressure Transmitter in mechanical engineering applications (eg: polyurethane equipment), medical applications (eg: pharmaceutical and other), food Machinery and beverage processing industry, and general industrial control field (eg: paper, paint, etc.).
Technical Data
Range |
0 ~ 1MPa ~ 160MPa (strain gauge) 0 ~ 0.1MPa ~ 25MPa (diffused silicon Front) |
Overall accuracy |
0.25% FS; 0.5% FS; 1% FS |
Output signal |
4-20mA (two-wire), 0-5V; 0-10V (three-wire) |
Supply voltage |
24 (12 ~ 36) VDC, |
Pressure connection |
G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, etc. (can be customized) |
Electrical connection |
Hirschmann connector (DIN), M12 four-pin connector, directly lead, aviation plug-ins (available on request) |
Hysteresis & non-linear & Repeatability: |
≤ ± 0.5% FS |
Comprehensive error (including temperature drift) |
≤ ± 1% FS (-20 ~ 80 °C) |
Long-term stability: |
≤ ± 0.25% FS 1 Year |
Medium temperature range: |
-20 ~ 110 °C |
Storage temperature range: |
-40 ~ 85 °C |
Temperature drift (zero+sensitivity) |
≤ ± 0.05% FS / °C |
Load capacity |
≥ [(supply voltage -7.5V) /0.02A] Ω |
Response time |
≤5mS |
Housing material |
stainless steel |
Measuring media |
compatible with stainless steel gas and liquid |
Overload pressure (for 1 minute) |
1.35-fold (range ≤15MPa) 1.2-fold (range ≥15MPa) |
Shock pressure (for 0.1 seconds) |
2-fold (range ≤10MPa) 1.5-fold (range ≥10MPa) |
Mechanical life |
≥500 million times the pressure cycle |
Zero offset |
≤ ± 0.1mA |
Full-scale offset |
≤ ± 0.1mA |
Reverse polarity protection |
≥15S |

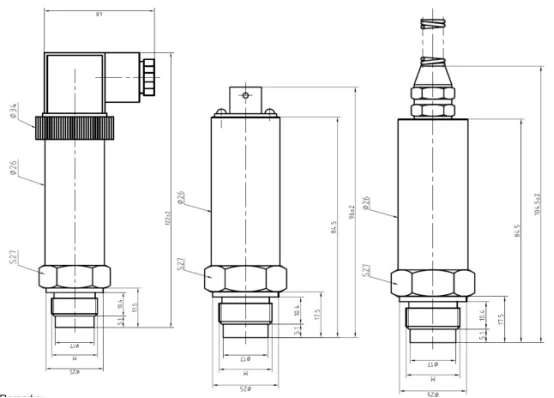

External Dimension
