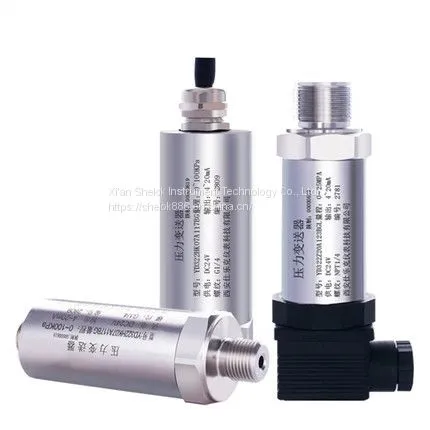

The Best pressure transmitter cost 1 to 5v 0-10 bar with low price
- 1000 Piece / Pieces per Month
- tianjin
- T/T Credit Card PayPal Other Escrow
- 7 days
Product Details
Brand Name: | shelok | Place of Origin: | China | Model Number: | SLK -31F |
Usage: | Pressure Sensor | Theory: | Other | Output: | Digital Sensor |
Product Description
Descripition The Best pressure transmitter cost 1 to 5v 0-10 bar with low price
pressure sensor using imported vacuum diffused silicon pressure sensing chip, all stainless
steel seal structure, with good moisture resistance and excellent media compatibility.Products with
high resolution and accuracy, long term stability.Suitable for medium pressure and vacuum of
weak measurement and control applications, such asbottles of paint, beverages and other liquids, cans material leak.
Specification The Best pressure transmitter cost 1 to 5v 0-10 bar with low price
1.Range: 0 ~ -1, -10, -50, -100KPa, -100KPa, -50KPa ~ 0,
2.Overall accuracy: 0.1% FS, 0.2% FS, 0.5% FS
3.Output signal: 4 ~ 20mA (two-wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire)
4.Supply voltage: 24DCV (9 ~ 36DCV)
5.Medium temperature: -20 ~ 85 ℃
6.Ambient temperature: room temperature (-20 ~ 85 ℃)
7.Load Resistance: Current Output: maximum 800Ω; voltage output: more than 50KΩ
8.Insulation resistance: more than 2000MΩ / 50VDC
9.Response time: <1ms
10.Sealing class: IP65
11.Long-term stability: 0.1% FS / year
12.Vibration effects: in the mechanical vibration frequency 20Hz~1000Hz, the output changes less than 0.1% FS
13.Electrical connection: Hirschmann connector (other optional)
14.Threaded connection: M20 × 1.5, other threads can be designed based on customer requirement
Accuracy | 0.25%FS |
Output | 4-20mA (two-wire), 0-5V; 0-10V (three-wire) |
Range | 0 ~ 1MPa ~ 160MPa |
Pressure connection | G1/4, G1/2, 1/2NPT, 1/4NPT, M12 * 1.5, etc. (can be customized) |
Medium temperature range | -20 ~ 110 C |
Response time | ≤5mS |
Product Name | The Best pressure transmitter cost 1 to 5v 0-10 bar with low price |
Product Keywords | pressure transmitter cost,pressure transmitter 1 to 5v,pressure transmitter 0-10 bar |
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Standard export carton packing.
DELIVERY TIME:3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
