high frequency Inductive Proximity swith capacitive sensorDescription high frequency Inductive Proximity swith capacitive sensorIn all areas of industry in which sensors are affected by harsh environmental influences such as dust, dirt, smoke or steam, ultrasonic sensors are the ideal solution for contactless position and distance measurement. They can be installed in the smallest spaces and configured by "Teach-In". Objects in a wide range of materials (including transparent) can be detected with millimetre precision, regardless of their shape and colour.
Features of high frequency Inductive Proximity swith capacitive sensor
1 Programmable cable interface using the PC software for proximity switch parameter settings
2 Current and voltage outputs
3 Synchronization
4 You can adjust the sensitivity of the acoustic energy and
5 Temperature Compensation
high frequency Inductive Proximity swith capacitive sensor

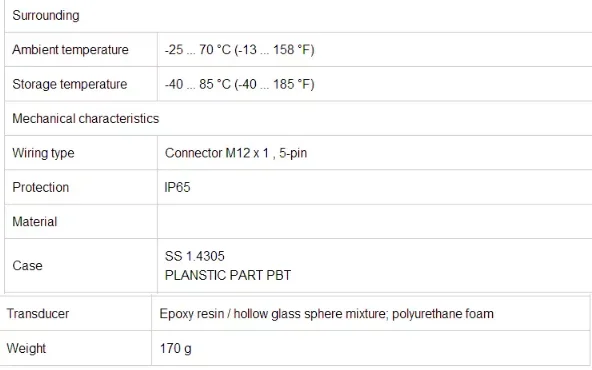

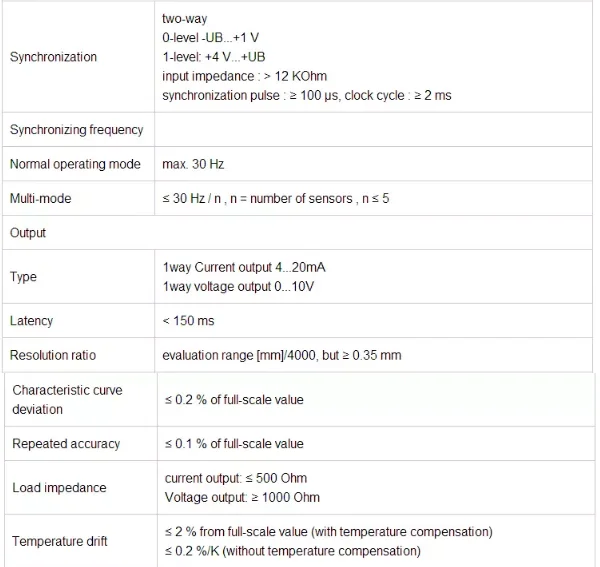

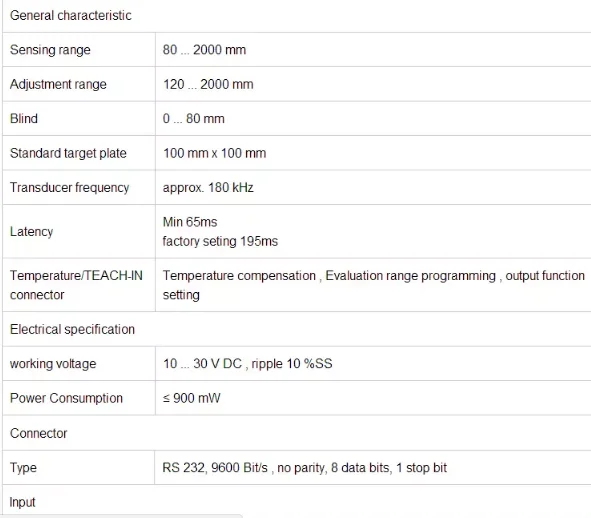

Specification high frequency Inductive Proximity swith capacitive sensor
1 Detection range: 15cm - 200cm;
2 Blind: 15cm;
3 Accuracy:
4 Transducer frequency: 180Khz;
5 Transducers emitting angle: 14 degrees;
6 Operating voltage: 12v or 24v;
7 Operating current: less than 50mA;
8 Output current :4 - 20mA (corresponding to 15-200cm)
9 Shape: 30mm diameter threaded pipe, length 80mm
Company Information:
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
