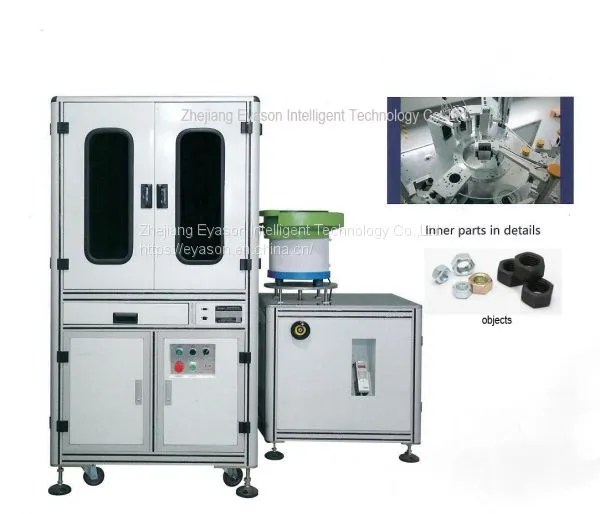

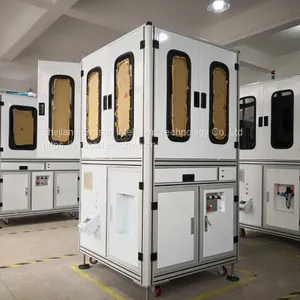

Automatic Optical Bolts Nuts Fasteners Sorting Machine IntroductionUS$ 50000 - 100000MOQ: 1 Set
Optical system : high speed CCD, top and side cameras and backlights
Vision processing system S/W : Accuvision’s Pro-V II
Parts feeding system : Feeding bowel / Good-NG sorting output bins
Custom made machine : by ODM biz model, spec are to be confirmed
Inspection speed : depends on feeding system, up to 1,000 pcs / minute
Machine dimension : 1,065 mm (L) * 860 mm (W) * 1,855mm (H)
Working platform height : 880 mm
Power requirement : AC 220 – 240 V / 50Hz
Computer : Industrial computer / Control panel set / Mitsubishi Servo Motor
Inspection criteria

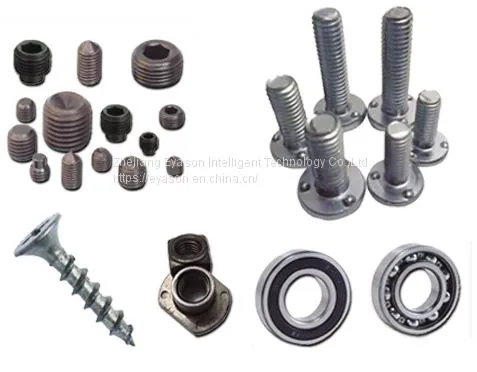

Criteria : fastener parts head width / height / pinhole depth / recess shape / burr in recess/ spiral thread /
thread I.D. / thread E.D./ neck length / shank vertical / screw length / first thread / drunk thread / head
crack,plating, insert nut thread, burr ,dimension / etc.
Add-on features : Statistic inspection data analysis / defective analysis / SPC charts / report data output
by Word or Excel file format / support remote management / CAI computer aided instruction / user friendly
GUI graphic user interface / advanced user defined GUI parameters
Options : by user defined for multiple CCD inspection features
Warranty : 12 months
