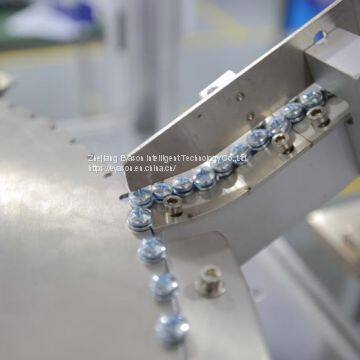

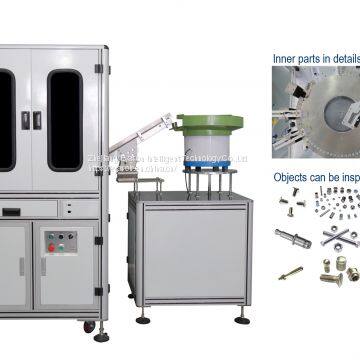

Help CenterRotary Disk Sorting Machine for Long Screws
Related Products
-
Auto Optical Fastener and Nuts Sorting MachinesUS$ 4500 - 100000MOQ: 1 Set -
Introduction of Optical Sorting MachineUS$ 50000 - 100000MOQ: 1 Set
-
Glass Optical Standard Sorting EquipmentUS$ 50000 - 100000MOQ: 1 Set
-
Automatic Optical Bolts Nuts Fasteners Sorting Machine IntroductionUS$ 50000 - 100000MOQ: 1 Set
-
Auto Optical Fastener and Nuts Inspection MachinesUS$ 50000 - 100000MOQ: 1 Set
Feature:
For M8~M16 screws and bolts, under head length 125~250mm
Available for 2~7 cameras
Optional: wheel crack checking system (LS-1501) for head crack inspection
Optional: Bending checking module
Optional: 360∘rotation module for thread damage inspection
Optional: two kinds of Eddy current systems:
1. For head open crack inspection
2. Material mix-up or with/without heat-treatment

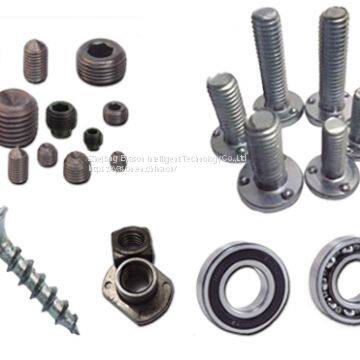

Sorting items:
• Screw-head height, width • Recess depth • Pinhole Excess Material
• Ineffective thread length • Minor Thread Diameter • Feature Angle
• Major Thread Diameter • Pitch Distance • Feature No.
• Bevel Thread • Screw Length • Feature Similarity
• Cone Point • Zinc:Yes or No（Head Top View） • Feature Length
• Pinhole Alignment • Head Crack • AF/AC
• Head Mark • Roundness • Material Mix-up
Inner Roundness • Inner Concentricity • Broken pin
• Inner Excess Material • Shorten AF • Deformed Thread
• Feature-Center Distance
Optional Function:
• Bottom Sorting
• 360° Thread Damage • Head Wheel Crack • Screw Bending (Multi-Images)
Specifications:
• Wire Diameter:φ8~16mm • Head Width:φ10~35mm
• Length Under Head:60~250mm • Sorting Precision:±1pixel
• Head Height: 5~30mm •Sorting Speed:60~100/PPM
