The RY001 is a flat part inspection system (nuts, washers, bushings, rings, etc.).

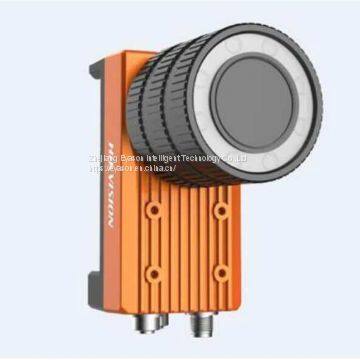

It’s a high-speed vision based measuring machine that uses a series of front and
back lit cameras to calculate a part’s height, profile and inner/outer diameters.
Microsoft Windows based software makes part setup easy, and allows for part storage
and retrieval. Optional cameras are available to check for internal threads and surface
imperfections. And optional Eddy Current lets you check for metallurgical defects such as
cracks, seams, and missing features (like weld nibs and chamfers) along with plating or
hardness variations.360° Internal Thread Inspection – Gi incorporates hole inspection
optics to specifically image and measure both the bottom of a hole and its vertical walls.
This allows great detail of I.D. threads and the detection of very small defects like;
Chips in threads, weld splatter, a single damaged thread, torn threads, reamed threads,
short or missing thread(s).
? Measures Flat Parts
? Windows Software
? Optional Vision and Eddy Current
? Up to 500 Parts Per Minute

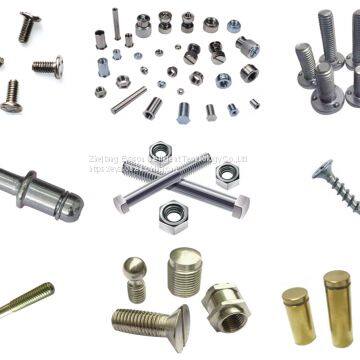

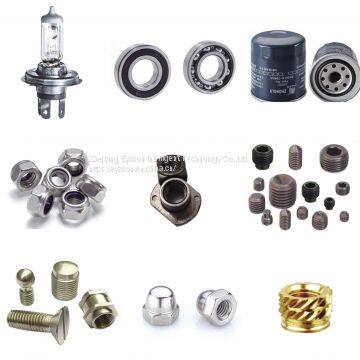

flat parts that can be inspectedVision can be added to detect defects like
missing internal threads, nylon ring presence, and missing crimp.
The RY001 is the perfect machine for flat part manufacturers whose goal is zero.
