Help CenterGravure Cylinder Grinder Gravure Cylinder Grinding Machine Grinding Stone Cylinder Finishing Machine
Product Spotlights
Fully automatic lubrication
Easy operation
Stainless steel waterproof shield
Related Products
-
Gravure Cylinder Copper Polishing Machine Copper Polisher Buffing Machine Gravure Cylinder Polishing ProcessNegotiableMOQ: 1 Set -
Grinding Machine Brushing Machine for Embossing Cylinder Embossing RollerNegotiableMOQ: 1 Set
-
Sand Blasting Machine for Embossing Cylinder Embossing Roller Embossing RollNegotiableMOQ: 1 Set
-
Spray Coating Machine for Embossing Cylinder Embossing Roller Embossing RollNegotiableMOQ: 1 Set
-
Ring Coating Machine for Embossing Cylinder Embossing Roller Embossing RollNegotiableMOQ: 1 Set

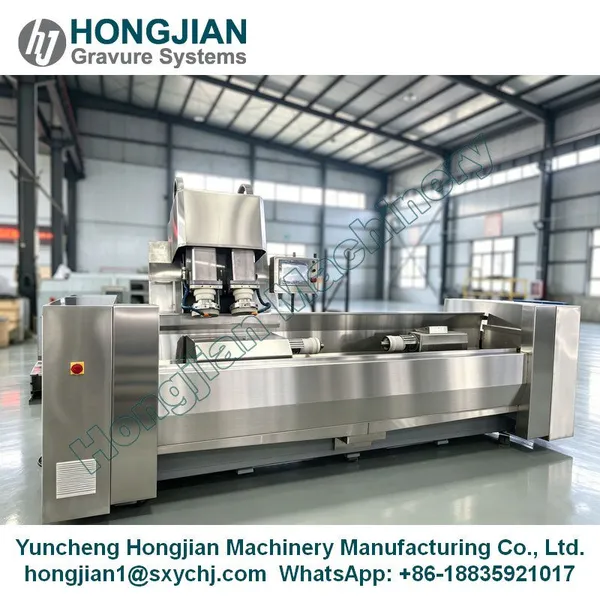

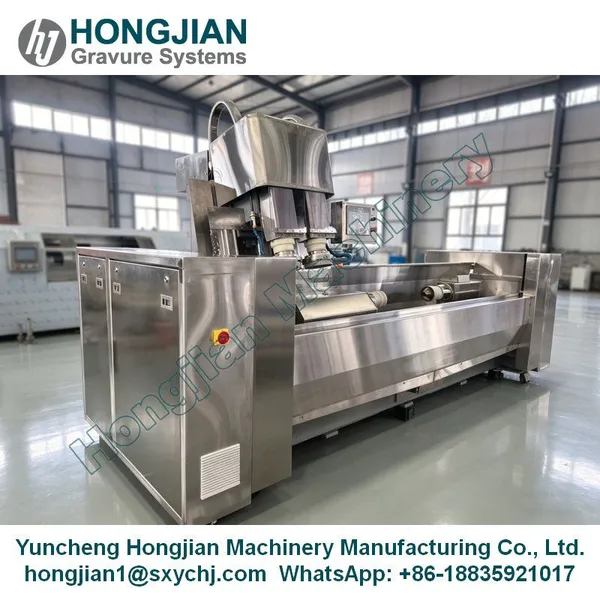

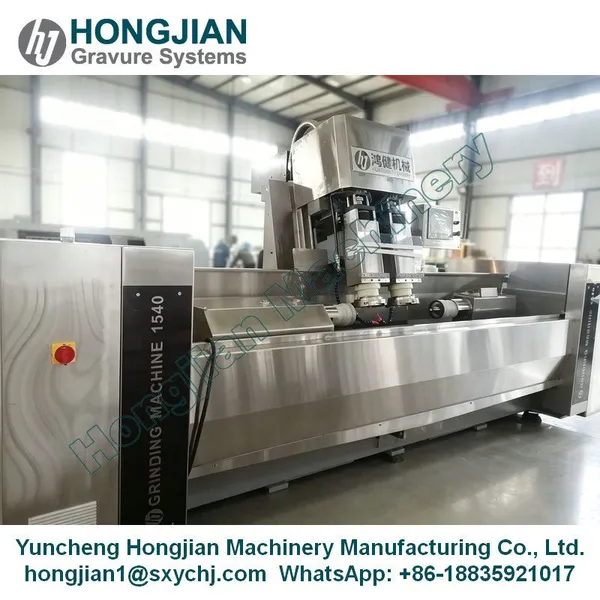

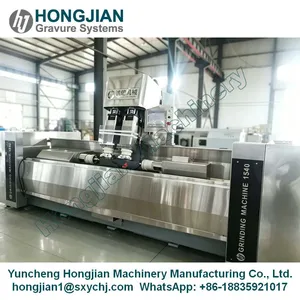

HJ-YMJ Copper Grinding Machine is a self-developed automatic numerical control model. The grinding performance is stable and efficient. It adopts the Germany electronic parts, fully ensuring the quality and long service life of the machine.
FEATURES:
1. The grinding stone has good rotation and tenacity.
2. The grinding head has flexible lifting and reliable movement.
3. The grinding head has reliable guiding, stable operation, good resilience, which is ensured by the professional spring machine.
4. The good multiple-pulleys are provided by reliable factories.
5. The axle of head box uses the traditional structure and the rotating parts uses the imported precise double bearings, ensuring the precise rotation and superior performance.
6. The dead centre is the anti-sliding one, preventing rollers when grinding.
7. The live centre is highly precise one, ensuring rotating precision.
8. The ABB linear rail is precise, ensuring the flexible and reliable movement of grinding head.
9. The T screw is accurate, ensuring the reliable output of power.
10. Advanced PLC and transducer ensure the advantages such as high automation, reliable performance and long service life.
Technical Parameters:
| Cylinder diameter: | φ108-350 mm |
| Cylinder length: | 400-1300 mm |
| Cylinder rotation speed: | 60-300 rpm |
| Grinding head to-and-fro speed: | 520-800 mm/min |
| Grinding head up/down speed: | 300 mm/min |
| Grinding head rotation speed: | 500-1100 rpm |
| Pressure adjustment range: | 0-60 kg |
| Dimension (L x W x H): | 3300 x 1800 x 1900 mm |
| Power Supply: | 9.5 KW |
| Weight: | 4500 KG |
| Max.cylinder weight: | 150 KG |
| Accessories: | 1 cone; 3 pcs stone with adhesive; 6 grinding stone trays |
| Option: | Fittings for installing cylinder |
| Customer Responsibility: | Air compressor(2kg/cm2) |
